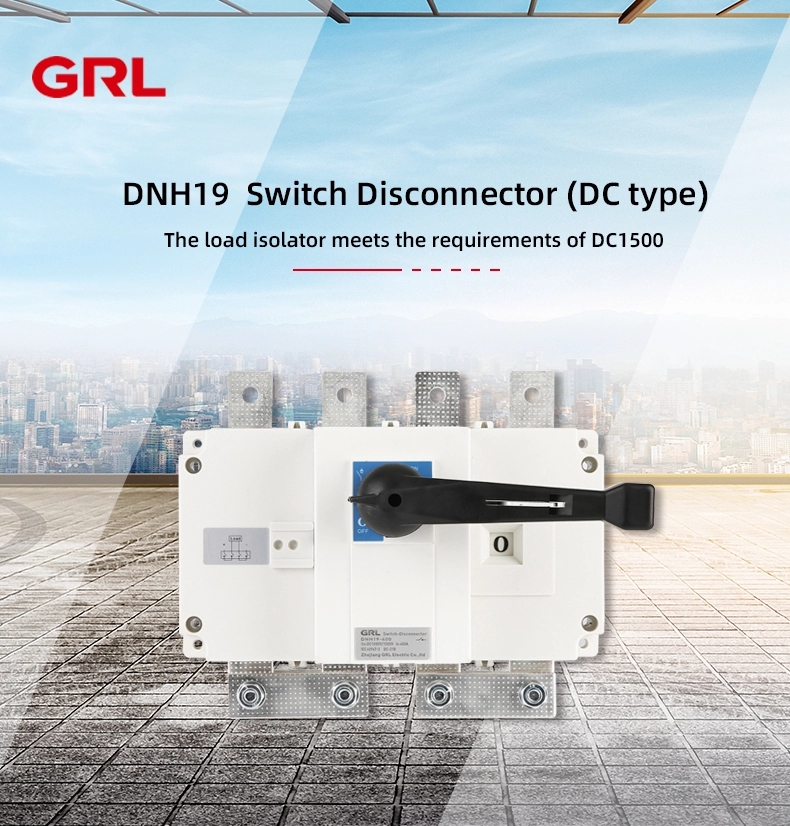

GRL DNH19 160A 250A 630A 1500V DC Load Breaker Switch Disconnector
Inquire NowDescription
The GRL DNH19 series DC Load Breaker Switch Disconnector is engineered to deliver reliable performance for disconnecting and connecting DC circuits under load. Designed with versatility in mind, it caters specifically to photovoltaic systems, supporting a rated voltage of up to 1500VDC and a maximum current of 630A. With an emphasis on safety and functionality, this disconnector features a flame retardant V0 grade material and T2 grade copper, ensuring durability and high performance.
Its innovative design supports various current shells, provides installation flexibility with options for both inside and outside cabinet setups, and includes an observation window for clear disconnection indication. The contact embossing design enhances the contact surface, thereby boosting performance and reliability. A handle with a lock function further underscores the safety measures incorporated into this essential electrical component.

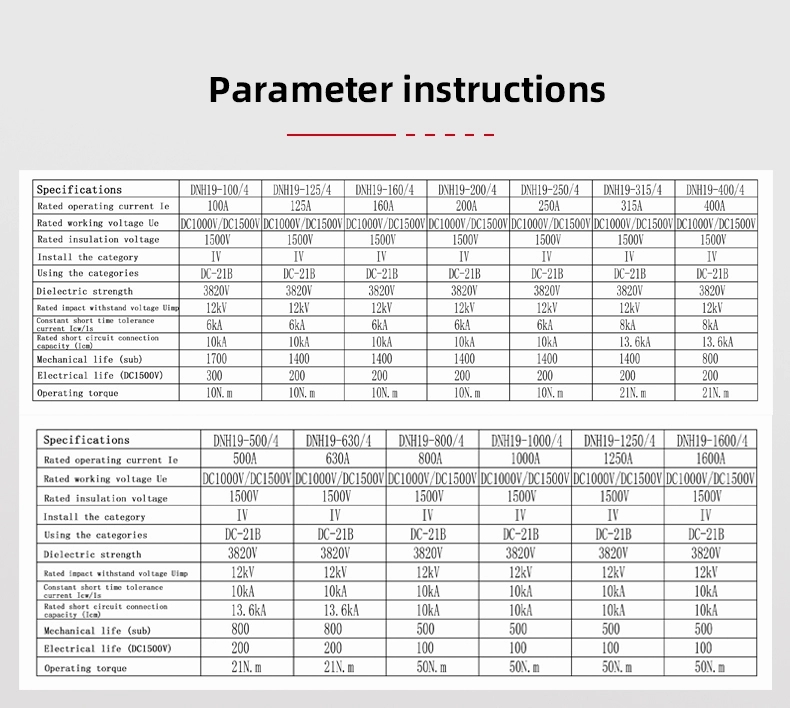

Specifications
| Attribute | Details |
|---|---|
| Rated Voltage | 1500VDC |
| Maximum Current | 630A |
| Material | Flame Retardant V0 Grade Material, T2 Grade Copper |
| Installation Methods | Inside or Outside Cabinet |
| Safety Features | Observation Window, Disconnection Mark, Locking Handle |
Additional Information
- Supports various current shells for customized solutions.
- Contact embossing design to improve performance.
