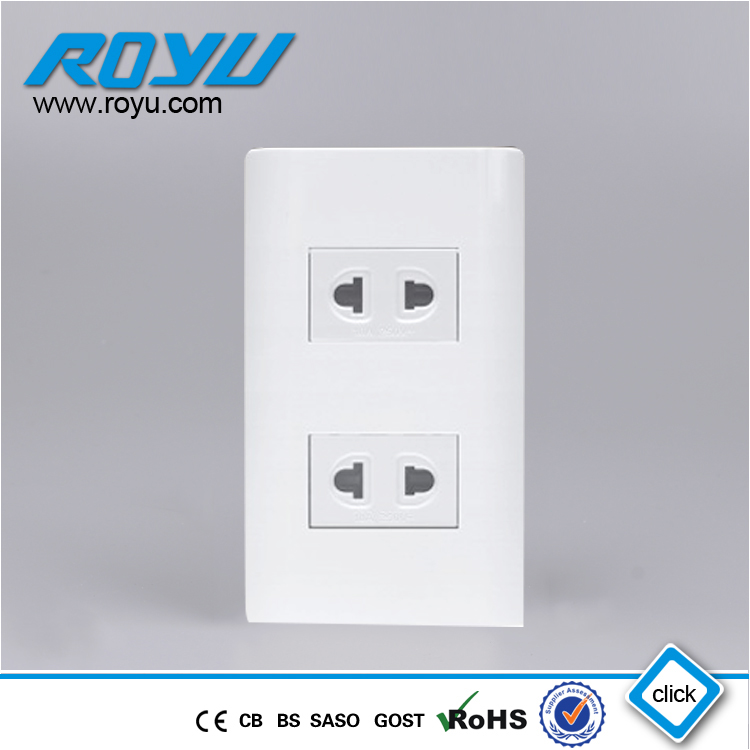

Grounding duplex universal receptacle
Inquire NowDescription
The Grounding Duplex Universal Receptacle is designed for both safety and performance, featuring high-quality components that ensure reliability and durability. The switch contacts are crafted from premium silver alloy, which exhibits excellent resistance to electric arcs and melting welds, guaranteeing over 40,000 on-off operations. Additionally, the sockets are made of phosphor bronze, known for its superior electrical conductivity and long-lasting elasticity, making it an ideal choice for reliable electrical connections in various settings.
Specifications
| Attribute | Details |
|---|---|
| Outline Size | 120 x 74 x 32 mm |
| Installation Size | 60 mm |
| Material | PC POM PA66 |
| Copper Type | QSn5.6-0.1 H62 Hpb59 |
Additional Information
Switch Specification:
| Specification | Value |
|---|---|
| Lifetime | ≥40,000 |
| Heat-resistant | 100°C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
Socket Specification:
| Specification | Value |
|---|---|
| Lifetime | ≥5,000 |
| Heat-resistant | 100°C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
| Electric Strength | 2000 V ~ 1 min |
