GTLZ BIMETAL PIN LUG
Inquire NowDescription
The GTLZ Bimetal Pin Lug is designed for seamless transition connections between aluminum cables or aluminum alloy cables and the copper ends of mini circuit breakers in low voltage applications. This high-quality connector ensures reliability and efficiency in electrical systems, providing a robust solution for various electrical installations.
Application: Ideal for connecting aluminum or aluminum alloy cables with copper terminals in low voltage settings, ensuring secure and effective electrical connections.
Material: Composed of high-grade materials with Aluminum content ≥ 99.5% and Copper content ≥ 99.9% to guarantee optimal conductivity and performance.
Features:
- Oil blocking structure for enhanced durability
- Friction welded for superior strength
- Prefilled with jointing compound for improved connectivity
- Cylinder copper pin for effective electrical performance
- Clear markings on the barrel to indicate the correct crimping location, compatible with Melec standard crimping die
Standard: IEC61238-1:2003

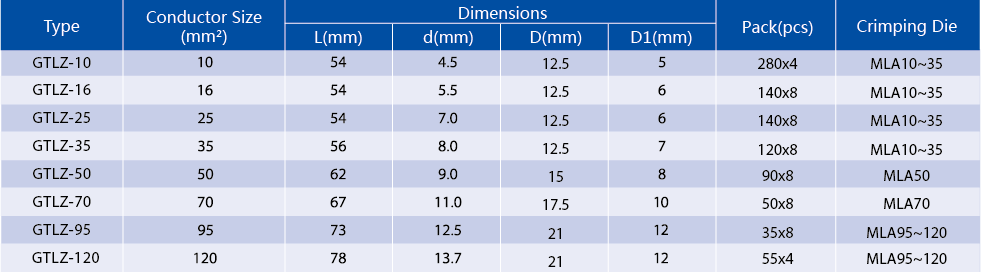

Specifications
| Attribute | Details |
|---|---|
| Material | Aluminum ≥ 99.5%, Copper ≥ 99.9% |
| Application | Low voltage aluminum to copper connections |
| Features | Oil blocking, friction welded, prefilled with jointing compound |
| Standard Compliance | IEC61238-1:2003 |
Additional Information
For optimal performance, ensure that the connections are made in accordance with the specified crimping techniques and standards. Regular inspection is recommended to maintain the integrity of the connections over time.
