1.800W Motor-The new magnetic steel design was adopted to optimize the winding mode and winding density of the internal copper wire, and the performance was significantly improved.
2.48V20AH Lithium Battery-The range is up to 50 kilometers, which meets the daily commuting needs.The battery is put into the seat cushion of the car body to minimize the risk of battery theft.
3.2.75-10/14*2.75 Explosion-Proof Vacuum Tire-Using high quality rubber formula, can better fit the ground, better grip, effectively shorten the braking distance of high elastic rubber.
4.9 Cube Controller-Lithium battery electric motorcycle special controller, perfect match with the battery, motor, vehicle.
5.Multiple shock absorption systems-The front and rear parts of the body are equipped with efficient shock absorbers to greatly filter the vibration feeling of potholed road surface, which makes riding more comfortable.
6.Front and rear double drum brake design-Emergency brake can also be sensitive and smooth.

1.Dimensions:

Length×Width×Height 1600mm ×675mm ×1040mm

Wheelbase 1160mm

Min.Ground Clearance 150mm

Seating Height 750mm

2.Framework:

Front Shock Absorber Oil Damping Direct Acting Shock Absorber

Rear Shock Absorber Oil Damping Direct Acting Shock Absorber

Front/Reae Tire Spec 2.75-10 front Rim:2.15-10 rear rim:2.15-10

Front Braking Mode Drum brake 110mm / hand brake

Rear Braking Mode Drum brake 110mm / hand brake

Swinarm Steel

Frame material High quality carbon steel

Max payload 150Kg

3.Power System:

Maxium Speed 25 Km/h

Motortype Hub motor

Rated power 800W

MAX torque 65N.M

Maximum discharge current 15A

Motor Control Solution FOC

Maximum output phase current 60A

4.Battery:

Battery Unit Lithium Battery

Voltage 48V

Capacity 20Ah

Standard Charging Current 5A

Standard Discharging Current 15A

Max.Discharging Current 25A

5.Electrical System:

LED Headlinght

LED Turning Light

LED Tail Light

LED Braking Light

LCD Dashboard

6.Performance:

Climbing 10°

Accelerate（0-65） 8S

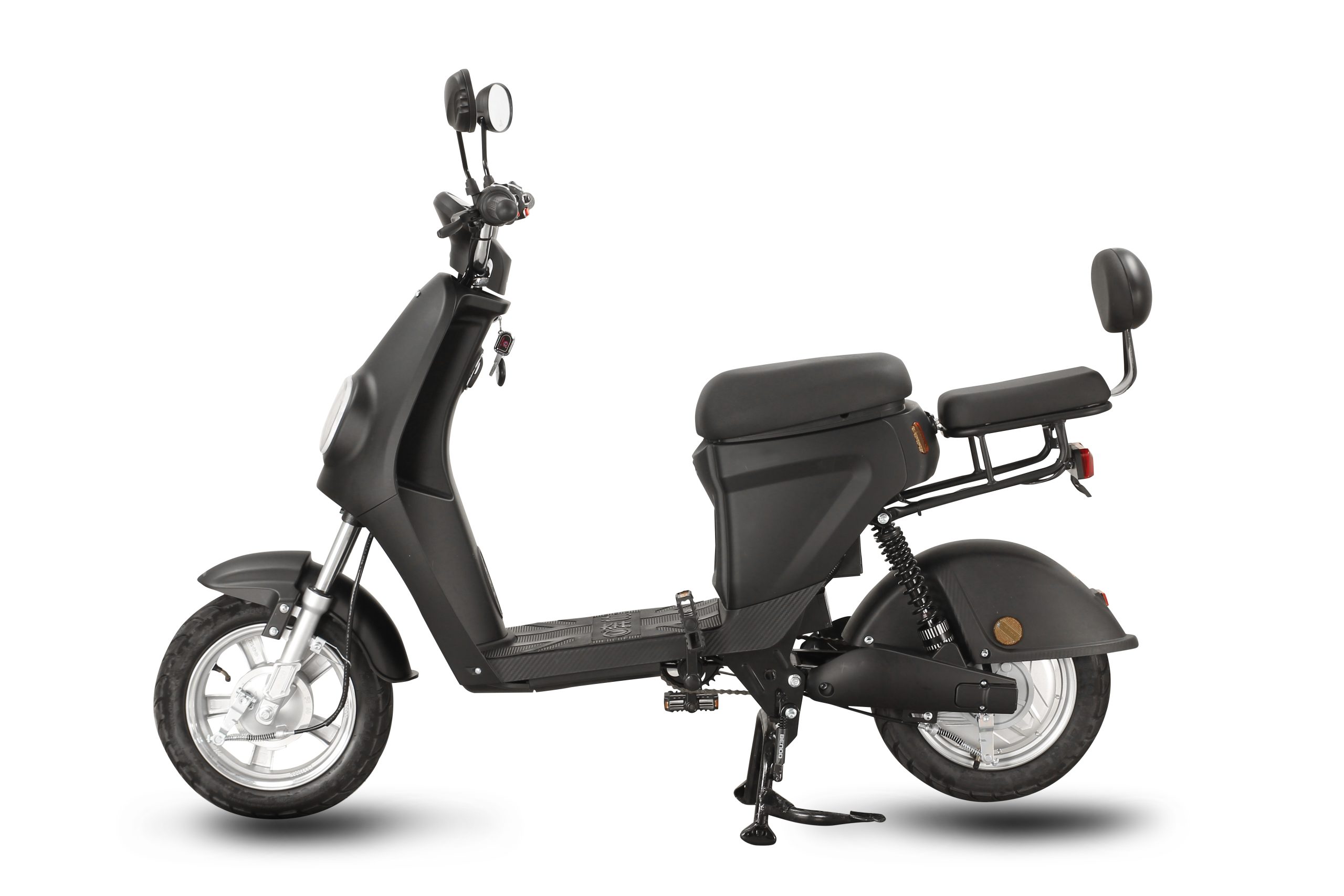

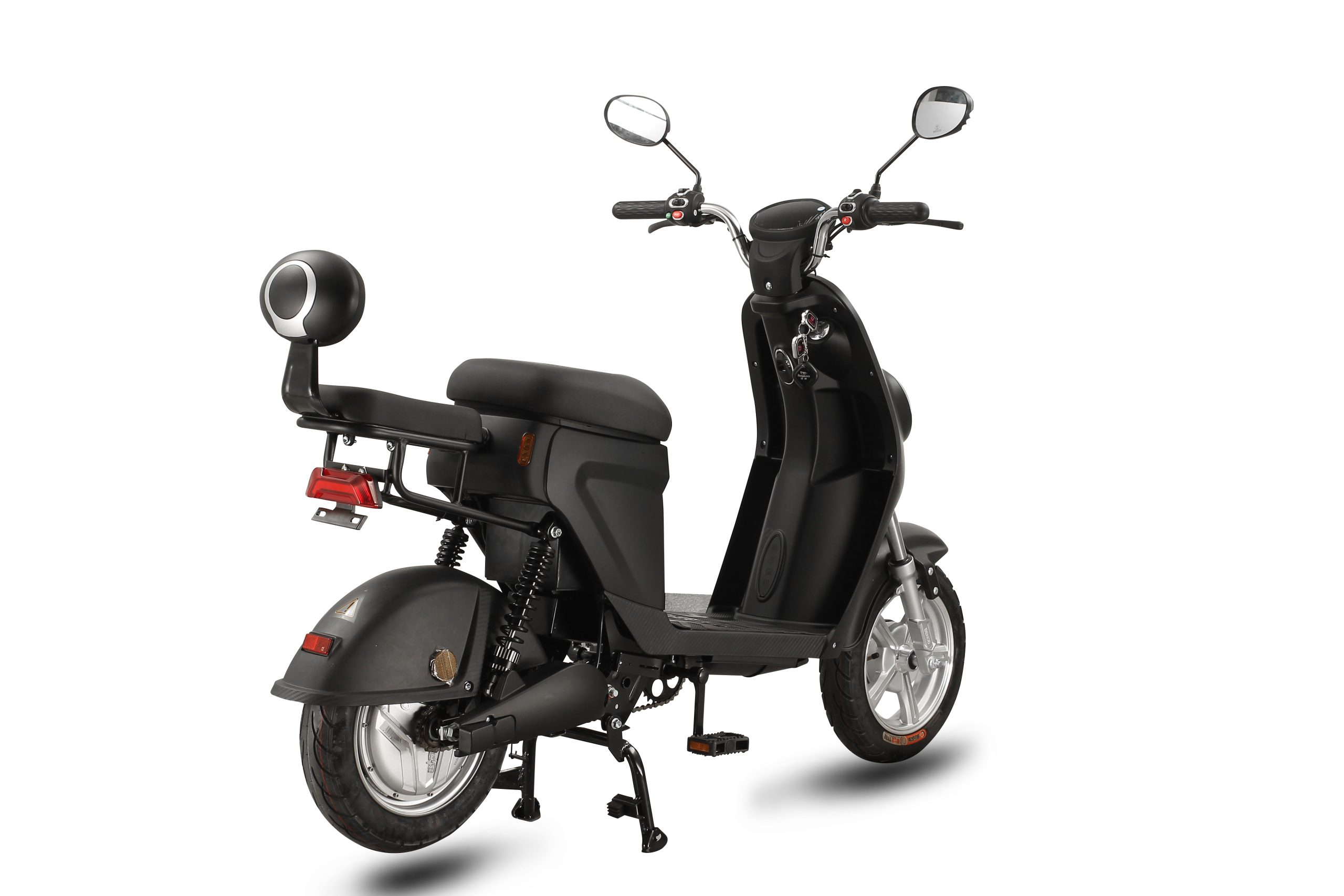

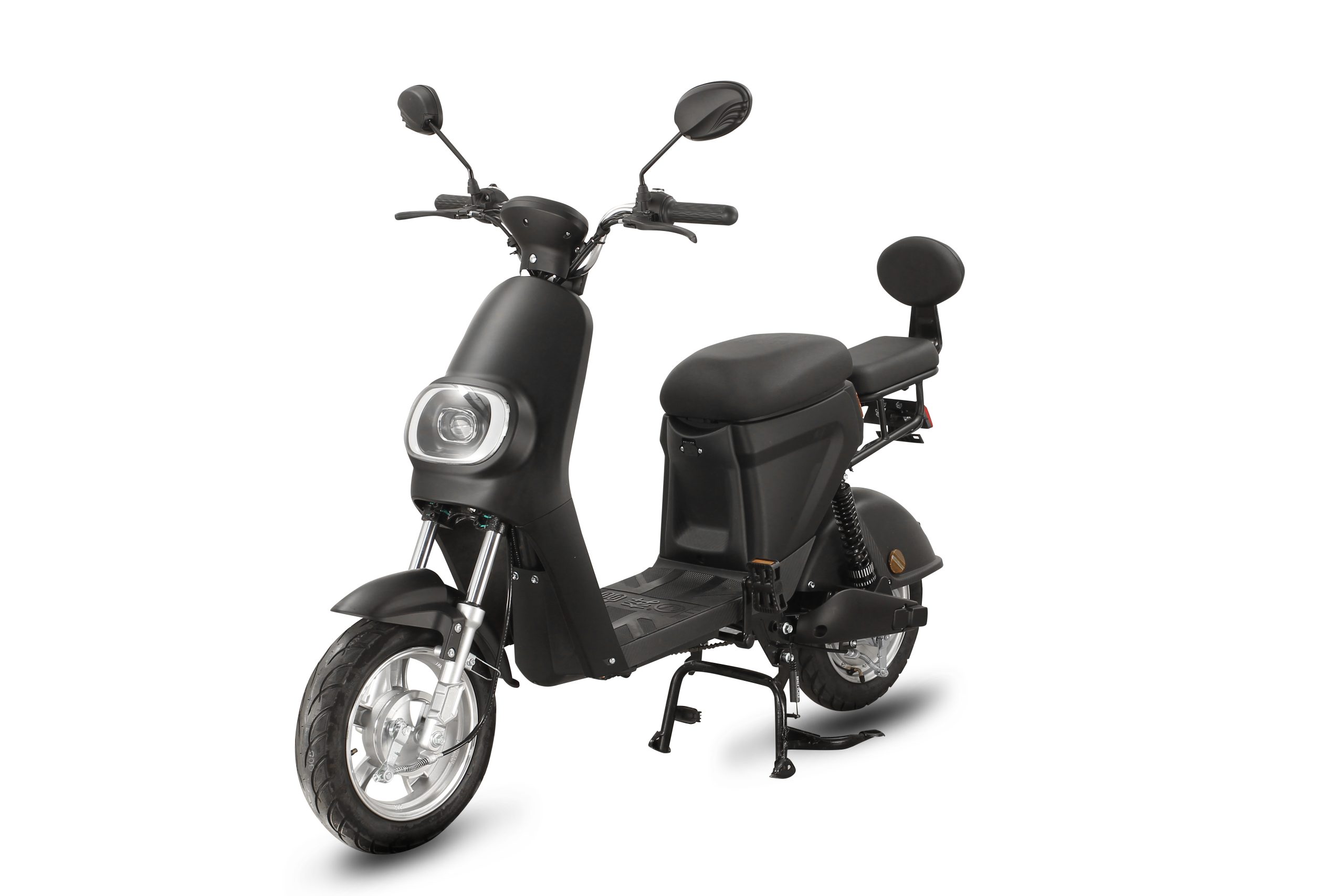

7.Pictures
