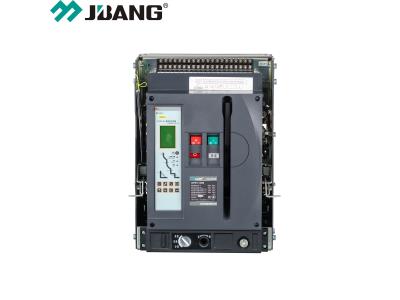

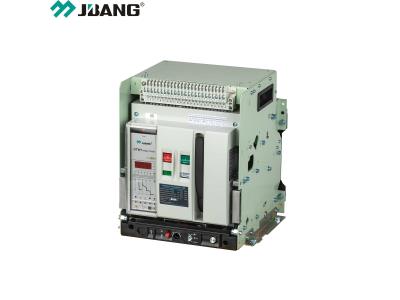

GTW1 Drawer/Fixed Intelligent Universal Air Circuit Breaker Acb
Inquire NowDescription
The GTW1 Drawer/Fixed Intelligent Universal Air Circuit Breaker (ACB) is designed for optimal performance in electrical systems, ensuring safety and reliability. With a rated operational voltage of AC400/415/690V and a current range from 630A to 6300A, this compact breaker features both fixed and withdrawable types, making it versatile for various applications. Compliant with IEC/EC 60947-2 standards, it supports telecommunication protocols such as Modbus, Profibus-DP, and Device Net. The GTW1 ACB is engineered for high breaking capacity at 415V, making it an essential component for modern electrical installations.
Specifications
| Model | GTW1-1000 | GTW1-2000 | GTW1-3200 | GTW1-4000 | GTW1-6300 |
|---|---|---|---|---|---|
| Shell Frame Level Current (Inm) | 1000A | 2000A | 3200A | 4000A | 6300A |
| Operating Frequency (Hz) | 50 | ||||
| Rated Working Voltage (Ue) | 400/690V | ||||
| Rated Insulation Voltage (Ui) | 800V | 1000V | 1000V | 1000V | 1000V |
| Rated Short-Circuit Segmentation Capability (Icu) | 50kA (400V) | 85kA (400V) | 100kA (400V) | 100kA (400V) | 120kA (400V) |
| Service Life (Mechanical) | 15000 cycles (Free of maintenance) | 10000 cycles (Maintained) | 5000 cycles | 5000 cycles | 3000 cycles |
Additional Information
The GTW1 ACB offers various connection modes, including horizontal and vertical configurations, and supports up/down incoming line methods. Its intelligent controller enhances operational efficiency and safety, making it an ideal choice for critical electrical systems. The device ensures a high level of protection and is suitable for both fixed and drawer type installation methods.
