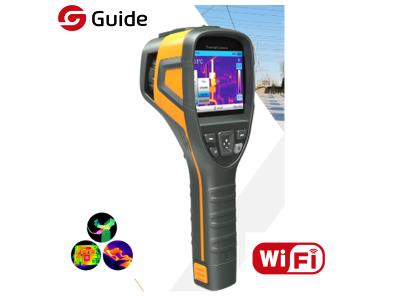

GUIDE B Series Tool-like Thermal Camera
Inquire NowDescription

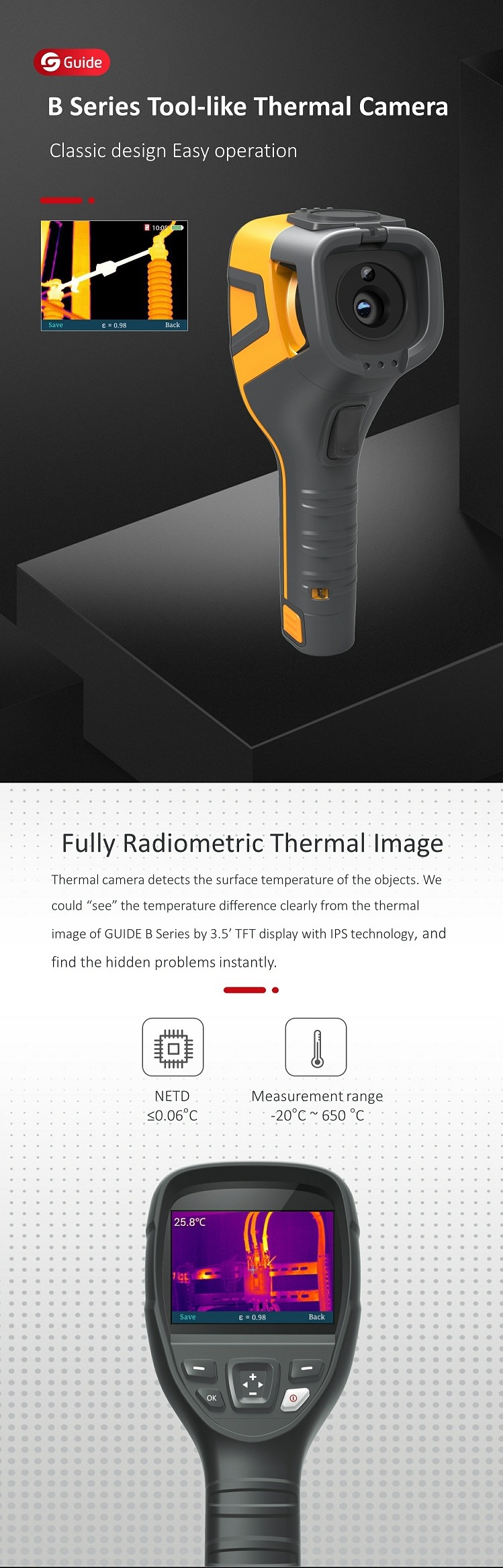

The GUIDE B Series Tool-like Thermal Camera is a highly efficient and budget-friendly infrared thermal imaging solution. Designed for versatility and ease of use, this robust camera offers intuitive handling and a user-friendly single-hand operation, making it the perfect tool for troubleshooting various applications including electrical installations, mechanical components, buildings, HVAC/R equipment, and more. With its advanced features and reliable performance, the GUIDE B Series is ideal for both professionals and DIY enthusiasts alike.
Specifications
| Feature | B160V | B256V | B320V |
|---|---|---|---|
| IR Resolution | 160×120@12μm | 256×192@12μm | 320×240@17μm |
| Detector Type | VOx/7.5~14μm | ||
| Frame Rate | 25Hz/9Hz | ||
| Focal Length | 3.7mm/F1.1 | 5mm/F1.2 | 7mm/F1.1 |
| Field of View (FOV) | 30°×22° | 35°×26° | 42.5°×32.5° |
| Focus | Focus-free | ||
| Visible Camera Resolution | 640×480, Automatic | ||
| Display | 3.5″ highlight LCD screen, 320×240 | ||
| Image Modes | IR image, Visible image, MIF, PIP | ||
| Temperature Range | -20℃-150℃, 100℃-650℃ (Auto switching) | ||
| Accuracy | ±2℃ or ±2%, whichever is greater (target temp ≥0℃, ambient temp 15℃ ~ 30℃) | ||
| Spotmeter | Center spot | ||
| Auto Tracking | Area Tmax/Tmin tracking | ||
| Alarm | Area Tmax/Tmin alarms | ||
| Storage Medium | Removable SD card (16G) | ||
| Image Format | JPG with temperature info | ||
| Video Streaming | Transferred via USB | ||
| Interface | Micro USB (for real-time image/video transmission) | ||
| WIFI | Yes (for data transfer and camera control) | ||
| Battery | Rechargeable Li-ion battery, ≥4h, Automatic shut-down and sleeping mode | ||
| Weight | 740g (battery included) | ||
| Size | 258mm×98mm×90mm | ||
| Standard Accessories | Li-ion battery, Power supply adapter (5V/2A), Adapter plug, Wrist strap, USB cable, Quick Start Guide, Data Download Card, SD card (16GB) | ||
| Optional Accessories | Li-ion Battery, Camera carrying pouch, Battery charger | ||
Additional Information
This thermal camera is designed with an IP43 rating, ensuring protection against solid objects larger than 1mm and light moisture. It can withstand a drop from 1 meter, making it suitable for rugged use in various environments.
