GUIDE P120 / P120V Pocket-Sized Thermal Camera
Inquire NowDescription

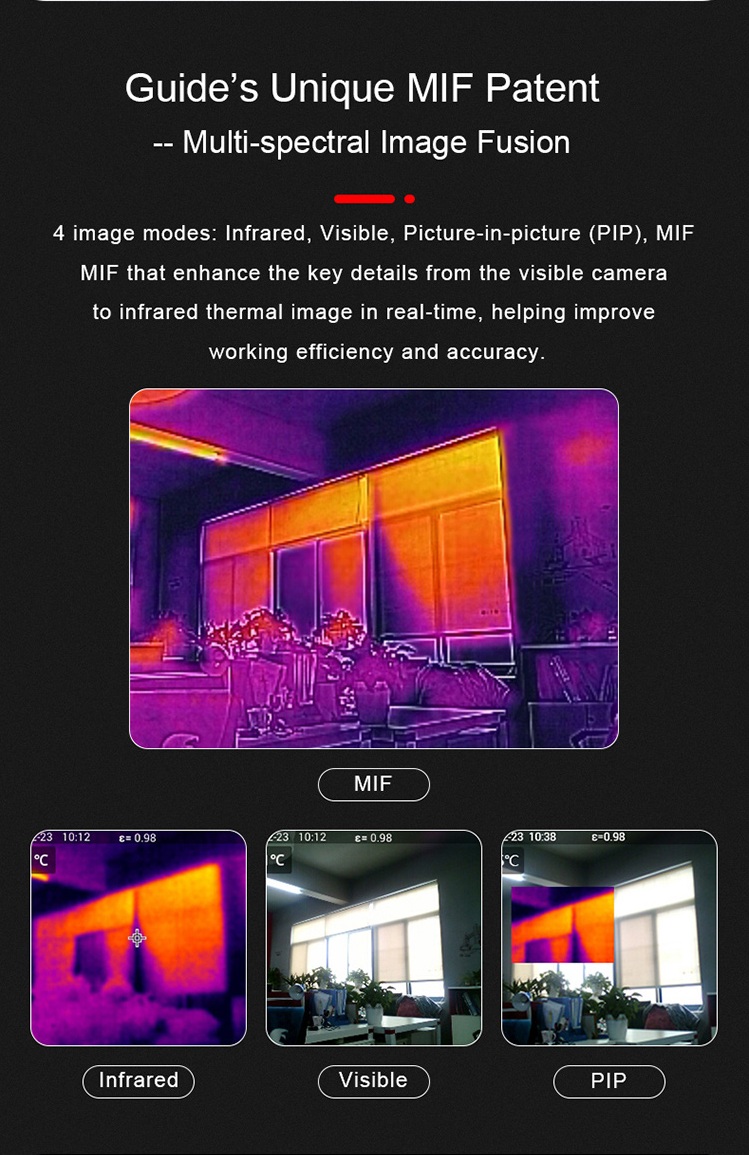

The GUIDE P120/P120V Pocket-Sized Thermal Camera is the perfect tool for electrical equipment maintenance and building inspections. Compact and user-friendly, this thermal camera swiftly detects potential problems, allowing for quick reporting and data sharing via Wi-Fi. Its 3.5-inch LCD touchscreen simplifies operation, while features like picture-in-picture, smooth zoom, and temperature alarms enhance usability. Whether you’re in the field or doing routine checks, this handy device fits easily into your pocket, ensuring you can perform efficient thermal inspections anytime.
Specifications
| Attribute | Details |
|---|---|
| Model | P120V |
| IR Resolution | 120×90 @17μm |
| Focal Length | 2.28mm/F1.13 |
| Field of View (FOV) | 50°×38° |
| Focus | Focus-free |
| Display | 3.5″ LCD touchscreen display |
| Measurement Range | -20℃ to 150℃, 100℃ to 400℃ (Auto switching) |
| Battery Operating Time | ≥ 2 hours (when Wi-Fi off) |

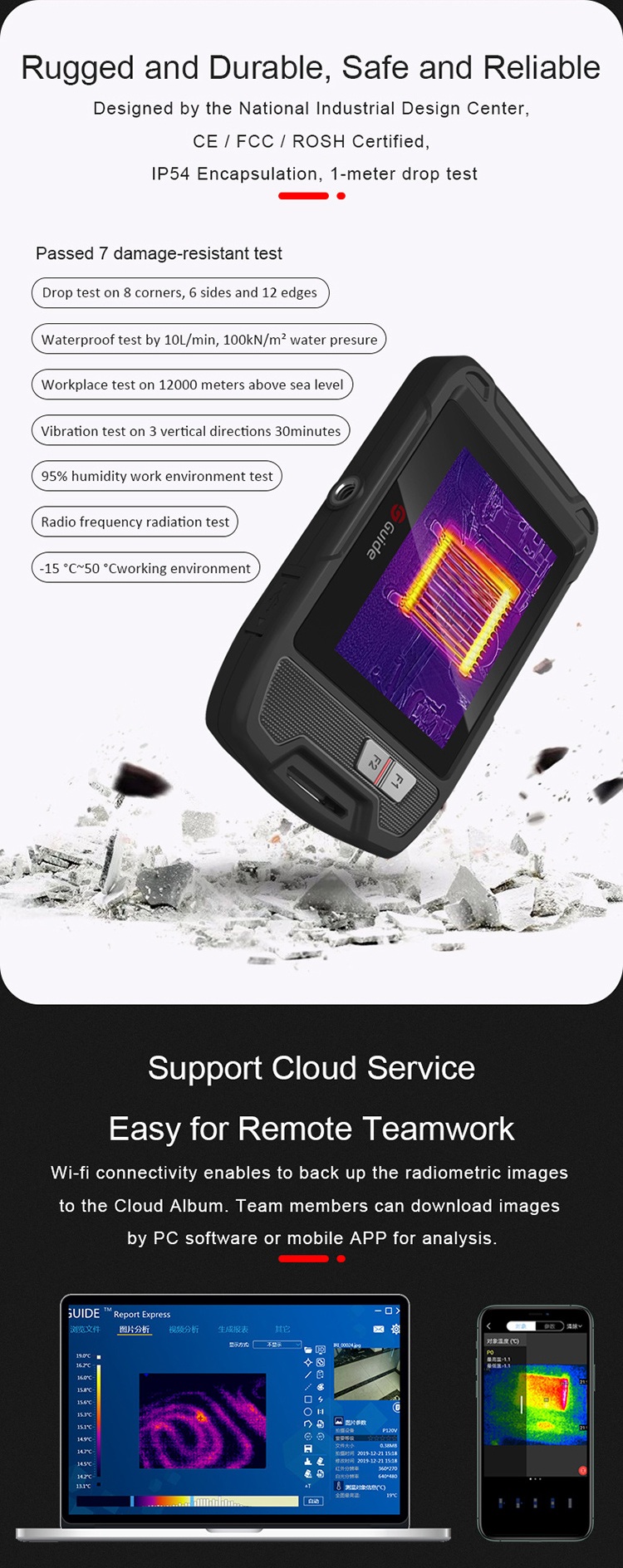

| Encapsulation | IP54, 1-meter drop test |
| Weight | 240g |
| Size | 133mm x 87mm x 24mm |
Additional Information
- Fast detection of electrical issues and thermal anomalies.
- Share images and reports via Wi-Fi for efficient collaboration.
- Ideal for both professional and personal use in diverse settings.
