gutter roll forming machine
Inquire Nowrain gutter roll forming machine metal roll forming machine metal gutter machine
rain gutter roll forming machine metal roll forming machine metal gutter machine
Product Description
Processing technique and deployment

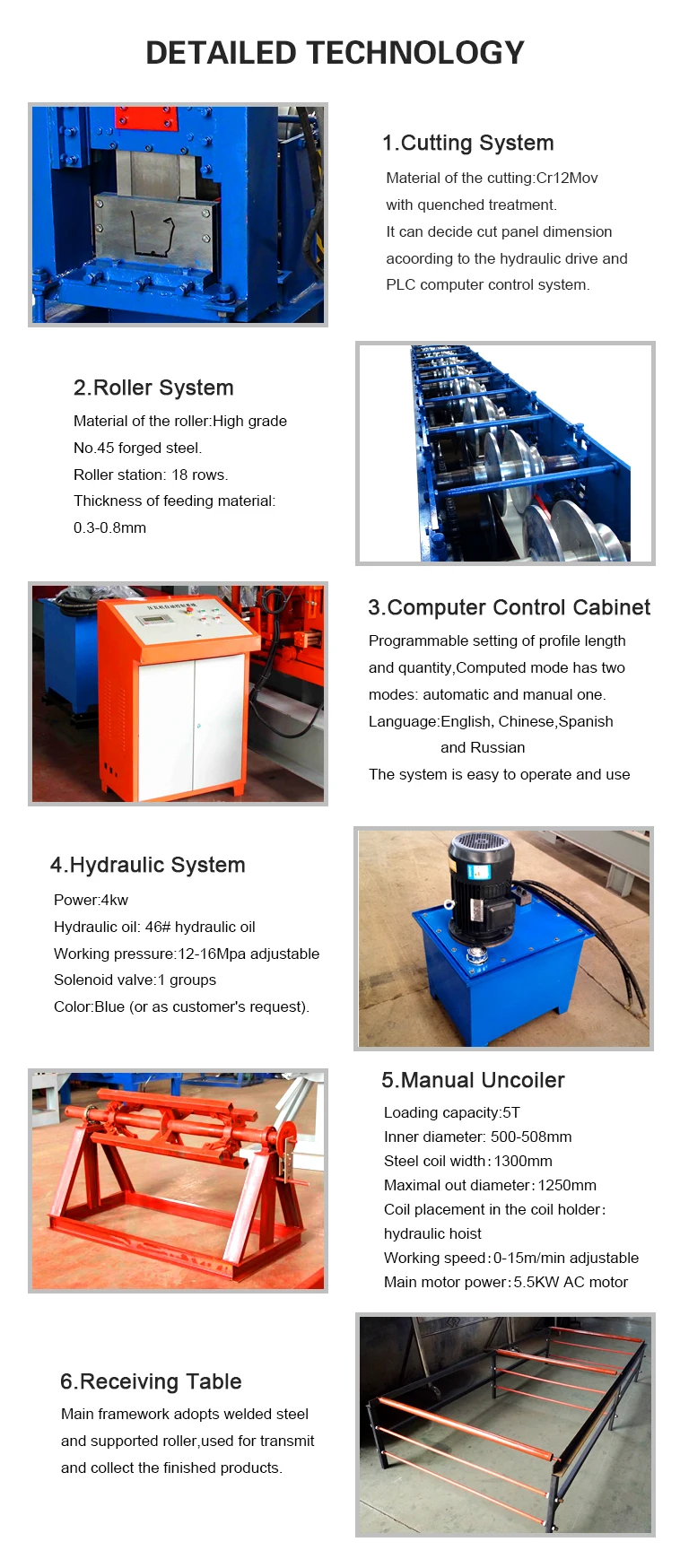

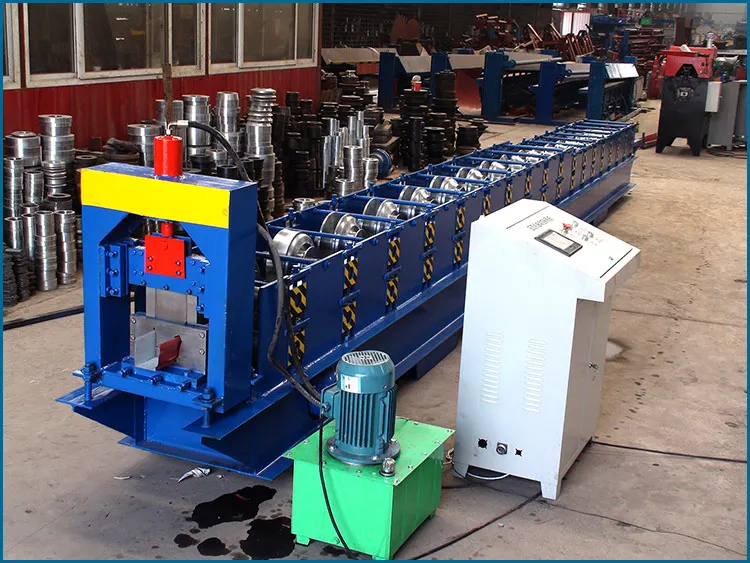

Processes: manual decoiler — feeding table — Roll forming machine — PLC system — Hydraulic system — Post cut
?Main Parameters of water gutter cold roll forming equipment:
|
No. |
main parameter of gutter roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
|
2 |
Width of the feeding material |
According to the profile |
|
3 |
Rollers station |
18 rows |
|
4 |
Thickness of feeding material |
0.3-0.8mm |
|
5 |
Power |
4+4kw |
|
6 |
Size |
8500*800*1500mm |
|
7 |
Productivity |
8-12m/min |
|
8 |
Diameter of shaft |
52mm |
|
9 |
Weight |
About 4.8 T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Rolling material |
Carbon Steel 45# |
|
12 |
Material of the cutting plate |
Cr12 |
|
13 |
Wall thickness of main forming machine |
16mm steel plate |
|
14 |
Main structure of the machine |
300 H steel |
|
Custom according to customer requirements or drawings |
||
Product Pictures
Detailed Images
Production Process
Packaging & Shipping
|
Packaging Details: |
Main machine is nude, the computer control box is packed with wooden frame. |
|
Main machine is nude in the container, the computer control box is packed with wooden packaging. |
|
|
Delivery Detail: |
20 days |
Company Information
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
