GYID Electric Vehicle DC insulation monitoring device,to monitor the positive and negative

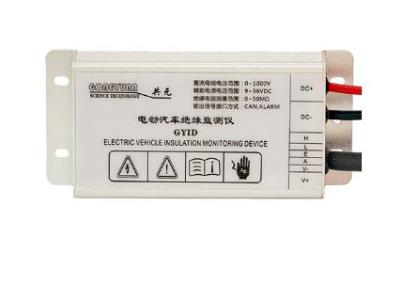

Inquire NowThe GYID Electric Vehicle DC Insulation Monitoring Device is an essential tool designed for real-time monitoring of insulation resistance in both DC and AC floating systems. With the capability to measure insulation resistance of 0~1000V DC systems and 0~750V AC systems, this device ensures safety by monitoring insulation faults between the equipment’s shell and ground, as well as between high voltage components and the shell. It is particularly effective in electric vehicle applications, maintaining reliable performance even under challenging conditions such as acceleration, braking, and energy recovery. The GYID device also effectively filters high-frequency voltage harmonics in AC systems, providing accurate measurements of insulation resistance.
Features
– DC System: Monitors ground insulation of 0~1000V DC floating system.
– AC System: Monitors ground insulation of 0~750V AC floating system.
– Passive Equipment: Monitors insulation status between equipment and housing or ground.
– Reliable monitoring even when bus voltage is 0.
– Measuring range of 0~50 MΩ (default output 50 MΩ for values exceeding this range).
– Automatic adaptation for system Y capacitor (CY ≤ 4 μF).
– Incorporates a CAN bus interface.
– Built-in high-voltage relay for disconnecting the physical connection during tests.
Application
– Power battery high voltage systems in electric vehicles.
– Hybrid electric vehicle high voltage systems.
– Hydrogen energy vehicle high voltage systems.
– Energy storage systems.
– Other DC and AC floating systems.
| Attribute | Details |
|---|---|
| Accuracy | 1% |
| Measurement Range | 0-1000VDC, 0-750VAC |
| Power Supply | 9-36VDC |
| Input Power | ≤ 2W |
| Insulation Resistance | 0 ~ 50 MΩ (Default is 50 MΩ when over 50 MΩ) |
| Insulation Accuracy | ±12 kΩ (@ 0~100 kΩ, CY ≤ 2μF) ±10 % (@100 kΩ~1 MΩ, CY ≤ 2μF) ±10 % (@1MΩ~50MΩ, CY ≤ 2μF) |
| Response Time | 4s (@RISO ≥ 500 kΩ, CY =0μF) 5s (@RISO < 500 kΩ, CY =0μF) 8s (@RISO =1MΩ, CY =1μF) 12s (@RISO =1MΩ, CY =2μF) |
| High Voltage Input Resistance | Positive 5 MΩ, Negative 1 MΩ to ground (internal relay closed) Positive & negative poles to ground over 500 MΩ (internal relay open) |
| Pulse Signal Amplitude | ±15 V |
| Pulse Signal Frequency | Adaptive |
| Isolation Withstand Voltage | 3500VDC, 2500VAC (RMS) |
| Operating Temperature | -40 ℃~＋85 ℃ |
| Storage Temperature | -40 ℃~＋85 ℃ |
| IP Protection | IP 55 |
| Weight | 0.5kg (Aluminum package) |
