H-beam assembling welding and straightening machine
Inquire NowDescription

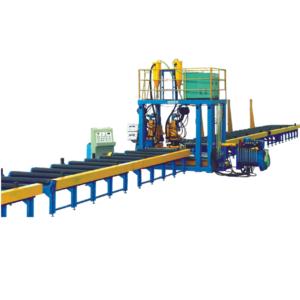

The H-beam assembling welding and straightening integral machine is an advanced solution designed for the efficient production of H-beams and T-beams. This specialized machine seamlessly integrates the processes of assembling, welding, and straightening, providing unparalleled productivity in a compact footprint. Its innovative design allows for a reduction in machinery costs while optimizing production efficiency.
This equipment features a comprehensive setup, including an assembling and welding main machine, an assistant straightening machine, a pre-centering system, driving roller conveyors, idle roller conveyors, a flux recycling system, hydraulic system, electrical controlling system, and a powerful welding source. This sophisticated arrangement ensures that all operations are conducted with precision and speed, making it an essential asset for any fabrication facility.
Specifications
| Feature | Details |
|---|---|
| Web Height | 200-1500 mm |
| Web Thickness | 6-14 mm |
| Flange Width | 200-800 mm |
| Flange Thickness | 6-20 mm |
| Workpiece Length | 4000-15000 mm |
| Assembling and Welding Speed | 0.3-3 m/min |
| Main Machine Power | 4 kW |
| Conveyor Roller Power | 0.55 × 4 = 2.2 kW |
| Flux Recycling System Power | 3 × 2 = 6 kW |
| Hydraulic Station Power | 5.5 kW |
| Welding Source Power | 69 kW × 2 = 138 kW (Lincoln DC-1000) / 60 kW × 2 = 120 kW (Zhouxiang MZ-1250) |
Additional Information
- This machine contributes to a clearer workspace by reducing the number of required machines.
- Ideal for operations requiring high precision and efficiency in beam construction.
