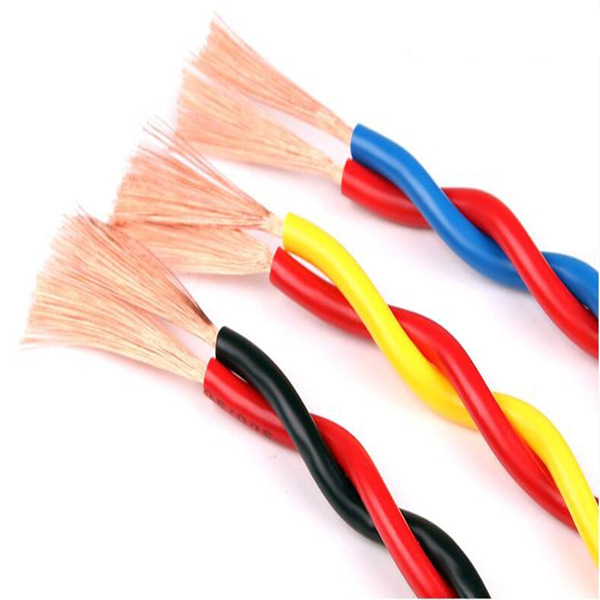

H03V-S Flexible Twsited PVC Insulated RVS Electrical Wires
Inquire NowDescription
The H03V-S Flexible Twisted PVC Insulated RVS Electrical Wires are designed for versatile electrical applications, providing reliability and flexibility. Made from high-quality plain annealed copper wires, these strands are classified as Class 5 Flexible, ensuring excellent conductivity and adaptability. The insulation is crafted from soft PVC, available in various color combinations such as Red-Black, Red-Blue, Red-Yellow, Yellow-Green, and more, catering to diverse wiring needs.
These cables are particularly well-suited for fixed wiring in power devices, residential lighting, and the internal wiring of electronic equipment and instruments. Their unique twisted structure allows for easy bending, coupled with high-temperature resistance, flame retardancy, and low-temperature durability. Customizable options for fire resistance, UV resistance, and RoHS compliance are also available, making these wires a smart choice for various applications.
Specifications
| Specification | Details |
|---|---|
| Conductor Material | Plain Annealed Copper Wires, Strand Class 5 Flexible |
| Insulation Material | Soft PVC |
| Insulation Color | Red-Black; Red-Blue; Red-Yellow; Yellow-Green; or Others |
| Sheath Material | Non-Sheath |
| Core Number | 2 Cores (2C) |
| Voltage Rating | 300/300V (U0/U) |
| Product Size | 0.5-2.5 mm² |
| Production Standard | IEC 60227, JB/T 8734-2016, or others |
| Working Temperature | -15℃ to +70℃ (custom options available up to 90℃ or 105℃) |
| Min. Bending Radius | 5 x Outer Diameter of Cables |

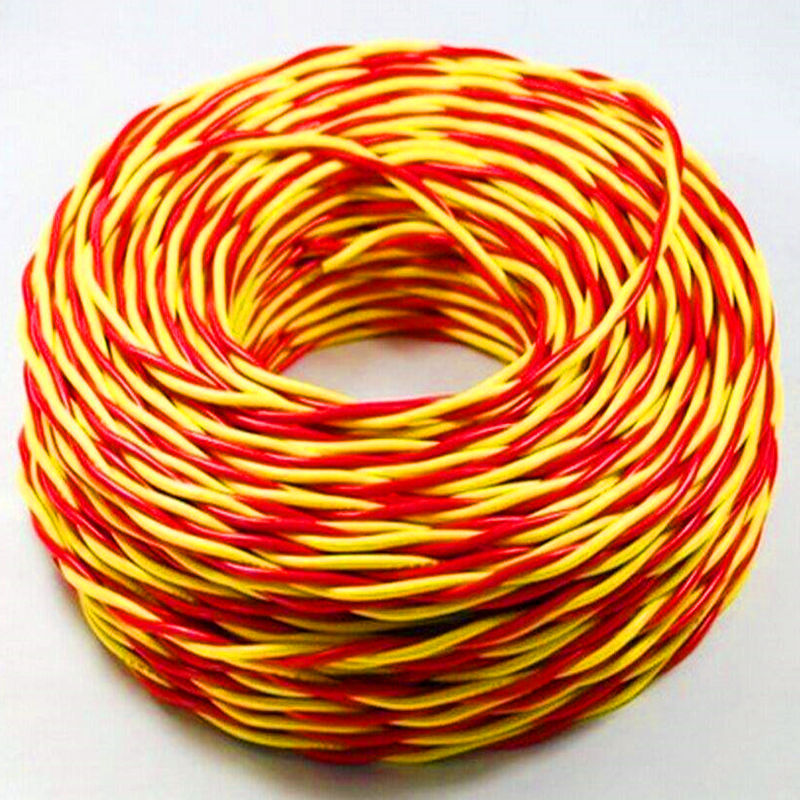

| Product Packing | 100 meters per roll, plastic reel, wooden pallet, or wooden drum |
| Delivery Time | Within 5-7 working days after deposit |
Additional Information
These wires meet the IEC 60227 and JB/T 8734-2016 standards, ensuring high quality and safety for your electrical applications. Customization options are also available to meet specific customer requirements.
