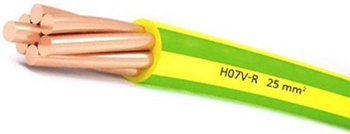

H07V-R Strand Copper PVC Insulated Non-Sheath BV Electrical Wires
Inquire NowDescription

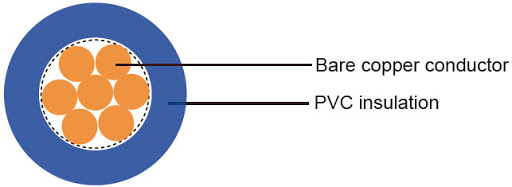

H07V-R Strand Copper PVC Insulated Non-Sheath BV Electrical Wires are expertly designed to meet high standards for electrical applications. These wires feature a conductor made of plain annealed copper, classified as class 2 strands, ensuring flexibility and reliability. The insulation, crafted from Polyvinyl Chloride (PVC), offers robust protection and is available in various colors including red, yellow, blue, green, brown, black, and yellow/green, allowing for easy identification in installations. These single-core wires are rated for voltages of 450/750V (U0/U) and come in sizes ranging from 10 to 630 mm², adhering to international standards such as IEC 60227, BS 6004, and GB/T 5023-2008. They are ideal for indoor applications, effectively connecting switch sockets, lighting, household appliances, and small power tools.
Specifications
| Attribute | Description |
|---|---|
| Conductor Material | Plain Annealed Copper Wire, strand class 2 |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Insulation Color | Red, yellow, blue, green, brown, black, yellow/green, or others |
| Sheath Material | Non-Sheath |
| Core Number | Single Core, 1C |
| Voltage Rate | 450/750V (U0/U) |
| Production Size | 10~630 mm² |
| Production Standard | IEC 60227, BS 6004, GB/T 5023-2008, JB/T 8734-2016, and others |
| Working Temperature | -15℃ to +70℃ (customized options available for 90℃ or 105℃) |
| Min. Bending Radius | 5 x Outer Diameter of Cables |
| Product Packing | 100 meters per roll, plastic reel, wooden pallet, or wooden drum |
| Delivery Time | Within 3-5 working days upon receipt of deposit |
Additional Information
- Applications: Ideal for connecting indoor switch sockets, lighting, household appliances, small power tools, and instruments.
- Keywords: BV, BLV, THW, NYA, H05V-R, 6491X, 60227 IEC 01 BV.
- Product Remarks: The above information is for reference only, please consult the actual product for precise technical parameters.
- OEM Services: Accepted with a valid authorization letter provided by the customer.
