H07V-U NYA Solid Copper PVC Insulated Non-Sheath BV Electrical Wires
Inquire NowDescription

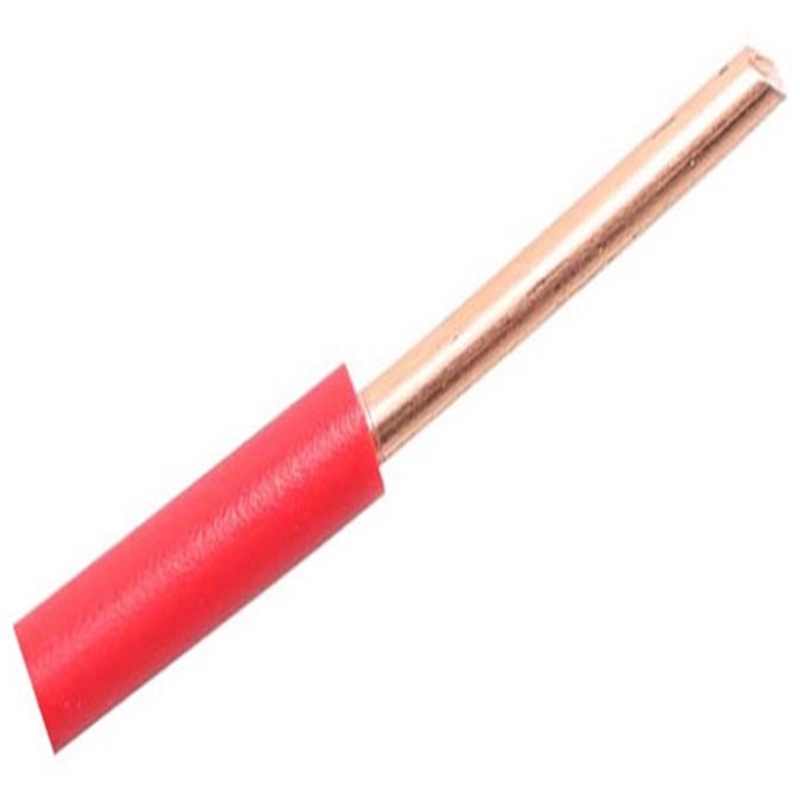

The H07V-U NYA Solid Copper PVC Insulated Non-Sheath BV Electrical Wires are designed for high-performance electrical applications. Constructed with plain annealed copper wires of solid class 1, these wires ensure safe and stable electrical performance. The insulation is made from durable Polyvinyl Chloride (PVC), available in various colors including red, yellow, blue, green, brown, black, and yellow/green, catering to diverse wiring needs.
These single-core wires are rated for 450/750V (U0/U) and come in sizes ranging from 0.75 to 6 mm². Meeting international standards such as IEC 60227 and BS 6004, they are ideal for connecting indoor sockets, lighting, household appliances, and small power tools. The H07V-U NYA wires not only feature easy wiring with soft performance but also promote energy-saving, green environmental performance.
Specifications
| Attribute | Description |
|---|---|

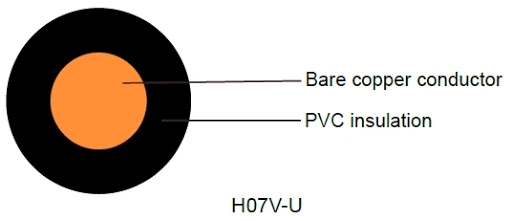

| Conductor Material | Plain Annealed Copper Wire, Solid, Class 1 |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Insulation Color | Brown, Red, Yellow, Blue, Green, Black, White, Grey, Yellow/Green, or others |
| Sheath Material | Non-Sheath |
| Core Number | Single Core, 1C |
| Production Size | 0.75 ~ 6 mm² |
| Voltage Rate | 450/750V (U0/U) |
| Production Standard | IEC 60227, BS 6004, GB/T 5023-2008, JB/T 8734-2016, and others |
| Working Temperature | -15℃ to +70℃ (custom options available for 90℃ or 105℃) |
| Min. Bending Radius | 3 x Outer Diameter of Cables |
| Product Packing | 100 meters per roll; available in plastic reel, wooden pallet, or drum |
| Delivery Time | Within 3-5 working days after receiving the deposit |
Additional Information
- Applications: Ideal for indoor switch sockets, lighting, household appliances, and small power tools.
- Energy Efficiency: Designed for energy-saving and environmentally friendly performance.
- OEM/OBM Service: Available with proper authorization from customers.
- Quality Assurance: Focus on quality and foremost service from Shenzhen Hongyan.
