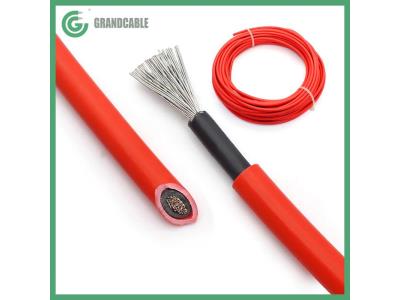

H1Z2Z2-K 1X150 mm2 DC Solar/PV Cable TUV Certified
Inquire NowDescription
The H1Z2Z2-K 1X150 mm² DC Solar/PV Cable is designed for high-performance use in Photovoltaic Power Supply Systems, operating at a nominal voltage of up to 1.5/1.5 kV DC. This cable is suitable for both indoor and outdoor applications across industrial and agricultural environments. It is engineered to function in equipment with protective insulation (Class II) and can be installed in explosion hazard areas. The cable can be fixed, freely suspended, or movable, making it versatile for use in cable trays, conduits, and walls. Additionally, it is designed for direct burial, following the appropriate guidelines.
Cable Construction:

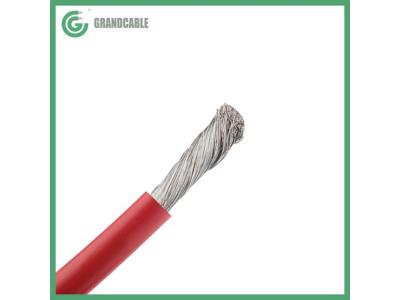

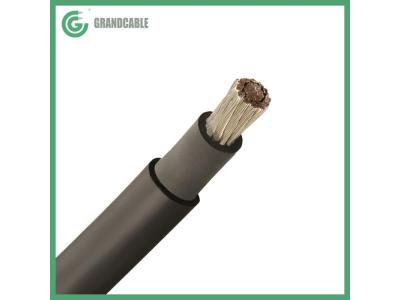

Constructed with electrolytic tinned copper, finely stranded class 5 in compliance with IEC 60228, the cable features halogen-free cross-linked insulation and sheath that is flame retardant. Available in red or black, it ensures safety and reliability in various applications.
Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | D.C. 1.5/1.5 kV A.C. 1.0/1.0 kV |
| Max. Permissible Operating Voltage AC | 1.2/1.2 kV |
| Max. Permissible Operating Voltage DC | 1.8/1.8 kV |
| Nominal Cross Sectional | 150 mm² |
| Number of Wires in Conductor | 740 |
| Diameter of Wires in Conductor | 0.50 mm |
| Tolerance of Wires in Conductor | ±0.005 mm |
| Mean Thickness of Insulation | 1.40 mm |
| Mean Thickness of Sheath | 1.40 mm |
| Max. Mean Overall Diameter | 25.50 mm |
| Approx. Cable Weight | 1598.10 kg/km |
| Conductor D.C Resistance at 20°C | 0.132 Ω/km |
Additional Information
About Us:
Jiangsu Grand Cable Co., Ltd. was established in 2002, covering an area of 130,000 square meters. The company has a strong annual production capacity and is recognized as one of the key enterprises in the China Wire & Cable Industry. It holds multiple certifications including ISO9001 and ISO14001, ensuring high quality and safety standards.
FAQ:
Q: How long does it take to get my inquiry replied?
A: Typically, inquiries are replied to within 12 hours, with quotes sent within 1-3 days depending on the cable’s specifications.
Q: Can I get samples before placing the order?
A: Yes, samples can be provided for free if available in stock.
Q: What’s the MOQ of your product?
A: The MOQ for most products is 1000 meters, although negotiations can be made for exceptional cases.
