H1Z2Z2-K 1X25 mm2 DC Solar/PV Cable TUV Certified
Inquire NowDescription
The H1Z2Z2-K 1X25 mm² DC Solar/PV Cable is designed specifically for use in Photovoltaic Power Supply Systems, accommodating nominal voltage rates of up to 1.5/1.5 kV DC. This versatile cable is suitable for both indoor and outdoor applications, making it ideal for industrial and agricultural sectors. Its robust construction allows for installation in various environments, including equipment with protective insulation and explosion hazard areas. The cable can be fixed, freely suspended, or movable, and is suitable for direct burial, provided that the relevant guidelines are followed.
Cable Construction:

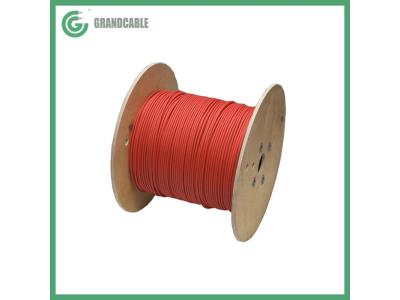

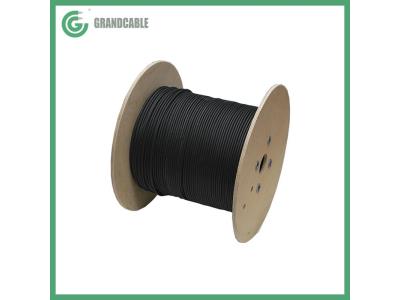

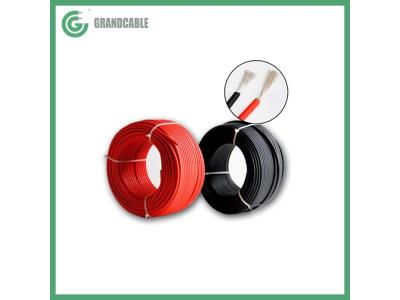

Featuring an electrolytic tinned copper conductor that is finely stranded (class 5) in accordance with IEC 60228, this cable is insulated with a halogen-free cross-linked compound. The sheath is also made from a halogen-free, flame-retardant compound, ensuring safety and durability. The insulation and sheath are available in red or black.
Specifications
| Rated Voltage | D.C. 1.5/1.5 kV A.C. 1.0/1.0 kV |
|---|---|
| Max. permissible operating voltage AC | 1.2/1.2 kV |
| Max. permissible operating voltage DC | 1.8/1.8 kV |
| Nominal Cross Sectional | 25 mm² |
| Number of wires in conductor | 189 |
| Diameter of wires in conductor | 0.400 mm |
| Tolerance of wires in conductor | ±0.005 mm |
| Mean Thickness of Insulation | 0.90 mm |
| Mean Thickness of Sheath | 1.00 mm |
| Max. Mean Overall Diameter | 12.50 mm |
| Approx. Cable Weight | 305.4 kg/km |
| Conductor D.C resistance at 20°C | 0.795 Ω/km |
Additional Information
About us:
Jiangsu Grand Cable Co., Ltd., founded in 2002, is a key enterprise in the China Wire & Cable Industry, known for its extensive production capacity and high-quality standards. The company is committed to innovation and has received multiple certifications, including ISO9001 and ISO14001.
FAQ:
Q: How long does it take to get my inquiry replied?
A: Inquiries are typically replied to within 12 hours, with quotes sent within 1-3 days, depending on technical parameters.
Q: Can I get samples before placing the order?
A: Yes, free samples are available if the cable is in stock.
Q: What’s the MOQ of your product?
A: The MOQ is usually 1000 meters, with room for negotiation in exceptional cases.
