Description

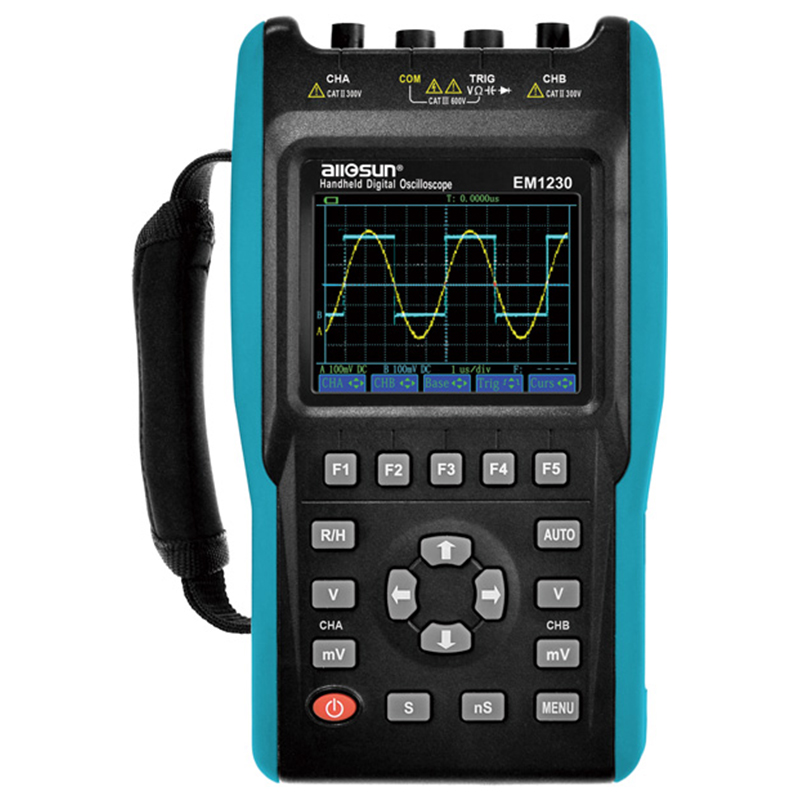

The Handheld Digital Oscilloscope is a multifunctional test tool designed for field testing, equipment maintenance, and service. Combining a 25MHz digital storage oscilloscope and a 6000-count true RMS digital multimeter, this device offers versatility in measuring electronic signals and analyzing performance effectively. Its dual-channel setup allows for comprehensive signal analysis, while the intuitive interface makes it user-friendly for both professionals and enthusiasts.

Features:

• Dual-channel, 25MHz digital storage oscilloscope for precise waveform observation.
• 6000-counts true RMS digital multimeter for accurate voltage, current, and resistance measurements.
• Real-time sampling rate of 100MSa/s, providing dynamic analysis of electrical signals.
• Automatic tracking and measurement, adjusting settings without manual intervention.
• Large dynamic measurement range from 10mV/div to 500V/div.
• Waveform parameter display options including RMS, peak-to-peak value, average value, frequency, and period.
• Cursor measurement functionality for detailed analysis.
• TFT LCD display with a resolution of 320 × 240 pixels.
• Powered by a built-in lithium battery or an AC adapter for convenient usage.
• Recorder function to continuously track and document events for up to 24 hours.
• USB connectivity for data analysis through computer software.

Specifications

Additional Information

This Handheld Digital Oscilloscope is an essential tool for electricians, engineers, and technicians, enhancing productivity and accuracy in electrical testing. When using the device, ensure to charge the lithium battery fully for optimal performance and utilize the USB connectivity for enhanced data analysis capabilities.
