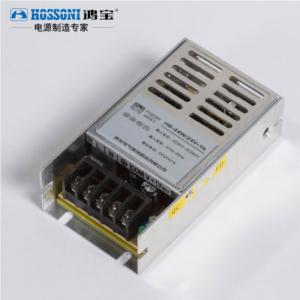

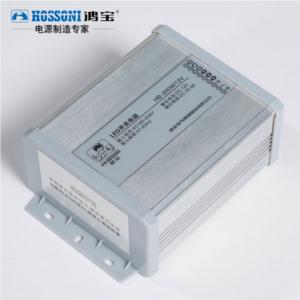

HB-L AC 220V to DC SWITCHING Power Supply waterproof 180V-250V
Inquire NowDescription
HB-L AC 220V to DC SWITCHING Power Supply is a high-performance, waterproof power supply designed to convert AC voltage from 220V to DC. Operating within a voltage range of 180V to 250V, this switching power supply is ideal for automation applications, including LED large screens, engineering control equipment, communication devices, and various instruments and meters. Crafted with advanced technology and imported components, this power supply guarantees stable and reliable performance, making it a popular choice across the globe, especially in the Americas and Europe.
Specifications
| Attribute | Details | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| AC Input Voltage | 85~132VAC or 170~264VAC (selectable range) | ||||||||
| AC Input Frequency | 47~63Hz | ||||||||
| Efficiency | 25W: 71%, 50W: 75%, 100W: 79%, 200W: 81% (Full load for 12V single output type) | ||||||||
| Output Stability | 0.5% typical value | ||||||||
| Micro-adjustment Range of Output Voltage | ±10%~15% (For main output circuit) | ||||||||
| Ripple and Noise | 1% peak value (Real measurement value is less than 20 mV) | ||||||||
| Over-voltage Protection | 115%~135% (For main output circuit) | ||||||||
| Over-load Protection | All output terminals have short-circuit protection and overload protection | ||||||||
| Withstand Voltage |
|
||||||||
| Holding Time | The typical value is 20ms at full load | ||||||||
| Temperature Factor | 0.02%-0.05%/°C | ||||||||
| EMI Standard | a (FCC) PART 15A, Grade B (b) En55022, CISPR PUB22A, Grade B | ||||||||
| Safety Standard | (a)UL1012(b)EN60950(IEC950,UL1950) | ||||||||
| Working Environment Temperature | -10~60 °C | ||||||||
| Storage Environment Humidity | -20 ~+85 °C |
Additional Information
This power supply adheres to international safety and technical standards, ensuring its suitability for various applications in both industrial and domestic settings. Its waterproof design makes it reliable for outdoor use, providing peace of mind in challenging environments.
