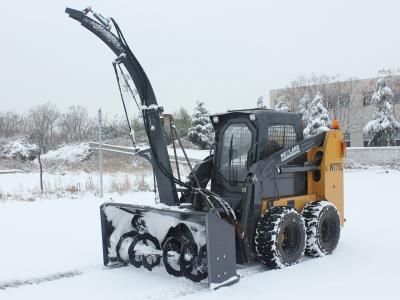

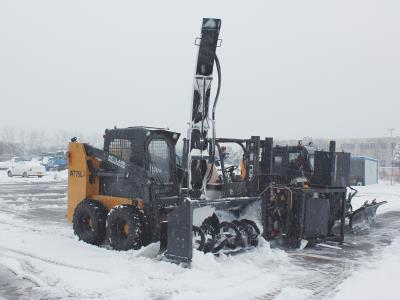

HCN Snow Blower
Inquire NowDescription
The HCN Snow Blower is a full hydro-mechanical type blower designed with a compact and robust structure, making it perfect for tackling all snow conditions. This efficient snow removal solution is ideal for spot-casting and loading snow through its discharge or telescopic loading chute, ensuring that you can handle even the most daunting winter storms with ease. Whether you’re stuck at the end of a long driveway or managing snow in commercial settings, this snow blower is indispensable for saving both time and effort.
Equipped with a high-pressure bypass relief system, the HCN Snow Blower eliminates the need for shear pins during sudden stops, providing reliability year after year. With various widths available, the snow blower is tailored to fit your specific machine, guaranteeing optimal performance.
Application Fields:
| Application field | Benefits |
|---|---|
| Construction applications | Increasing production and decreasing labor costs |
| Landscaping applications | Eliminating the time-consuming task |
| Road Maintenance | Safe installation and relocation |
| Municipalities | Efficient and reliable |
| Highway/driveway cleaning | Expanding usable property |
| Seaport/Airport snow cleaning | One step process |
| ······ | Less Expensive |
| Environmentally Friendly | |
| ······ |
This snow blower features adjustable snow-blowing directions, with a 270-degree rotation for low-throwing barrels and 200 degrees for high-throwing barrels, making it convenient for various operating environments. Support legs are adjustable in height to prevent blade damage to gravel surfaces, ensuring smooth operation even in heavy snow conditions. Capable of throwing snow up to 12 meters, this machine allows the operator to adjust its speed based on the snow thickness. It can also be combined with other snow removal tools to enhance efficiency in clearing urban roads and highways.
Specifications
| Model | 0209H84 | 0209H72 |
|---|---|---|
| Overall length (mm) | 1120 | 1120 |
| Overall width (mm) | 2200 | 1896 |
| Overall height (standard set) (mm) | 1695 | 1695 |
| Overall height (optional set) (mm) | 3458 | 3458 |
| Transport height (mm) | 1593 (low chute) / 2140 (high chute) | 1593 (low chute) / 2140 (high chute) |
| Weight (including accessory) (kg) | 554 (low chute) / 600 (high chute) | 520 (low chute) / 570 (high chute) |
| Control mode | Electro-hydraulic control | Electro-hydraulic control |
| Angle of Rotation (°) | 270 (low chute) / 200 (high chute) | 270 (low chute) / 200 (high chute) |
| Max. loading height (for optional set) (m) | 3.3 | 3.3 |
| Max. throwing distance (m) | 12 | 12 |
| Hydraulic flow (L/min) | 120-150 | 120-150 |
| Max. operating pressure (Mpa) | 21 | 21 |
| Suitable machine (High hydraulic flow) | Skid steer loader | Skid steer loader |
| Auger Diameter (mm) | 470 | 470 |
Additional Information
This snow blower is suitable for:
- Skid steer loaders with Universal Mounting Quick Attach (Most brands of skid steers’ quick attach are Universal).
- Backhoe Loaders with hydraulics.
- Wheel Loaders with hydraulics.
