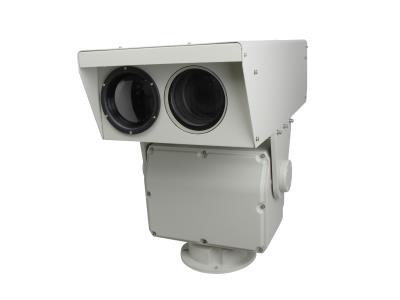

HD Thermal Heavy PTZ Camera

Inquire Now

Load 50KG, Worm gear drive;42X optical zoom(optional 35X/50X/86X/88X);Use 640 X 480 high sensitivity of large ;diameter uncooled thermal ;360°horizontal rotation at up to 0.01°- 100°/s ;-70°- +40°vertical rotation at up to 0.01°- 60°/s;DC48V power inputs, Protection class is IP66; DC48V power inputs

  • Load 50KG, Worm gear drive

  • High performance 1/2.8″ 2Mega pixel CMOS image sensor

  • 42X optical zoomoptional 35X/50X/86X/88X

  • Use 640 X 480 high sensitivity of large diameter uncooled thermal

  • Electronic control device for laser lamp & HD lens/camera, keep the field of view is accordance.

  • 360°horizontal rotation at up to 0.01°- 100°/s (servo); 0.01°- 30°/s (step)

  • -70°- +40°vertical rotation at up to 0.01°- 60°/s(servo); 0.01-20°/s (step)

  • Accurate positioning device that can keep the accuracy is±0.01deg always.

  • Long-focus speed limit function, PTZ speed follow with the lens zoom

  • DC48V power input

  • Protection class is IP66
