HEAT EXCHANGER
Inquire NowDescription

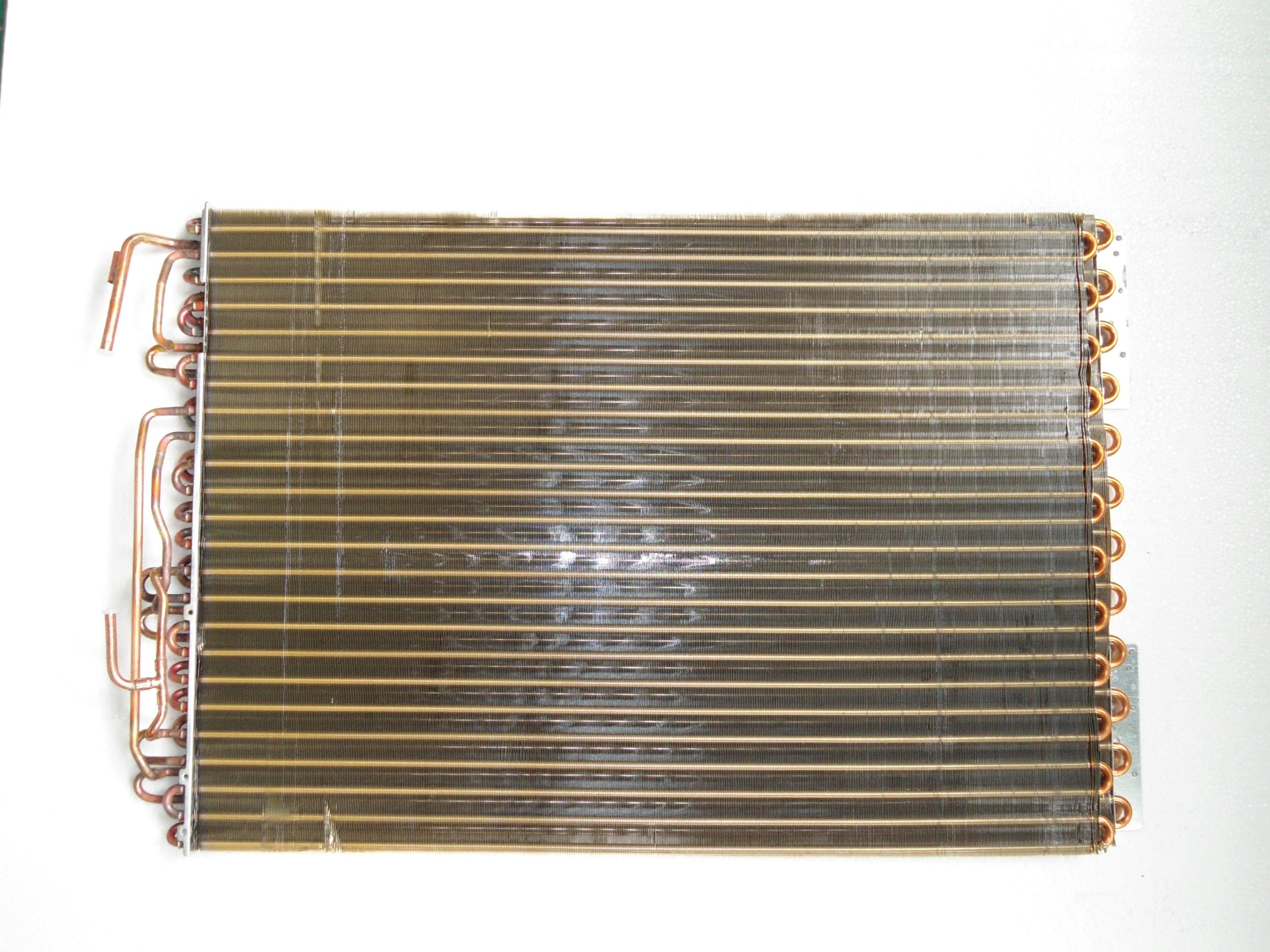

The heat exchanger is a crucial component in various thermal systems, efficiently transferring heat between two or more fluids without mixing them. This specific heat exchanger is made predominantly from high-quality copper tubes, which can be smooth or grooved, ensuring optimal thermal conductivity. The design includes a combination of galvanized steel, aluminum, and stainless steel plates for enhanced durability and corrosion resistance. It is engineered to meet stringent technical standards, ensuring high performance in various applications, including HVAC systems and industrial processes.
Specifications
| Specification | Holes Distance | Fin Type | Technical Ability |
|---|---|---|---|
| Ø5 | 19.5×11.6 (isosceles triangle shape) | Slit fin | 5Rows, 46Holes, L: ≤1050mm, Fin pitch: 1.2~1.4mm |
| Ø5 | 19.05×16.5 (equilateral triangle shape) | Flat fin, wave fin | 12Rows, 40Holes, L: ≤1500mm, Fin pitch: 1.2~3.0mm |
| Ø7 | 21×12.7 (isosceles triangle shape) | wave fin, Slit fin, louver fin | 6Rows, 36Holes, L: 1800mm(max), Fin pitch: 1.2~1.9mm |
| Ø7 | 21×18.19 (isosceles triangle shape) | Wave fin | 4Rows 46Holes, L: ≤1500mm, Fin pitch: 1.2~1.9mm |
| Ø12.7 | 27.5×31.65 (equilateral triangle shape) | Double wave fin | 4Rows, 28Holes, L: ≤1700mm, Fin pitch: 1.3~8.5mm |
| Ø9.52 | 25.4×22 (equilateral triangle shape) | Flat fin | 2Rows, 36Holes, L: 1300mm(max), Fin pitch: 1.3~2.0mm |
Additional Information
Ensure proper installation and maintenance for optimal performance. It is advisable to regularly check for any signs of wear or corrosion to prolong the lifespan of the heat exchanger.
