Heat exchanger
Inquire NowDescription

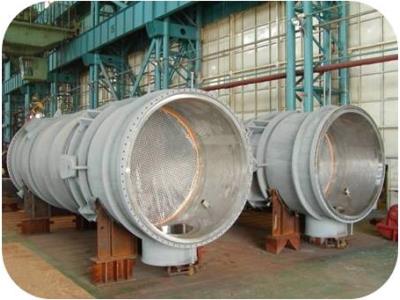

The Heat Exchanger is engineered for optimal thermal exchange, boasting a robust construction suitable for various industrial applications. It is certified with ASME U/U2/N/NPT, ISO9001, and DNV classification society certificates, ensuring compliance with the highest industry standards. Made from high-quality SA213TP316 for the pipe pass and SA240GR304 for the shell pass, this heat exchanger is designed for reliability and efficiency.
With a design pressure of 2.2 Mpa on the management side and 0.517 Mpa on the shell side, it operates efficiently under demanding conditions. It can handle temperatures ranging from -10℃ on the tube side to 43.3℃ on the shell side, making it versatile for various thermal applications. Its standard size of Ф2000×10892×16 with heat exchange tubes of Φ38×2.1 ensures it fits well into existing systems.
This heat exchanger is an essential component for any process requiring effective heat transfer, combining durability with high performance.
Specifications
| Attribute | Details |
|---|---|
| Material | SA213TP316 (pipe pass), SA240GR304 (shell pass) |
| Design Pressure | 2.2 Mpa (management side), 0.517 Mpa (shell side) |
| Design Temperature | -10℃ (tube side), 43.3℃ (shell side) |
| Standard Sizes | Ф2000×10892×16 (heat exchange tube Ф38×2.1) |
| Weight | 45.96T |
