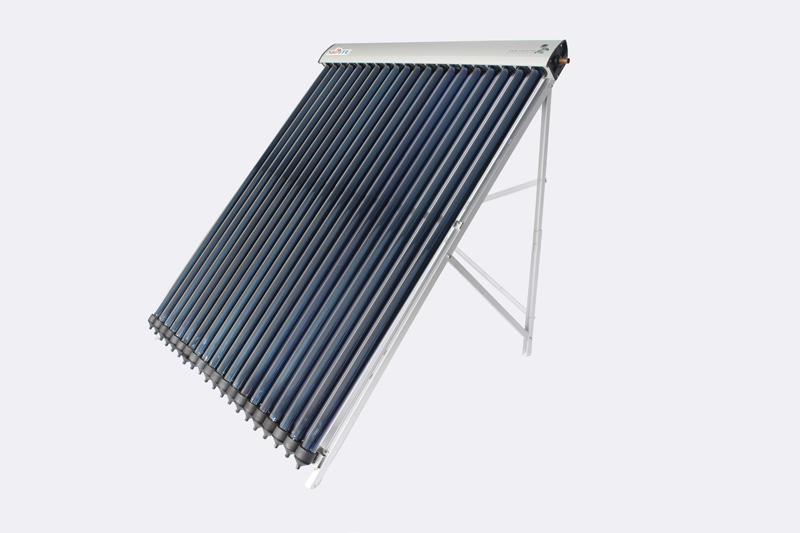

Heat pipe solar collector
Inquire NowDescription
The Heat Pipe Solar Collector SC-HP(SC-H) is a revolutionary solution for efficient solar water heating. Featuring twin-glass vacuum tubes that are both reliable and high-temperature resistant, this collector ensures optimal performance regardless of weather conditions. Unlike traditional systems, there is no water in the vacuum tube, allowing the system to continue functioning even if a tube is broken. The innovative red copper heat pipe is designed for one-way heat transfer, ensuring rapid heating with minimal heat loss, even in temperatures as low as -35℃. The aluminum alloy manifold and bracket not only boast corrosion resistance but also offer easy installation on both flat and sloping roofs. With superior thermal insulation properties from high-density polyurethane foaming or rock wool, this system is both eco-friendly and economical, helping to reduce fuel costs while improving environmental sustainability.
Specifications
| Feature | Details |
|---|---|
| Type | Heat Pipe Solar Collector |
| Vacuum Tube Material | Twin-glass |
| Heat Pipe Material | Red Copper |
| Heat Pipe Diameter | 14 mm |
| Temperature Resistance | -35℃ |
| Manifold Material | Aluminum Alloy |
| Insulation Material | High-density Polyurethane Foaming/Rock Wool |
| Manifold Testing Pressure | 1 MPa |
| Certification | Solar Keymark |
Additional Information
- High temperature resistant and anti-freezing properties.
- Eco-friendly design that improves environmental sustainability.
- Economical solution to reduce fuel costs.
