HEAVY DUTY DISC HARROW
Inquire NowDescription

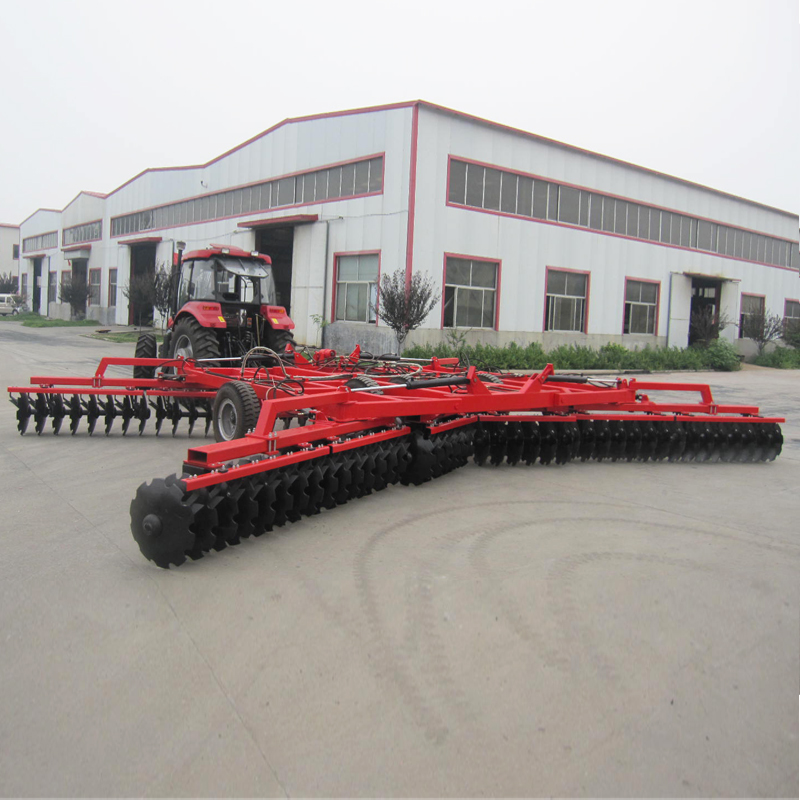

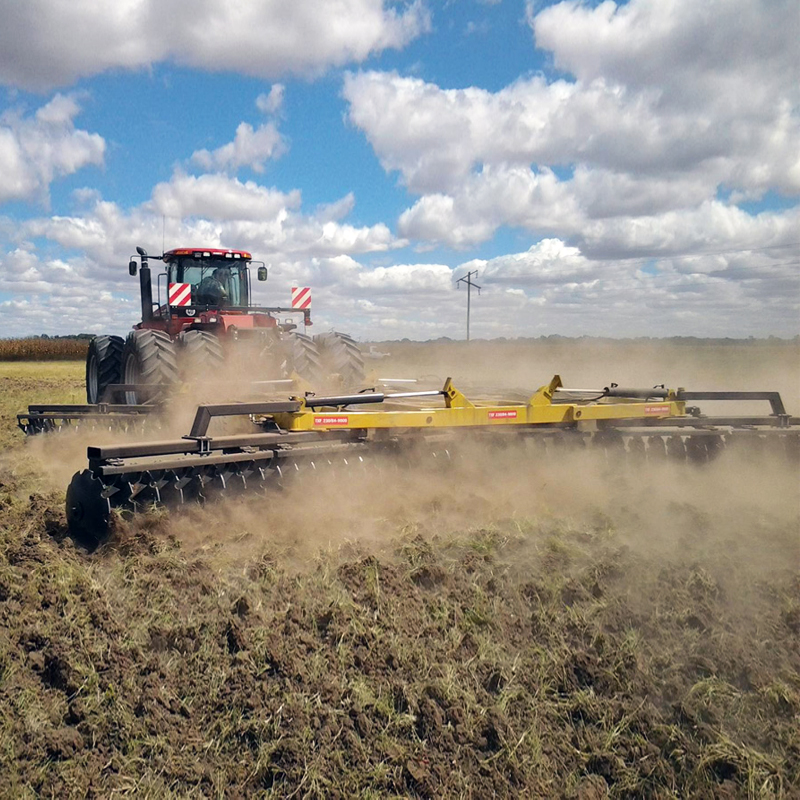

The 1BZD Hydraulic Folding Heavy Duty Disc Harrow is designed for efficient stubble ploughing and effective cultivation of heavy soils, making it an indispensable tool for modern farming. This robust machine excels in preparing land by effectively cutting through tough plant residues. The hydraulic lift wheels not only facilitate easy transport between fields but also enhance maneuverability during corner turnings, enabling swift operations directly from the tractor cabin. With user-friendly adjustments for working depth through the up and down movement of the wheels, this disc harrow combines functionality and convenience, ensuring optimal performance in various agricultural conditions.
Specifications
| Model | Number of Discs | Diameter of Disc (mm) | Working Width (mm) | Working Depth (mm) | Weight (kg) | Tractor (hp) |
|---|---|---|---|---|---|---|
| 1BZD-6.5 | 64 | 660 | 6500 | 180-220 | 7000 | 300 |
| 1BZD-7.5 | 72 | 660 | 7500 | 180-220 | 7200 | 350 |
| 1BZD-8.5 | 80 | 660 | 8500 | 180-220 | 7500 | 400 |
| 1BZD-9.0 | 84 | 660 | 9000 | 180-220 | 7650 | 400 |
| 1BZD-9.5 | 88 | 660 | 9500 | 180-220 | 8300 | 500 |
Additional Information
No additional information is available.
