Structure: Deep Groove
Type: Ball
Brand Name: CKG or as requirements
Bore Size: 20 mm
Outside Diameter: 52 mm
Model Number: 6203
Precision Rating: P0, P2, P3, P5, P6, P0, P2, P4, P5
Seals Type: Z, 2Z, RS, 2RS, RZ, 2RZ, OPEN
Number of Row: Single-row, double-row
Place of Origin: China
Material: Chrome steel, carbon steel, stainless steel
Cage: Brass cage, nylon cage, steel cage
Noise level: Z1, Z2, Z3, Z4
Seal type: Open, Z, 2Z, RZ, 2RZ, RS, 2RS
Lubrication: Oil, grease
Vibration: V1, V2, V3, V4
Internal clearance: C1, C2, C3, C4
Row number: Single-row
Keyword: Ball bearing

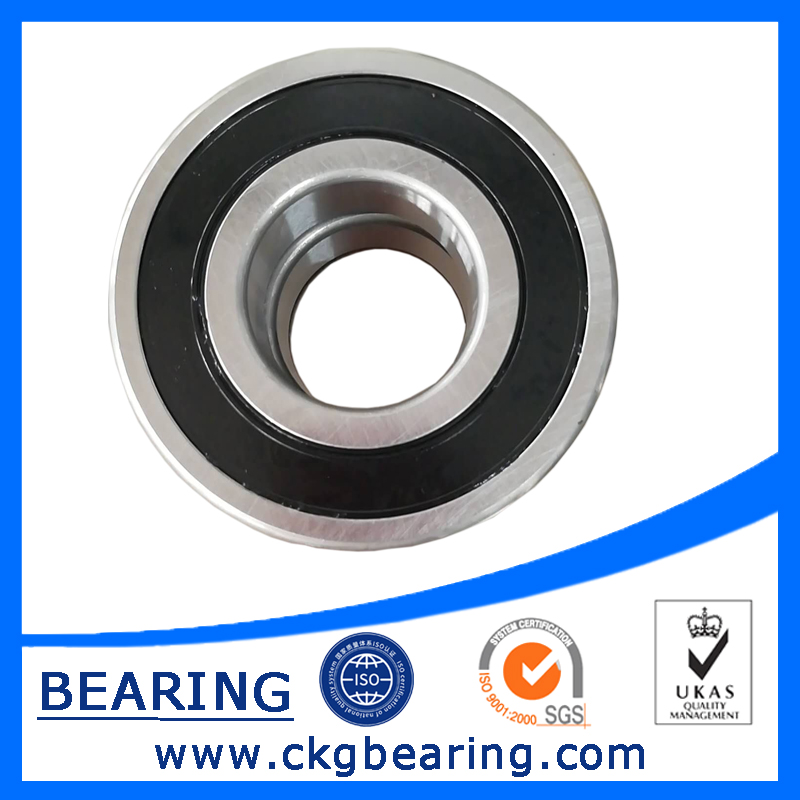

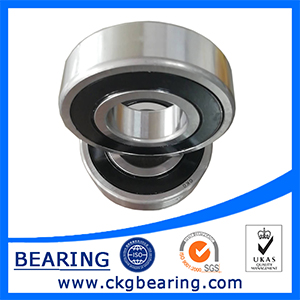

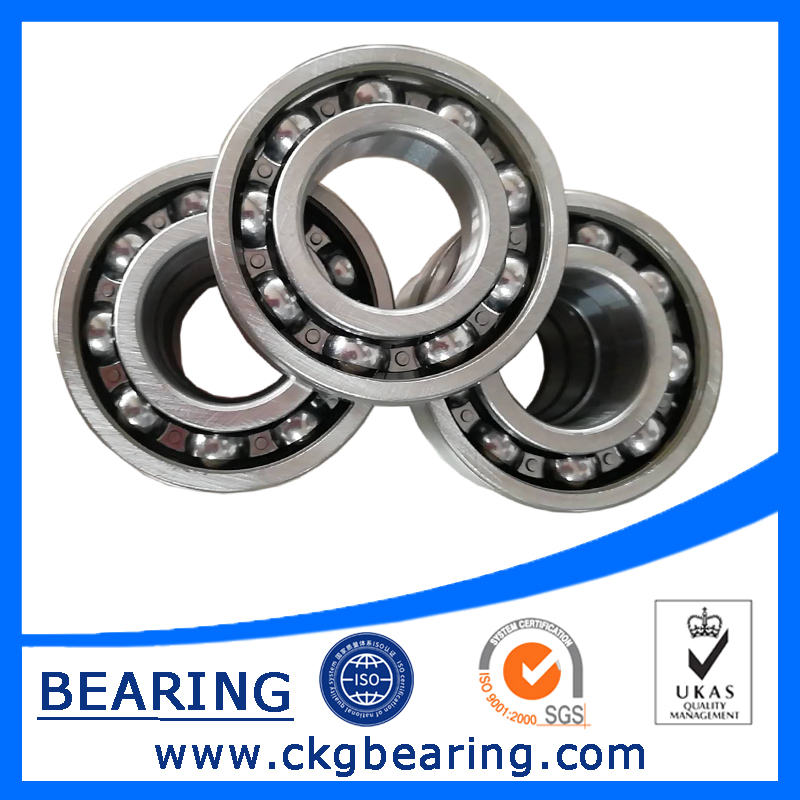

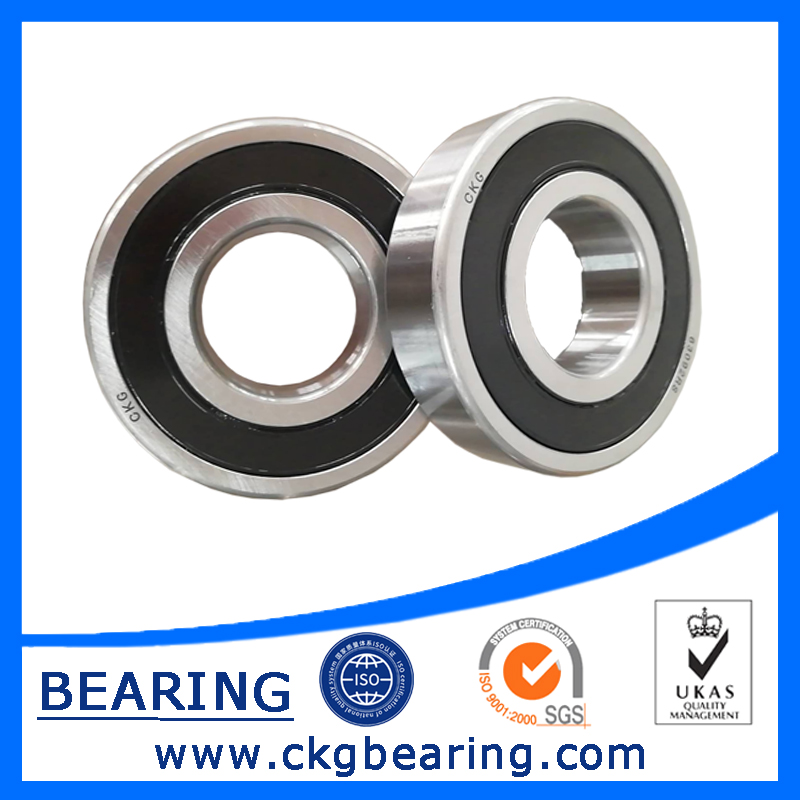

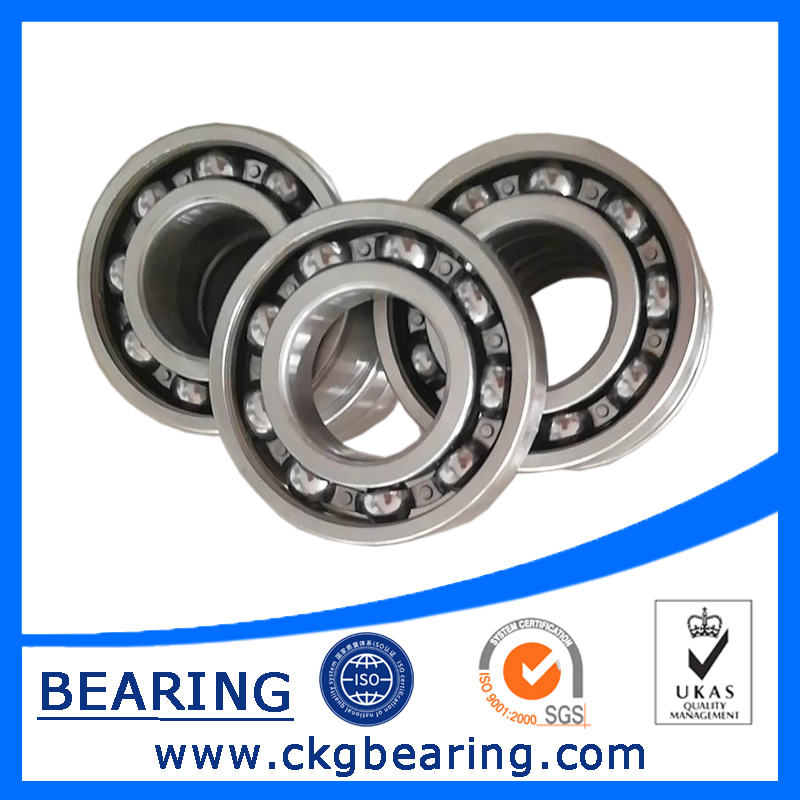

Deep Groove Ball Bearing

6201 6202 6203 6204 6205 6206

Bearing Steel: SKF, NSK, NTN,

Auto, Motorcycle, Home Electronics, Motor

No.1 Deep groove ball bearing Description:

Deep groove ball bearings of hebei Huanchi bearing manufacturing Co.,Ltd are the most typical rolling bearings with the characteristics of simply designed structures,convenience in operation and extensive application.They are designed as non-separable bearings.The raceways in both of the rings are in arc groove form which can carry radial load and double directions axial load. They are of features of low friction factor, and high limit rotational speed and they can be applied in the situations where high rotational speed and low noise and low vibration are required. Applications of these bearings can be found in automobiles, machine tools, motors, instruments, construction machinery, railway vehicle, agricultural machinery and other special machinery.

No.2 Deep Groove ball bearing of Hebei Huanchi Bearing Manufacturing Co.,Ltd’s Features:

1. Seals: Open Type, Sealed Type, Shielded Type;

2. Cage: Machined Brass Cage, Steel Cage, Plastic Cage;

3. Outer Ring: With our Without Snap Ring Groove;

4. Precision Grade: P0, P6, P5, P4;

5. Clearance Grsde: C2, C0, C3, C4, C5;

6. Vibration Grade: Z1V1, Z2V2, Z3V3.
