High Guardrail Contruction Roll Forming Machine
Inquire NowDescription
The High Guardrail Construction Roll Forming Machine is engineered for precision and efficiency in the production of guardrails. With a robust design and advanced technology, this machine caters to various customer needs with its long-lasting performance and exceptional quality. The professional engineering team is available to provide tailored designs and overseas technical guidance, ensuring optimal operation. This machine stands out due to its comprehensive quality control and reasonable pricing, making it a preferred choice for large companies across multiple countries. The in-house production of machine accessories not only reduces costs but also meets international safety export standards.
Main parameters include the ability to handle rolling materials with a width of 480mm and a thickness of 3-4mm using Q235A galvanized steel sheets. Operating at a speed of 10-12 meters per minute, this machine features 13 pairs of main rollers and 7 pairs of flattening rollers, all constructed from high-quality materials for maximum durability.
Specifications
| Parameter | Details |
|---|---|
| Rolling Material Specification | Width: 480mm; Thickness: 3-4mm; Q235A Galvanized Steel Sheet |
| Working Speed | 10 – 12 m/min |
| Roller Steps | 13 pairs main rollers & 7 pairs flattening rollers |
| Material of Roller | GCr15 Bearing Steel, Quenched, HRC 58°-62° |
| Main Shaft Material | Superior 45# Steel, Tempered |
| Main Shaft Diameter | ￠85 mm |
| Main Motor Power | 35 kW |
| Transmission | Double-row Chain Drive |
| Machine Structure | Wallboard |
| Flattening Motor Power | 2.2 kW |
| Hydraulic Motor Power | 11 kW, Pressure: 20 Mpa |
| Material of Punching and Cutting Mould | Cr12 |
| Cutting Blade Treatment | Heat-treated: HRC 58°-62° |
| Punching and Cutting Way | Hydraulic Driving, Flat Panel Punching, Cutting after Roll Forming |
| Electric Control System | PLC Frequency Control, Cut-to-length Error ≤ ±2mm |
| Machine Dimension | 13500mm × 2700mm × 1600mm |
Additional Information

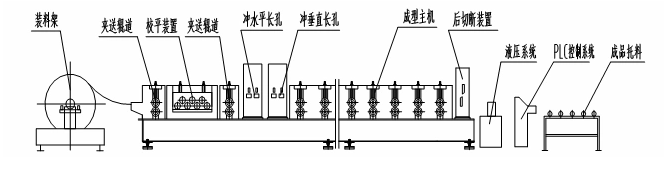

- Production Process: Manually uncoiling → Feeding & Correcting → Seven Rollers Flattening Device → Flat Panel Punching → Roll Forming → Cutting after Roll Forming → Finished Product
- Includes Manual Feeding Device (3 T capacity), Transmission, Flattening Device, Before-Punching Device (2 sets), Main Machine and Roller (including guide table), Cutting Device, Hydraulic System, Electric Control System, Run Out Table, etc.
