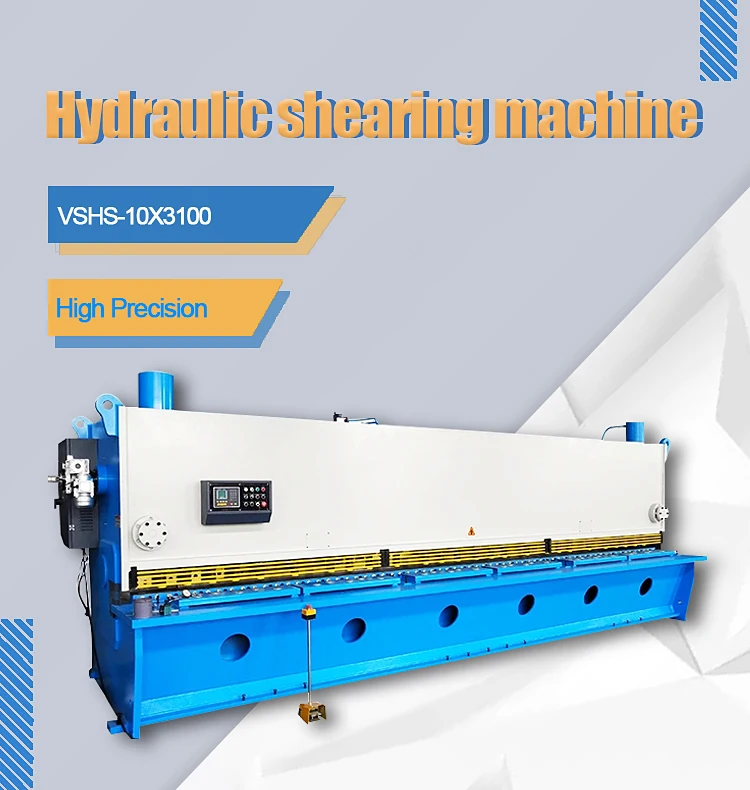

High Precision Hydraulic Guillotine Shearing Machine

Products Description

Brief Introduction

Stronger slider support for the metal sheet after cutting ( with Ball roller)
Backguage possible to control by NC control, And would change the Precision Ballscrew( HIWIN) (Optional)

Characteristic

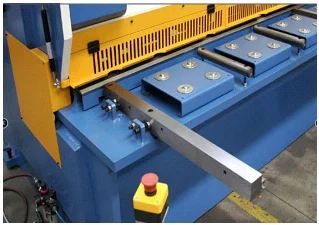

square front support arm with inch rullers. And with Angle adjustable function.
Pneumatic front protect guard for short sheet cut( Possible to open when cut short sheet) The cutting frame and machine body is assembled in monoblock after welding, it is processed by heating treatment, machining by CNC.

Floor Boring and Milling center, ensuring the rigidity and processing accuracy of the frame.

Standard accessories	Optional Accessories
Hydraulic EBM Germany Piping system	UL or CUL Standard Electrical parts and wiring system
Operation panel	4lighting guard
Two point laser safe guard	the Precision Ballscrew( HIWIN)
Electric Cabinet	CE Standard NC controller
Power-down memorization	MAPER( ITALY) NC controller

Operation panel, cutting angle adjustment by hydraulic

Blade clearance adjustment

Specification

Specification	Shearing Thickness	Shearing Width	Strokes	Backgauge Rang	Shearing Angler	Throat Height	Main Power
Specification	mm	mm	mm-1	mm	(°)	mm	KW
VSHS-6*2500	6	2500	10-35	20-600	1°30′	800	7.5
VSHS-6*3200	6	3200	8-35	20-600	1°30′	800	7.5
VSHS-6*4000	6	4000	7-35	20-600	1°30′	800	7.5
VSHS-6*5000	6	5000	6-25	20-800	1°30′	900	11
VSHS-6*6000	6	6000	5-25	20-800	1°30′	1000	11
