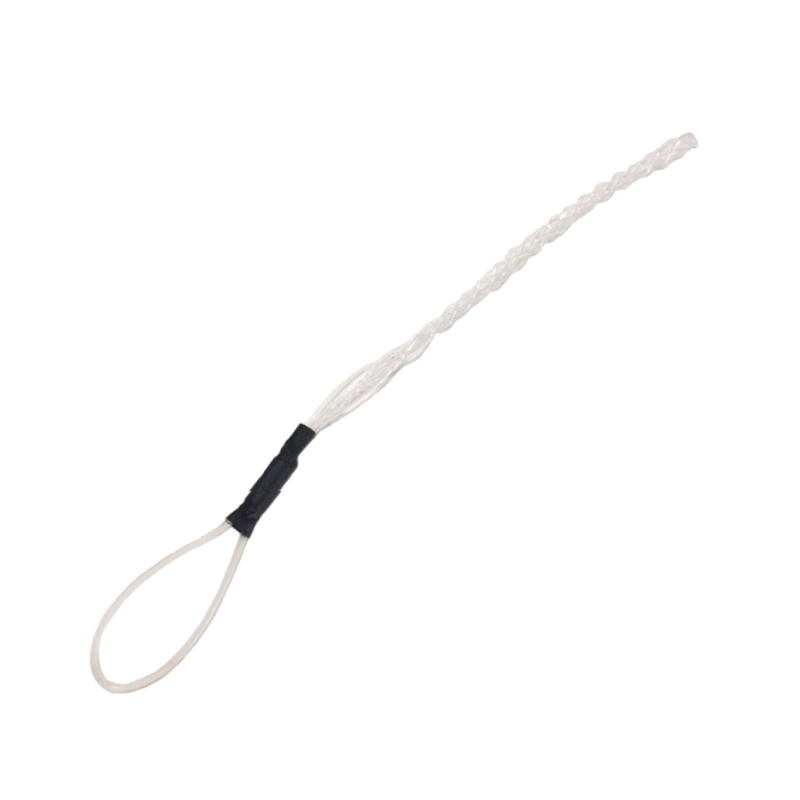

High quality closed mesh single eye nylon pulling grip
Inquire NowDescription
High Quality Closed Mesh Single Eye Nylon Pulling Grip is engineered for durability and performance. Made from high-strength, non-conductive nylon, these grips are designed for pulling either single cables or bundles of cables with ease. The braided weave design enhances strength and provides a positive holding power, making them versatile for various grip configurations. The installation process is straightforward, allowing for quick setup. These grips are particularly recommended for wiring fiber cables, ensuring a secure and reliable connection.
Specifications
| Part Number | Cable Diameter | Eye Length | Mesh Length | Approx Break Strength |
|---|---|---|---|---|
| NO38P | 3/8″(10.1-11.9mm) | 6″(152.4mm) | 6″(152.4mm) | 40 lbs. |
| NO12P | 1/2″(11.4-16.0mm) | 7″(177.8mm) | 10″(254.0mm) | 60 lbs. |
| NO58P | 5/8″(21.3-22.6mm) | 12″(304.8mm) | 10″(254.0mm) | 100 lbs. |
| NO78P | 7/8″(27.4-30.4mm) | 13″(330.2mm) | 17″(431.8mm) | 100 lbs. |
| NO114P | 1-1/4″(39.1-42.4mm) | 10″(254.0mm) | 24″(609.6mm) | 150 lbs. |
| NO158P | 1-5/8″(50.3-51.8mm) | 12″(304.8mm) | 27″(685.8mm) | 200 lbs. |
| NO214P | 2-1/4″(59.7-59.9mm) | 20″(508.0mm) | 27″(685.8mm) | 250 lbs. |
Additional Information
These grips are ideal for various applications, particularly in the wiring of fiber cables. Their robust design ensures reliability in demanding environments. For optimal performance, always check compatibility with your specific cable types before use.
