High Quality Good Price 2p 4p DIN Rail Changeover Switch
Inquire NowDescription
An IP66 DC isolator is an essential electrical switch designed to isolate direct current (DC) circuits from the system, ensuring safety and reliability. With its IP66 rating, this switch is dust-tight and can withstand high-pressure water jets from any direction, making it ideal for outdoor applications like solar panel systems and electric vehicle charging stations. The switch allows for safe disconnection during maintenance or emergencies, protecting against electrical shock and fire hazards.
The isolator typically features a robust switch body, a manual or remote-operable handle, and terminals for circuit connections. It may include additional functionalities such as a lockable handle and a visual indicator for switch position, ensuring ease of use and security.
Specifications
| Rated Voltage | 240/415V~ |
|---|---|
| Rated Current | 16, 20, 25, 32, 40A |
| Rated Frequency | 50/60Hz |
| Number of Poles | 1, 2, 3, 4P |

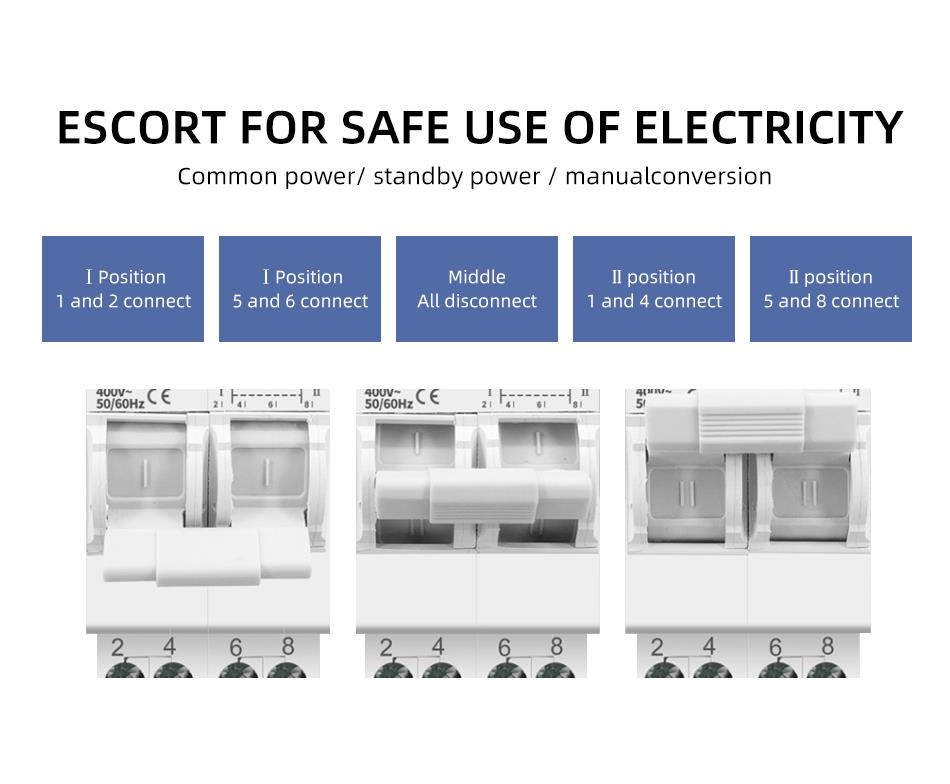

| Contact Form | 1-0-2 |
| Electrical Life | 1500 Cycles |
| Mechanical Life | 8500 Cycles |
| Protection Degree | IP20 |
| Ambient Temperature | -5°C to 40°C |
| Terminal/Cable Size | 50mm² |

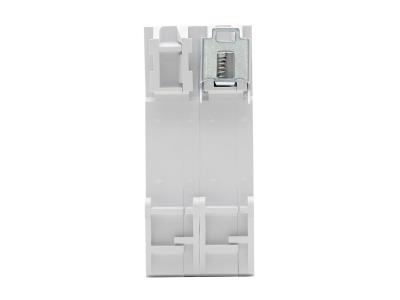

| Mounting | On DIN rail EN60715 (35mm) using a fast clip device |

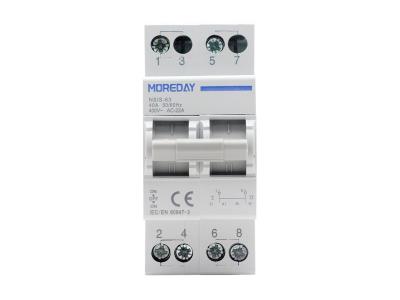

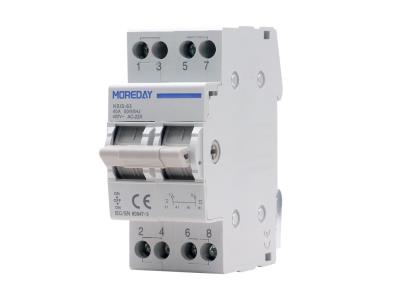

Detailed Photos
