good quality； full auotomatical

• Quantity(Sets)	1 – 1	>1
  Est. Time(days)	60	To be negotiated

Machines can be designed according to your requirement or the drawing you provide.

1.Product name

Gutter door roll forming machine/Machine of gutters

2. Working flow

Uncoiling→Sheet Guiding→Roll Forming→Measuring Length →Cutting the panel → Sheet to Support Table.

3. Technical parameters

Material Spec Color steel sheet;

Thickness 0.3-0.8 mm

Coil width 293mm

Main motor power: 4KW

Hydraulic station power 3KW

Working Speed 10 ~ 12 m/min.

Cutting Tolerance ≤±2.5mm ( length≤ 5000mm)

≤±3mm ( 5000mm < length ≤ 10000mm)

Passive Uncoiler Max. Capacity: 3000kgs

Type of cutting Roll-formed and length-set cutting

Roller Material High grade No.45 forged steel, with digital-controlled procession,

painted with hard chrome.

Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft

Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade Cr12 mould steel with quenched treatment

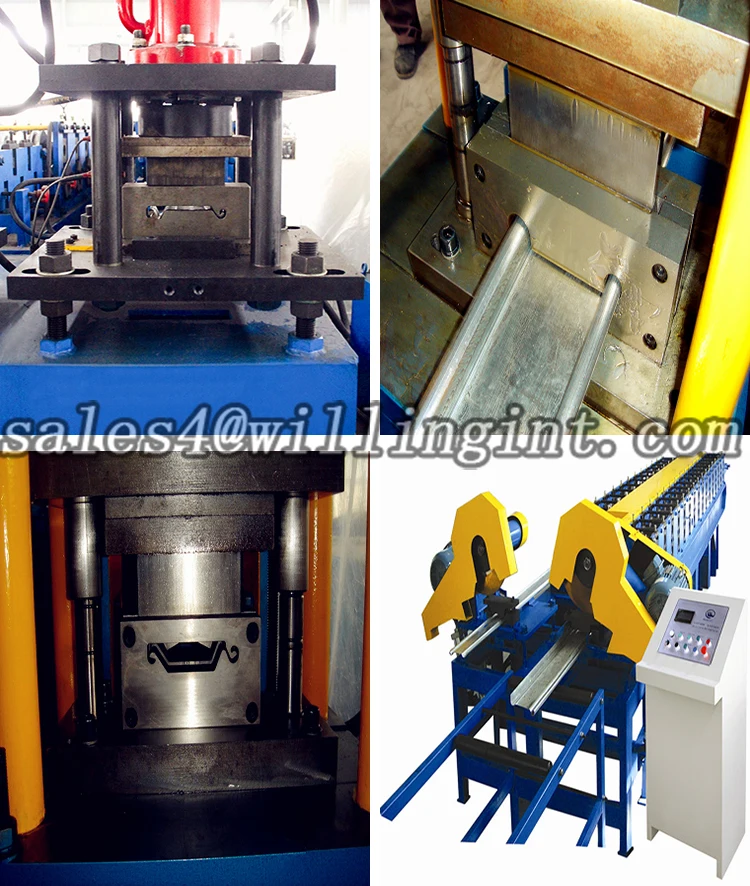

4. Machine pictures

8.Introduction
We can design and manufacture various types of machines according to the customers’ requirement and we could provide technical guidance, production, installation, debugging and maintenance service to customers.

9.Terms of payment
a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 60 days after received advance payment.
c.Guarantee period: 12 months.

10.Installation and training
a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer’s workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.

11.After service
a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.

12.Certificates
