High Quality Metal Roll Form Machine for UD CD UW CW Profiles
Inquire NowDescription

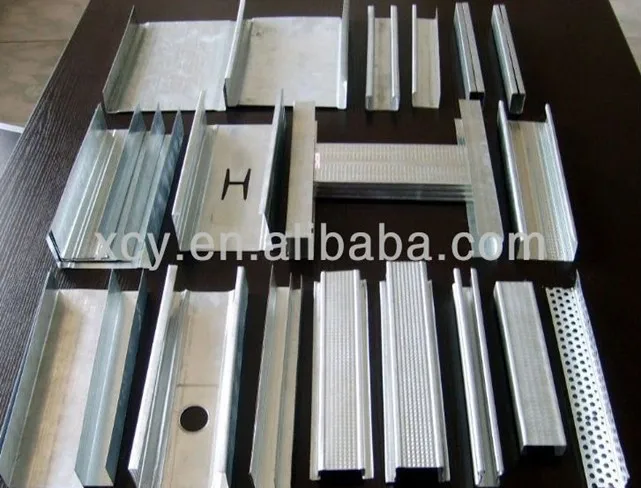

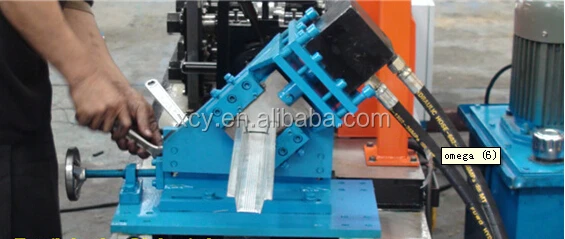

The High Quality Metal Roll Form Machine is designed specifically for producing UD, CD, UW, and CW profiles. This robust machine integrates advanced features to ensure efficiency and precision in metal forming. Key components include a Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body of the Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, and a PLC Control System. Its durable construction and high performance make it an essential tool for any metalworking operation.
Specifications
| Attribute | Details |
|---|---|
| Configurations | Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Power Supply | 3-Phase, 380V, 50Hz |
| Forming Speed | 12-14 m/min |
| Hydraulic Pressure | 18-20 MPa |
| Forming Size | 80-300 mm |
| Feeding Thickness | 1.5-3.2 mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80 mm |
| Backboard Thickness | 18 mm |
| Chain Size | 66 mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05 mm |
| Overall Size | 9500 × 1400 × 1350 mm |
| Total Weight | 6T |
Additional Information
This machine is engineered for high durability and efficiency, making it ideal for various metalworking tasks. It is recommended to follow the manual for maintenance and operation to ensure longevity and optimal performance.
