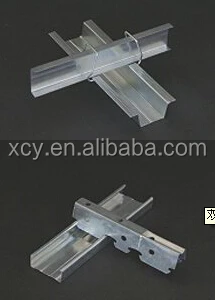

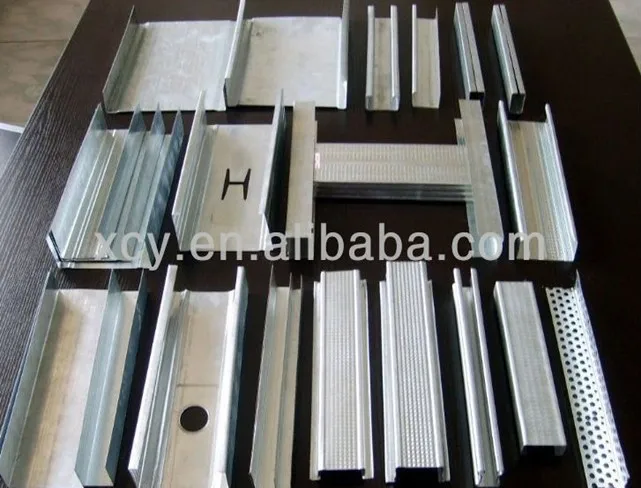

High Quality Metal Roll Form Machine for UD CD UW CW Profiles
Inquire NowDescription

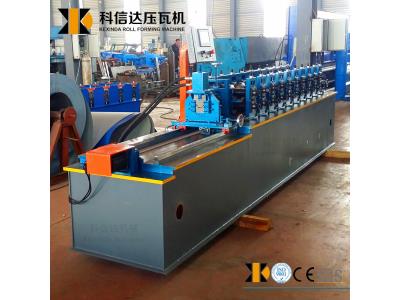

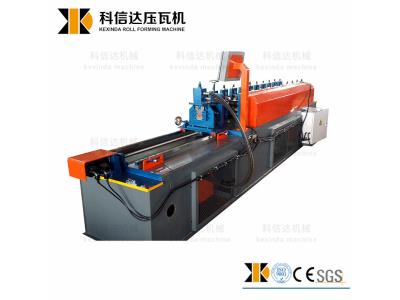

The High Quality Metal Roll Form Machine is expertly designed for producing UD, CD, UW, and CW profiles. This robust machine is equipped with a comprehensive set of features, including a Manual Uncoiler, Guiding Platform, Coil Strip Leveler, and a Main Body of Roll Forming Machine. It operates with precision through its PLC Control system and is powered by an Electro-Motor. Additional functionalities such as a Hole-Punch Device, Cutting Device, and Hydraulic Station enhance its performance, making it an essential tool for metal fabrication industries.
Specifications
| Configurations | Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, PLC Control |
|---|---|
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 18.5 kw |
| Pump Power | 15kw |
| Power Supply | 3-Phase, 380V, 50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80-300mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80mm |
| Backboard Thickness | 18mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500 × 1400 × 1350mm |
| Total Weight | 6T |
Additional Information
This machine is ideal for industries requiring precision metal profiling. Its user-friendly PLC control system simplifies operation and enhances efficiency. Regular maintenance is recommended to ensure optimal performance.
