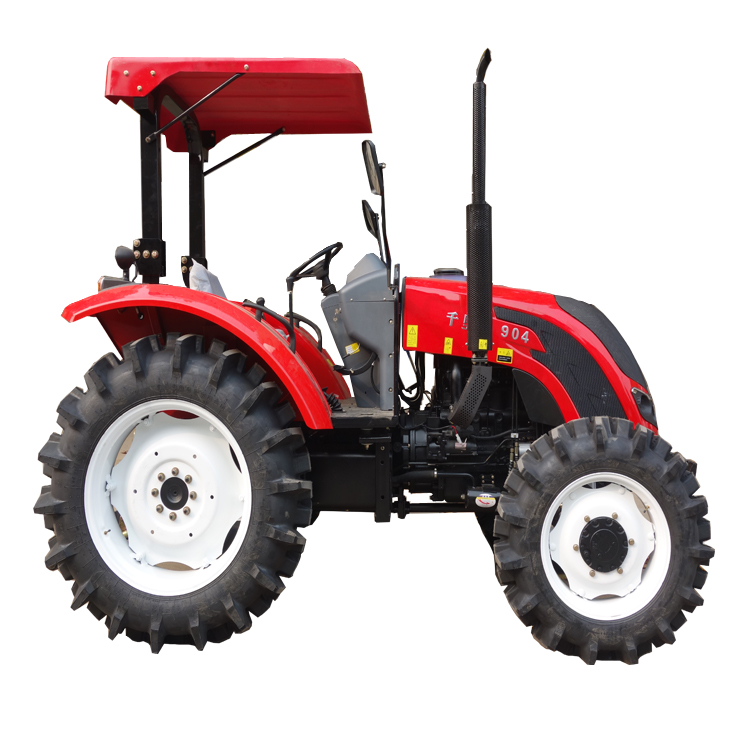

High Quality QLN904 Tractor
Inquire NowDescription
The High Quality QLN904 Tractor is designed for efficiency and performance, featuring a robust YTO/YUCHAI engine that ensures low fuel consumption while delivering high economic efficiency. This versatile farm tractor is equipped with a LUK 12-inch double-acting clutch, making it ideal for various agricultural tasks. With a generous 150L fuel tank, this tractor is built for long hours in the field without frequent refueling. The QLN904 also boasts a compact design with a PTO speed of 540/1000 rpm and a II Rear Mount 3-point linkage, ensuring it meets a wide range of farming needs.
Key advantages include:
- Efficient performance from a renowned engine brand.
- Durable, double-acting clutch for reliable operation.
- Ample wheel tread dimensions for stability: 1520 mm front and 1620 mm rear.
- Designed for compatibility with various agricultural implements.
Specifications
| Model | QLN-904 |
|---|---|
| Dimensions (mm) | 4280 × 2085 × 2925 |
| Wheel Tread (mm) | Front: 1520, Rear: 1620 |
| Min. Ground Clearance (mm) | 450 |
| Dry Mass (kg) | With Cab: 3915 |
| Engine Brand | YTO/YUCHAI |
| Engine Model | Direct-injection, water-cooled 4-cylinder diesel engine |
| Number of Cylinders | 4 |
| Cooling System Type | Water Cooled |
| Rated Power (kW) | 66.2 |
| Rated Speed (r/min) | 2200 |
| Fuel Tank Volume (L) | 150 |
| Clutch | LUK 12in., double-acting, independent, dry clutch |
| Gear Box | F16+R8 Shuttle Creeper Shift |
| Braking System | Static hydraulic pressure, multi-disc, wet |
| Front Tyre Model | 12.4-24 |
| Rear Tyre Model | 16.4-34 |
| Steering System | Hydraulic Steering |
Additional Information
For optimal performance, ensure regular maintenance of the engine and hydraulic systems. Use compatible attachments for various agricultural tasks to maximize the tractor’s capabilities.
