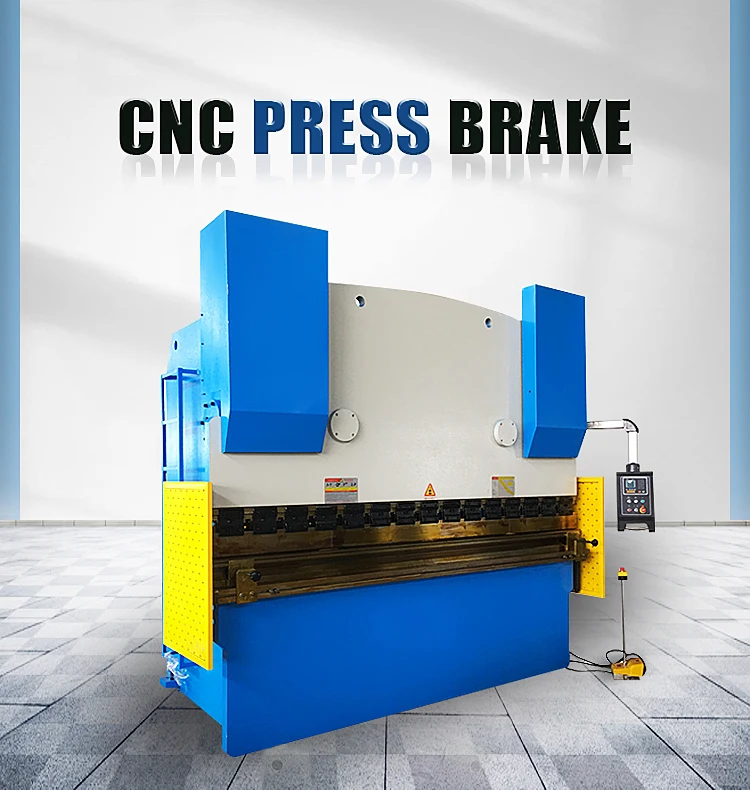

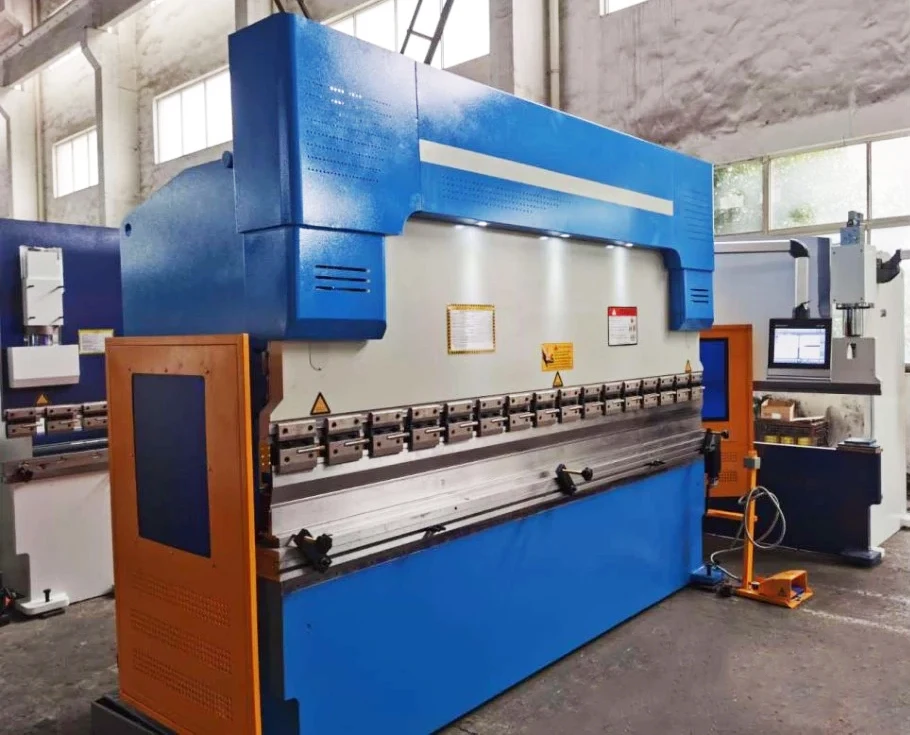

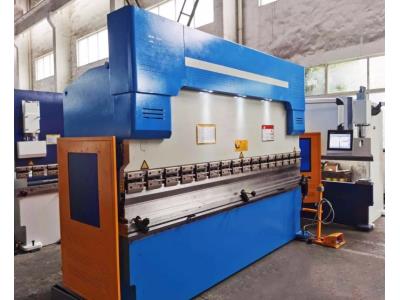

High Safety Level ALMACO Hydraulic CNC Press Brake Machine
Inquire NowDescription
The High Safety Level ALMACO Hydraulic CNC Press Brake Machine is designed for superior performance and safety in metal bending operations. With its robust construction and advanced hydraulic system, this machine ensures high precision and efficiency. The frame is meticulously assembled in a monoblock design after welding, processed with heating treatment and CNC floor boring and milling, guaranteeing outstanding rigidity and processing accuracy.
Key features include a complete hydraulic station that incorporates a small pilot operated check valve, overflow valve, safety valve, and rapid valve, all designed to prevent oil leakage and enhance operational safety. The machine is ideal for high-quality metal forming tasks, making it a vital addition to any manufacturing facility.
Specifications
| Attribute | Value |
|---|---|
| Model | HPC 1000/9000 |
| Pessing force (KN) | 1750 |
| Working length (mm) | 3100 |
| Distance between housings (mm) | 2600 |
| Depth of throat (mm) | 400 |
| Stroke of the ram (mm) | 200 |
| Approaching speed (mm/s) | 110 |
| Working Speed (mm/s) | 8.8 |
| Returning speed (mm/s) | 86 |
| Distance between table and ram (mm) | 450 |
| Motor power (kw) | 11 |
| Weight (kg) | 10500 |
| Dimensions (L*W*H mm) | 9100 * 4370 * 9100 |
Additional Information
Overseas after-sales service outlets are available, including locations in Canada, Egypt, and Algeria to provide support and maintenance for your machine.
