Description
The High Speed CNC Wire Cutting EDM Machine AZ Series is designed for precision and versatility in metal processing. This advanced machine excels in cutting a wide array of conductive materials, including super-hard alloys and stainless steel. The DK77 series does not impose strict requirements on the properties of the processed metals, making it suitable for various applications.
This machine is ideal for crafting intricate molds used in rubber and plastic production, as well as punch dies. Its capability to handle fragile and ductile materials allows for the machining of complex shapes, including tapered and specially-shaped components.
Specifications
| Type | Worktable Size (mm) | Table Travel (mm) | Max. Workpiece Thickness | Total Weight (kg) | Overall Dimensions (mm) |
|---|---|---|---|---|---|
| DK7725AZ | 520 × 336 | 320 × 250 | 400 (330) | 1100 | 1400 × 1060 × 1500 |
| DK7732AZ | 576 × 366 | 400 × 320 | 400 (330) | 1300 | |
| DK7740AZ | 720 × 460 | 500 × 400 | 400 (330) | 1700 | |
| DK7750AZ | 846 × 555 | 630 × 500 | 500 (400) | 2500 | |
| DK7763AZ | 1100 × 720 | 800 × 630 | 500 (400) | 4000 | |
| DK7780AZ | 1430 × 900 | 1200 × 800 | 450 (350) | 5000 | |

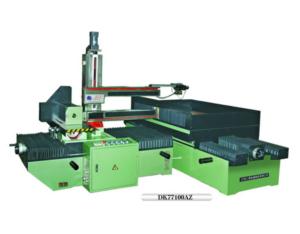

| DK77100AZ | 1430 × 1100 | 1200 × 1000 | 450 (350) | 5500 | |
| DK77120AZ | 2280 × 11280 | 1200 × 1600 | 500 | 6000 |
