High Speed CNC Wire Cutting EDM Machines
Inquire NowDescription
The DK77 series CNC EDM wire-cutting machines are engineered for high-speed precision and versatility, capable of processing all conductive materials without special requirements. This includes super-hard and hard alloys, as well as quenched materials, making it an ideal solution for various industrial applications. With a focus on efficiency and accuracy, these machines are designed to enhance productivity and deliver exceptional results in wire cutting operations.
Specifications
| Type | Worktable Size (mm) | Table Travel (mm) | Max. Workpiece Thickness (mm) | Total Weight (kg) | Overall Dimensions (mm) |
|---|---|---|---|---|---|
| DK7725AZ | 520×336 | 320×250 | 400(330) | 1100 | 1400×1060×1500 |

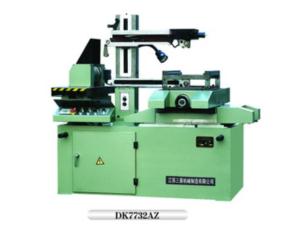

| DK7732AZ | 576×366 | 400×320 | 400(330) | 1300 | 1520×1140×1500 |

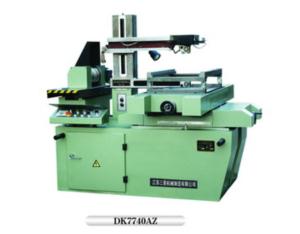

| DK7740AZ | 720×460 | 500×400 | 400(330) | 1700 | 1680×1390×1540 |
| DK7750AZ | 846×555 | 630×500 | 500(400) | 2500 | 1870×1590×1660 |
| DK7763AZ | 1100×720 | 800×630 | 500(400) | 4000 | 2280×1810×1780 |
| DK7780AZ | 1430×900 | 1200×800 | 450(350) | 5000 | 2500×2500×1500 |
| DK77100AZ | 1430×1100 | 1200×1000 | 450(350) | 5500 | 2500×2800×1500 |
| DK77120AZ | 2280×11280 | 1200×1600 | 500 | 6000 | 3180×2700×2030 |
