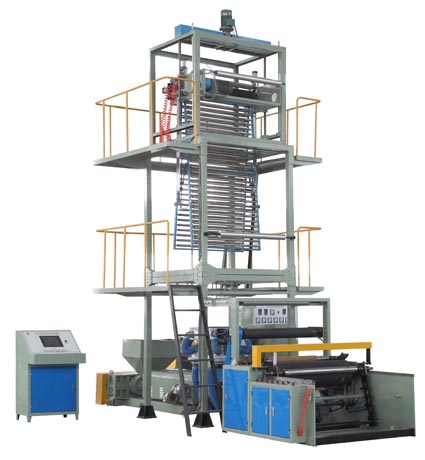

High Speed Film Blowing Machine
Inquire NowDescription
The High Speed Film Blowing Machine is designed for producing high-quality films from various materials, including HDPE, LDPE, dissoluble plastic, and recyclable plastic. This advanced machine features an edge folding device, making it suitable for processing vest bags and parallel bags. With a compact structure and user-friendly operation, it occupies less space while delivering exceptional performance. The SL-65-1000 model is ideal for creating both roll and sheet films, while the SL-80-1500 model is versatile enough for producing printing package films, export packaging, and agricultural films.
Specifications
| Model | Screw Diameter | Screw Length Proportion | Screw Material | Blowing Material | Film Blowing Width | Film Blowing Thickness | Output | Total Power | Total Weight | Overall Size (L*W*H) |
|---|---|---|---|---|---|---|---|---|---|---|
| SL-65-1000 | 65mm | 30:1 | 38 CrMoal surface with nitride, with special mixed segment | HDPE, LDPE, LLDPE biodegradable and reproducible material | 600-1000 mm | LDPE: 0.012mm-0.15mm, HDPE: 0.01mm-0.1mm | 30-70kgs/h | 50kw | 4500kgs | 6800*2800*5600 mm |
| SL-80-1500 | 80mm | 30:1 | 38 CrMoal surface with nitride, with special mixed segment | HDPE, LDPE, LLDPE biodegradable and reproducible material | 1000-1500 mm | LDPE: 0.012mm-0.15mm, HDPE: 0.01mm-0.1mm | 30-90kgs/h | 76kw | 5600kgs | 7100*3200*7200 mm |
Additional Information
For further inquiries, please contact Miss Mindy via email or phone.
