Description
Introducing the High-Speed Light Keel Roll Forming Machine, designed for efficiency and precision in producing various profiles for construction and manufacturing. Capable of reaching an impressive speed of 70 meters per minute, this machine is ideal for creating lightweight steel frames and components, including angle, omega, stud, track, and furring profiles. The machine’s versatility allows it to cater to diverse construction needs, making it a valuable asset for modern fabrication workshops.
Final Products for Reference:

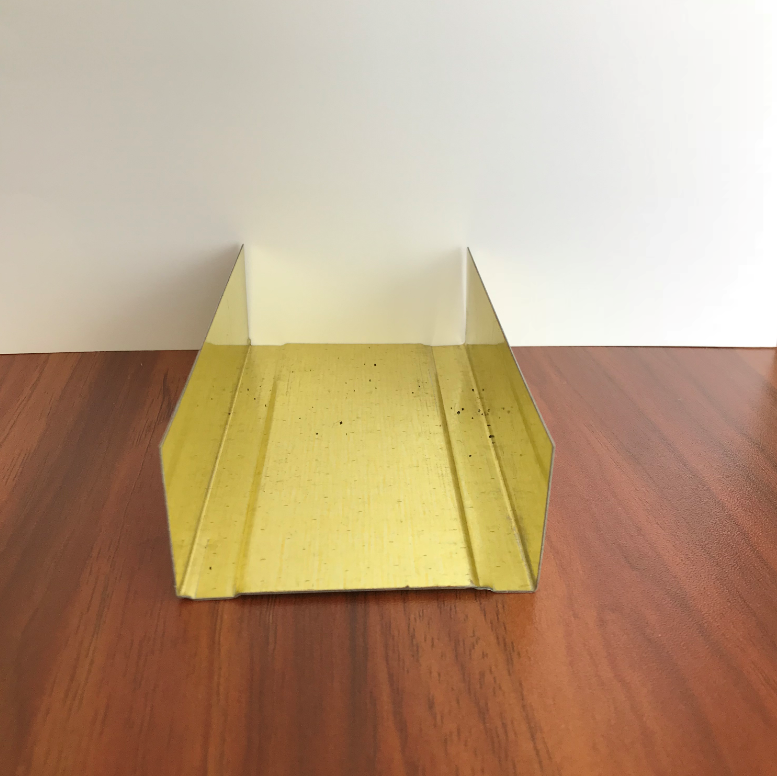

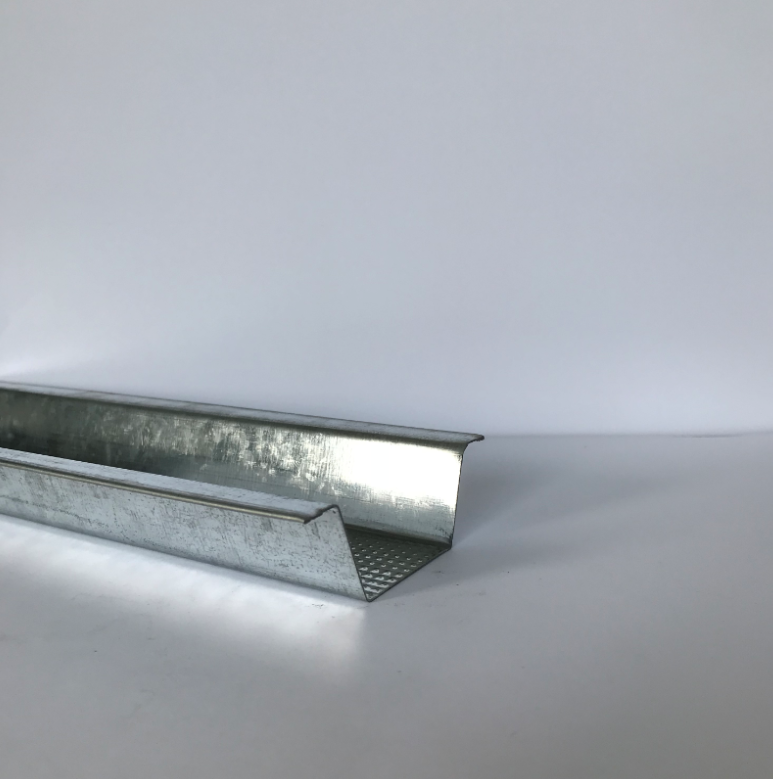

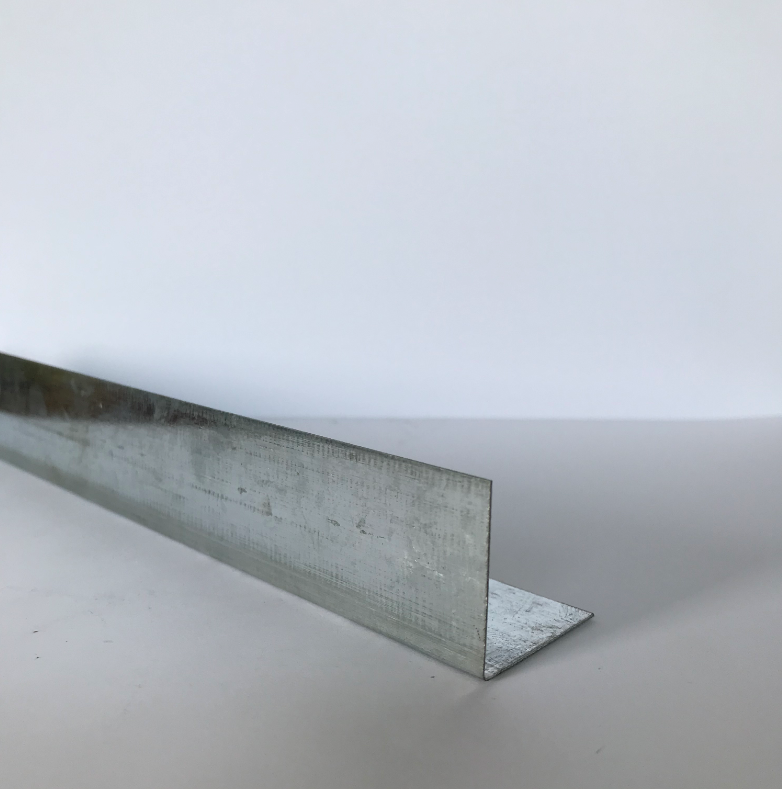

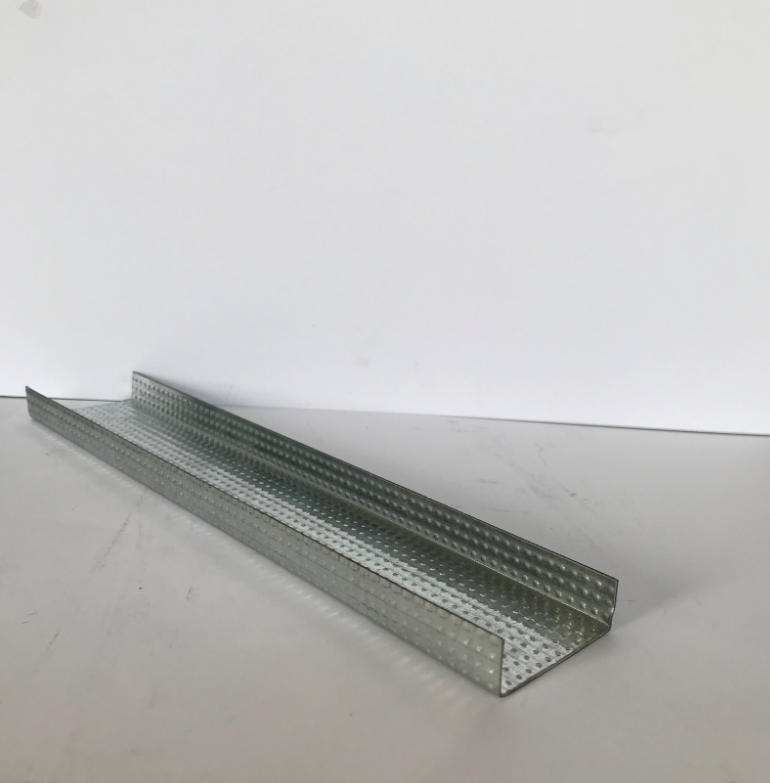

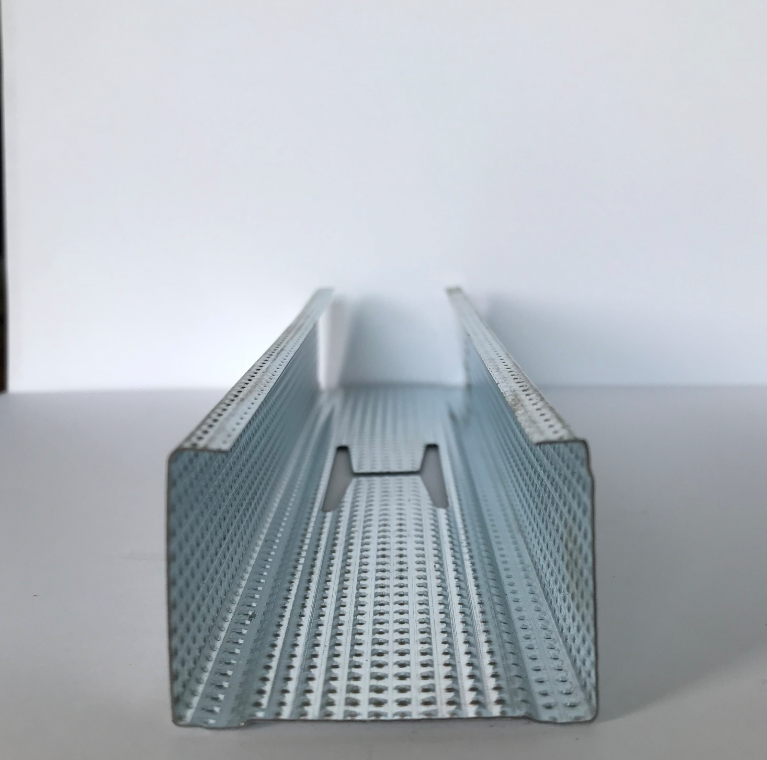

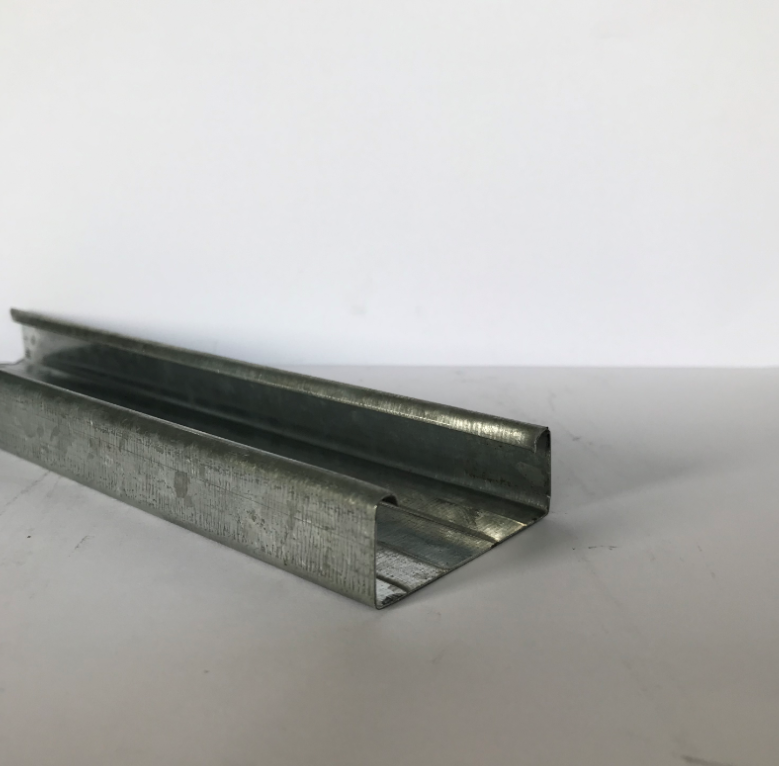

| Angle | Omega | Stud | Track | 38 Main Furring | 50 Furring |
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
Specifications
| Parameter | Details |
|---|---|
| Material | Galvanized strip |
| Thickness | 0.2-1mm |
| Roller Stations | 10-14 rollers |
| Speed | 70m/min |
| Shaft Material and Diameter | 45# steel with chrome, 50mm |
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Main Power | 7.5KW |
| Driven | Gear box |
| Collection Table | Automatic |
Additional Information

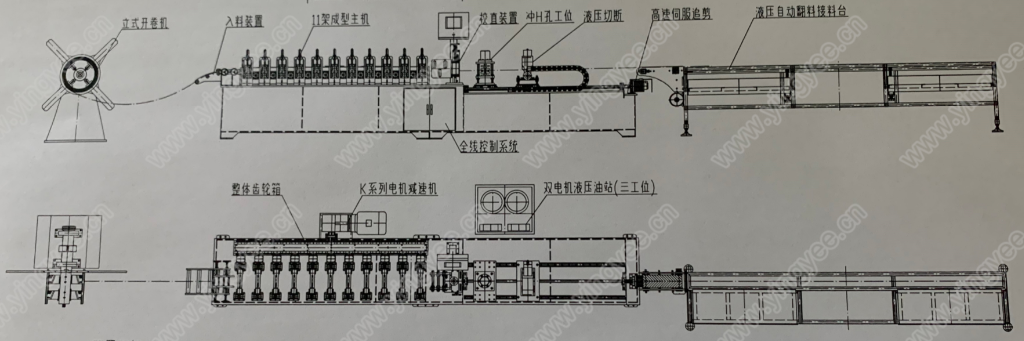

Machine Technical Process:
Operational Features:
| Add Oil | Automatic |
| Noise | No |
