High speed stud track and drywall forming machine
Inquire NowDescription
The High-Speed Stud Track and Drywall Forming Machine is an innovative solution designed for efficiency and precision in the construction industry. Operating at a remarkable speed of 70m/min, this machine produces various profiles, including angle, omega, stud, and track, with minimal noise thanks to its advanced gearbox-driven mechanism. Engineered to handle a range of materials, it offers versatility for operators, making it essential for modern drywall applications.
Equipped with up to 14 roller stations, it ensures consistent production quality and is suitable for creating 38 main and 50 furring profiles. Whether you’re engaged in large-scale projects or smaller constructions, this machine enhances productivity while maintaining a silent operation and an automatic oiling system.

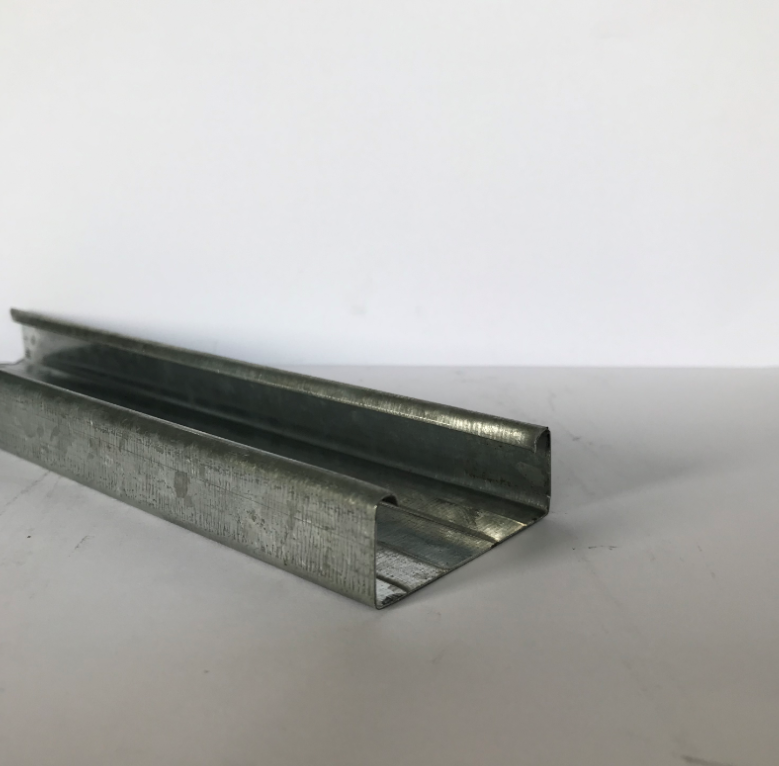

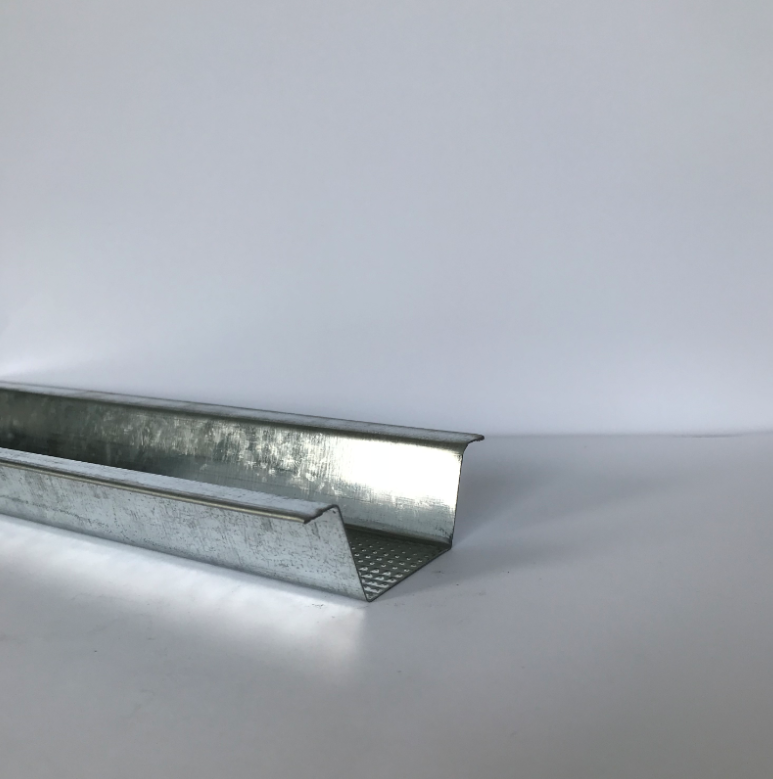

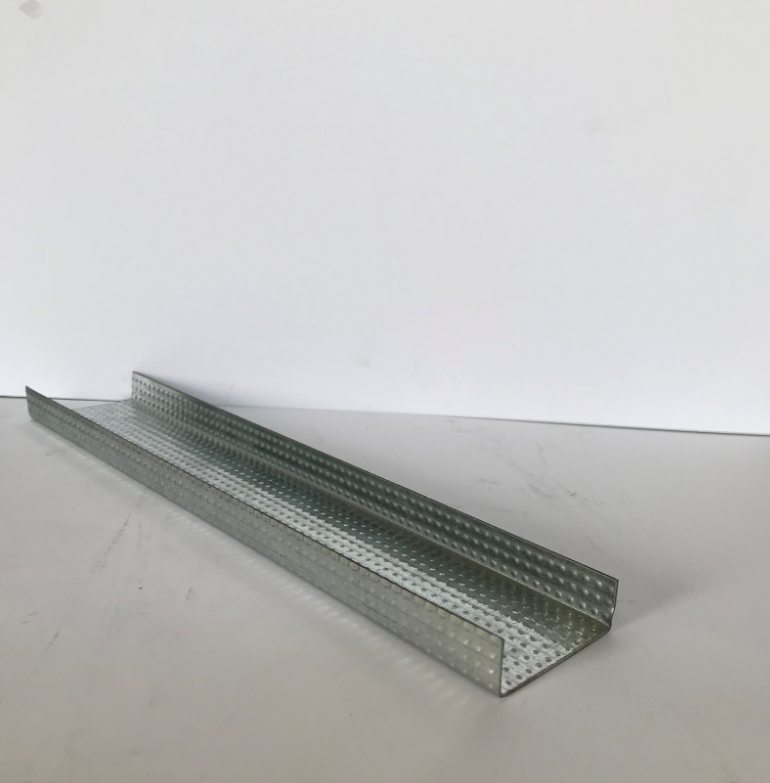

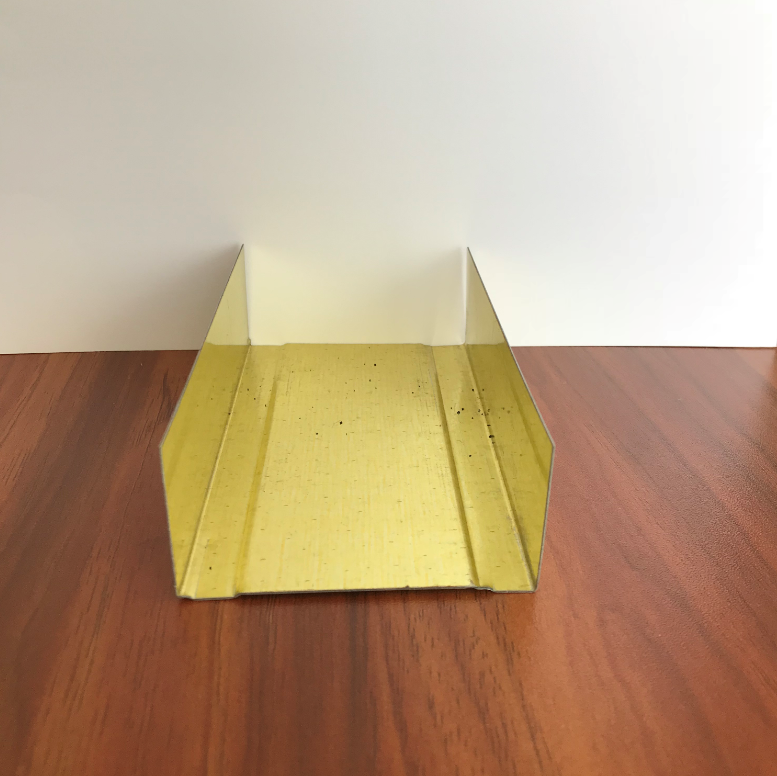

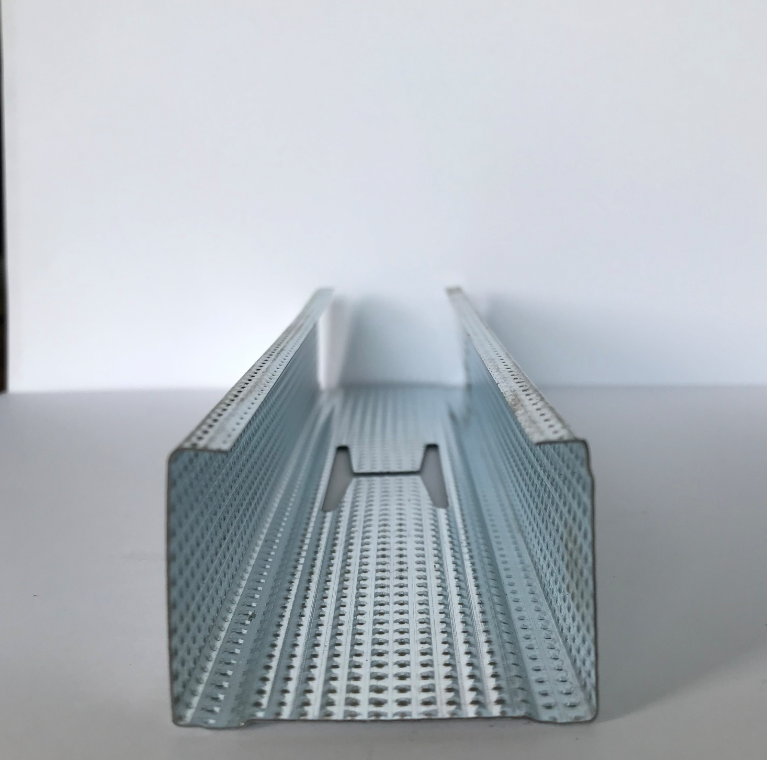

Visualize the final products it can produce:
| Profile Type |
|---|

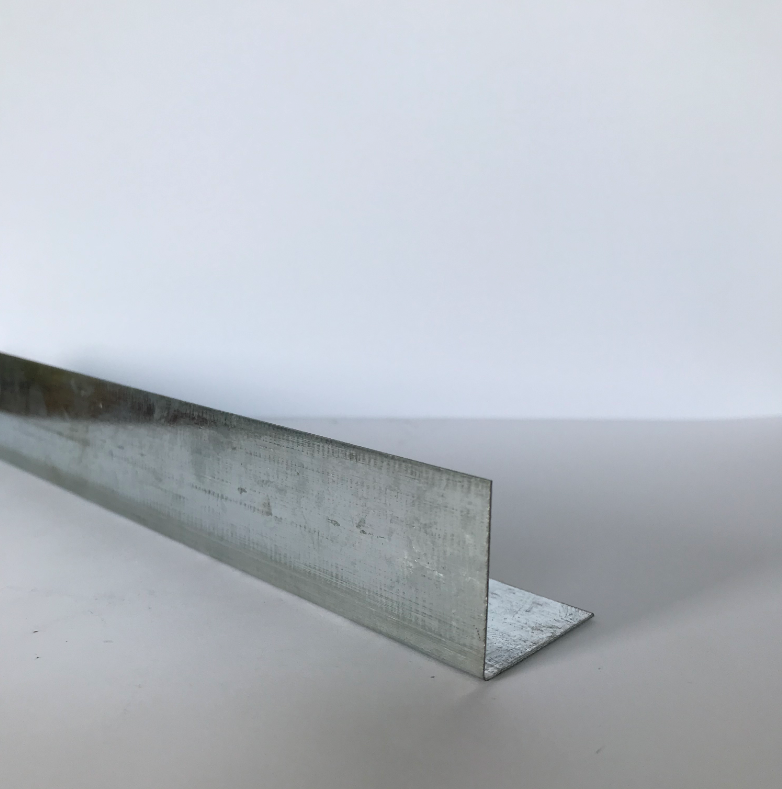

| Angle |
| Omega |
| Stud |
| Track |
| 38 Main Furring |
| 50 Furring |
Specifications
| Feature | Details |
|---|---|
| Material | Galvanized strip |
| Thickness | 0.2-1mm |
| Roller Stations | 10-14 rollers |
| Speed | 70m/min |
| Shaft Material and Diameter | 45# steel with chromed, 50mm |
| Roller Material | CR12 |
| Cutter Material | CR12 |
| Main Power | 7.5KW |
| Driven | Gear box |
| Collection Table | Automatic |
| Add Oil | Automatic |
| Noise | No |
Additional Information
The machine is designed to enhance operational efficiency with its automatic features, creating a user-friendly experience. Its silent operation makes it ideal for environments where noise reduction is crucial.
