High Volume Low Speed Ceiling Fan for Restaurant Air Ventilation
Inquire NowDescription

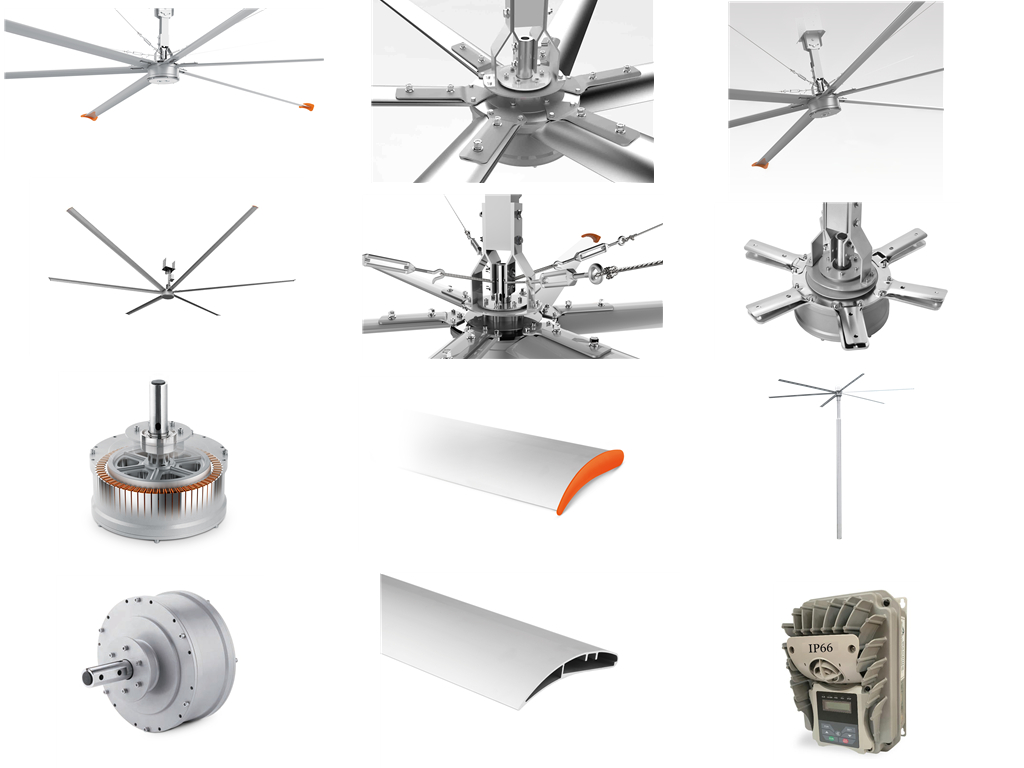

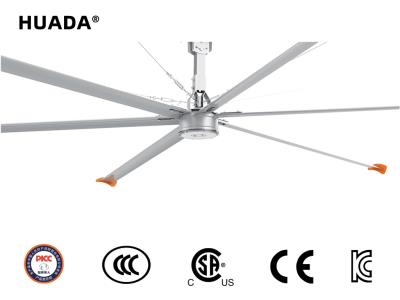

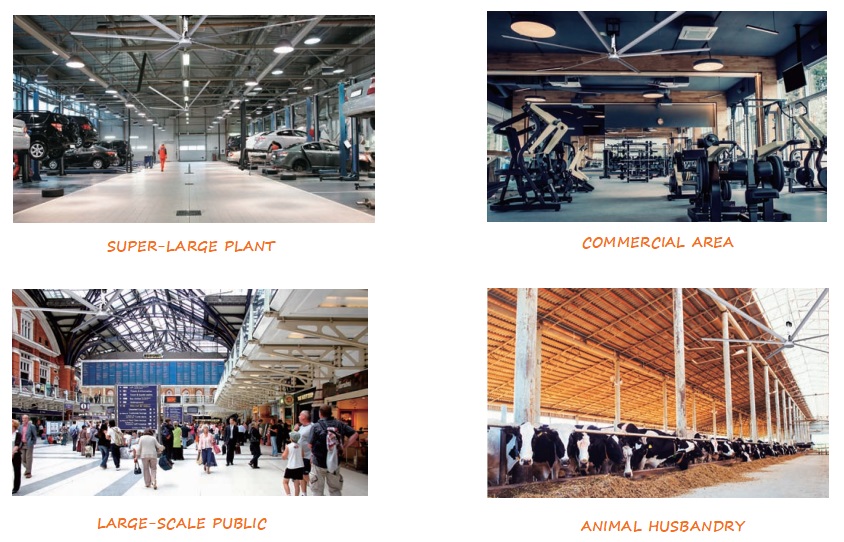

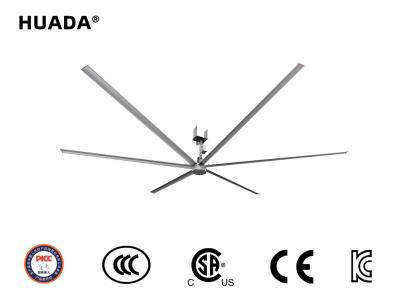

The Huada HDS series smart permanent magnet large ceiling fan is designed specifically to enhance the comfort of working environments. It utilizes a self-designed variable frequency speed control mechanism powered by a high-efficiency, energy-saving permanent magnet external rotor motor. This innovative fan operates quietly, with a compact structure that is both lightweight and aesthetically pleasing. Ideal for a wide range of applications, including industrial plants, logistics warehouses, waiting rooms, exhibition halls, and sports facilities, it effectively circulates airflow to create a comfortable atmosphere reminiscent of a natural breeze.
Specifications
| Model | Diameter (m) | Diameter (ft) | Power (KW) | Horsepower (HP) | Voltage (V) | Frequency (HZ) | Air Volume (m³/min) | Rotating Speed (rpm) | Number of Leaves (Pcs) | Noise (dB) | Motor Weight (kg) | Ceiling Fan Weight (kg) | Effective Area (m²) | Coverage Area (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDS-3 | 3 | 10 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 4000 | 120 | 5/6 | 38 | 18 | 35 | 150 | 250 |
| HDS-3.7 | 3.7 | 12 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 5000 | 100 | 5/6 | 38 | 18 | 38 | 230 | 380 |
| HDS-4.3 | 4.3 | 14 | 0.75 | 1 | 220-240/380-460 | 50/60 | 7000 | 90 | 5/6 | 38 | 25 | 46 | 256 | 450 |
| HDS-5 | 5 | 16 | 0.75 | 1 | 220-240/380-460 | 50/60 | 10000 | 80 | 5/6 | 38 | 25 | 49 | 300 | 500 |
| HDS-5.5 | 5.5 | 18 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11000 | 70 | 5/6 | 38 | 48 | 99 | 500 | 900 |
| HDS-6.1 | 6.1 | 20 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11500 | 60 | 5/6 | 38 | 48 | 103 | 600 | 1000 |
| HDS-6.7 | 6.7 | 22 | 1.5 | 2 | 220-240/380-460 | 50/60 | 12000 | 55 | 5/6 | 38 | 48 | 107 | 650 | 1300 |
| HDS-7.3 | 7.3 | 24 | 1.5 | 2 | 220-240/380-460 | 50/60 | 13000 | 50 | 5/6 | 38 | 58 | 111 | 700 | 1500 |
Additional Information
Other specifications and models can be customized according to customer needs.
