highway guard roll forming machine

Inquire Now

#### **Description**
The highway guard roll forming machine is an innovative solution designed to create highway guard panels and roof sheets with precision and efficiency. This robust machinery is equipped to handle various metal roofing sheet designs, ensuring high-quality production tailored to specific user requirements. With a focus on durability and performance, this machine features advanced technical parameters that support a range of applications in the metalworking industry.

#### **Specifications**

Attribute Details
Main Motor Power 18.5KW
Hydraulic Station Power 11KW
Hydraulic Oil Pump CB-E310
Sprocket P-50.8
Roller Station 16
Yield Strength 32MPa
Diameter of Principal Axis 95MM
Material of Roller 45# steel hard chrome plating
Processing Speed 8m/min
Thickness 0.3-4mm
Installation Dimension (L*W*H) 10.5*1.4*1.2M
Material of Blade Cr12
Total Weight 10T
Equipment Parts Include 5T decoiler, roll forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter

#### **Workflow**

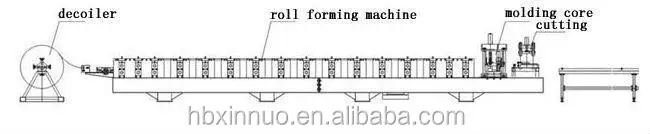

Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table
