highway guard roll forming machine
Inquire Now#### **Description**

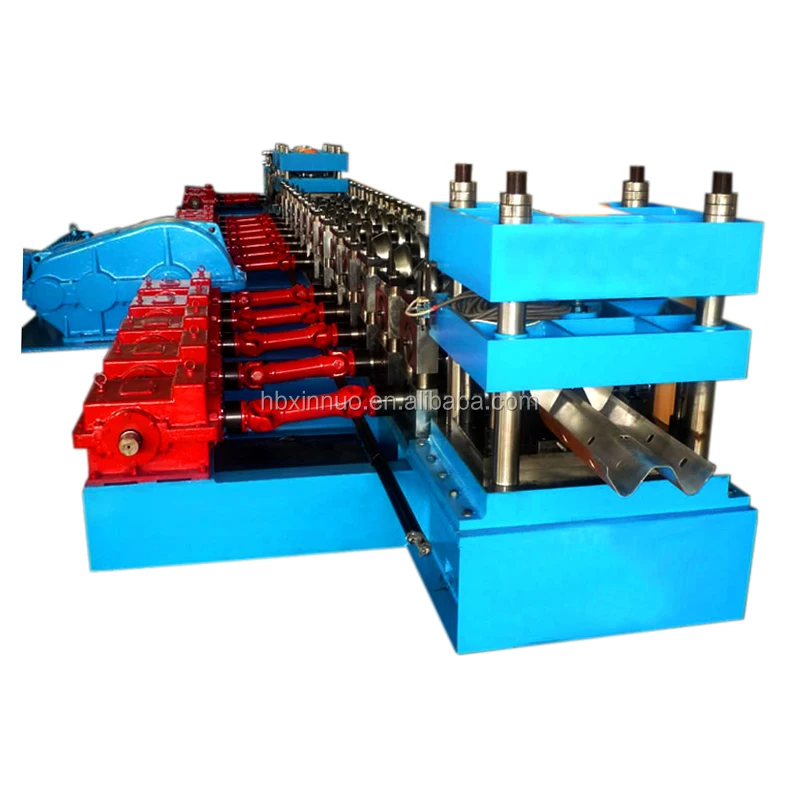

The Highway Guard Roll Forming Machine is an advanced piece of machinery designed for the efficient production of highway guard panels and metal roofing sheets. This robust equipment is tailored to meet the specific requirements of users, ensuring high-quality output with exceptional precision. It features a powerful main motor with a capacity of 18.5KW and a hydraulic station that operates at 11KW, allowing for seamless operation and reliability. The system incorporates a hydraulic oil pump and a precise cutting mechanism to enhance productivity. Ideal for manufacturers in the construction and infrastructure sectors, this machine guarantees durability and performance.
#### **Specifications**
| Feature | Specification |
|---|---|
| Main Motor Power | 18.5KW |
| Hydraulic Station Power | 11KW |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-50.8 |
| Roller Station | 16 |
| Yield Strength | 32MPa |
| Diameter of Principal Axis | 95MM |
| Material of Roller | 45# steel hard chrome plating |
| Processing Speed | 8m/min |
| Thickness | 0.3-4mm |
| Installation Dimensions (L*W*H) | 10.5*1.4*1.2M |
| Material of Blade | Cr12 |
| Total Weight | 10T |
| Equipment Parts | Includes: 5T decoiler, roll forming machine, hydraulic cutter, hydraulic station, electric control system, counter. |
#### **Workflow**

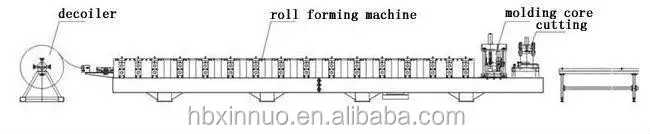

Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table
