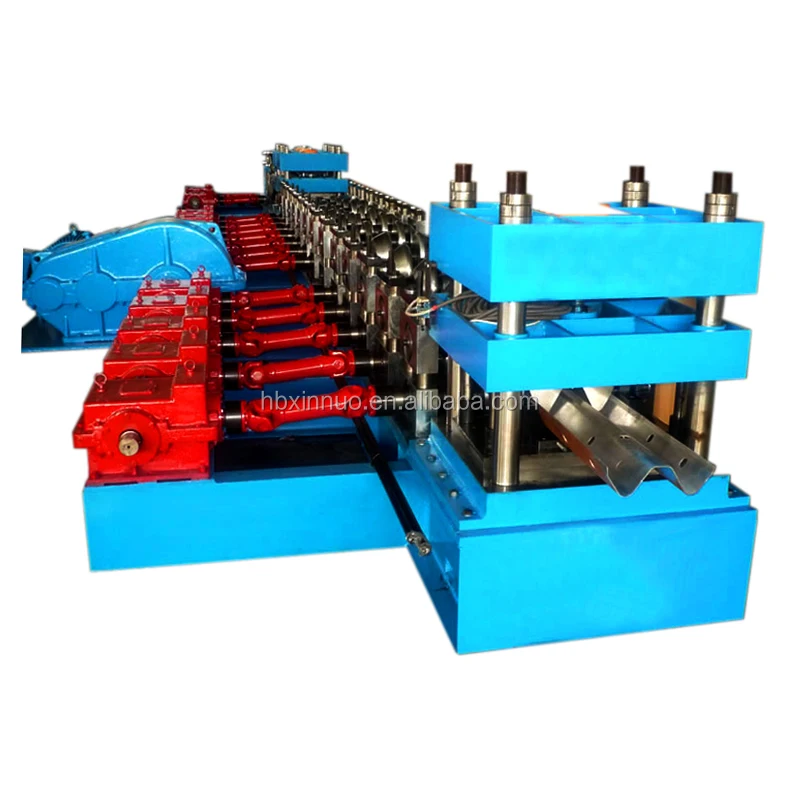

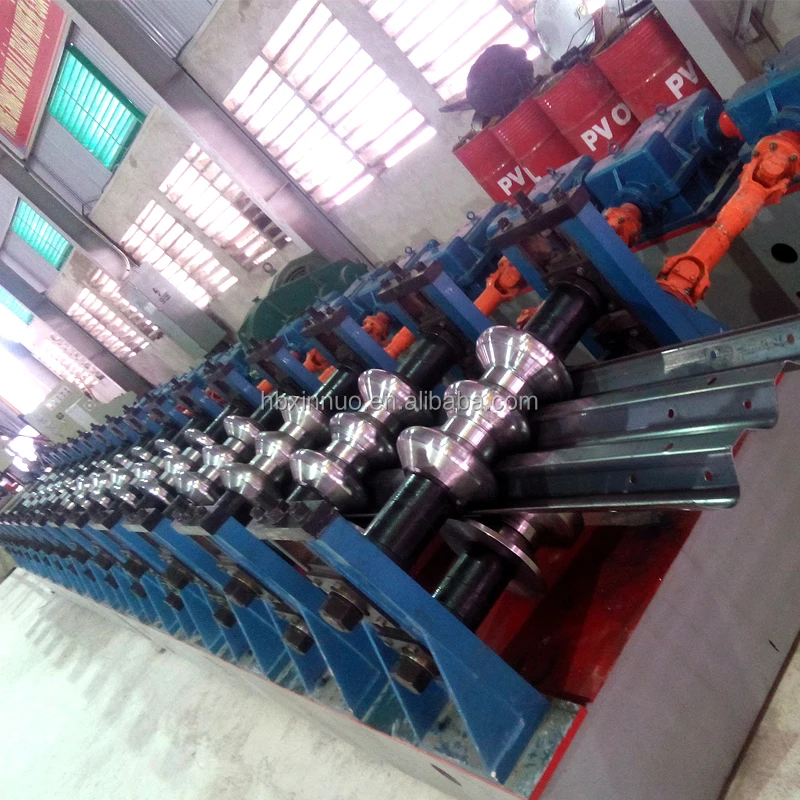

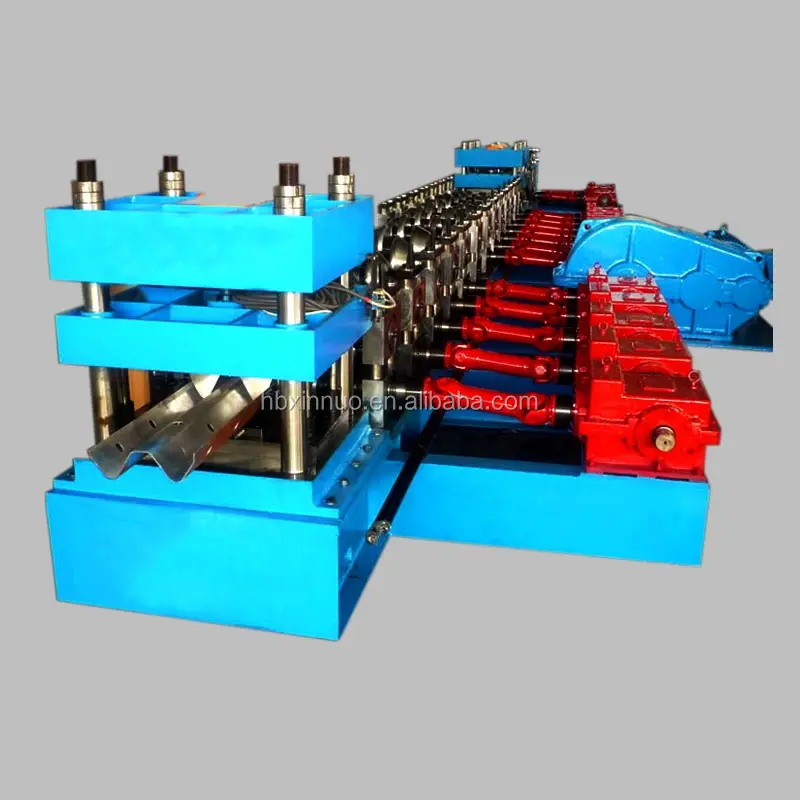

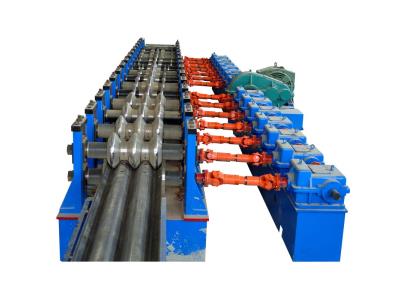

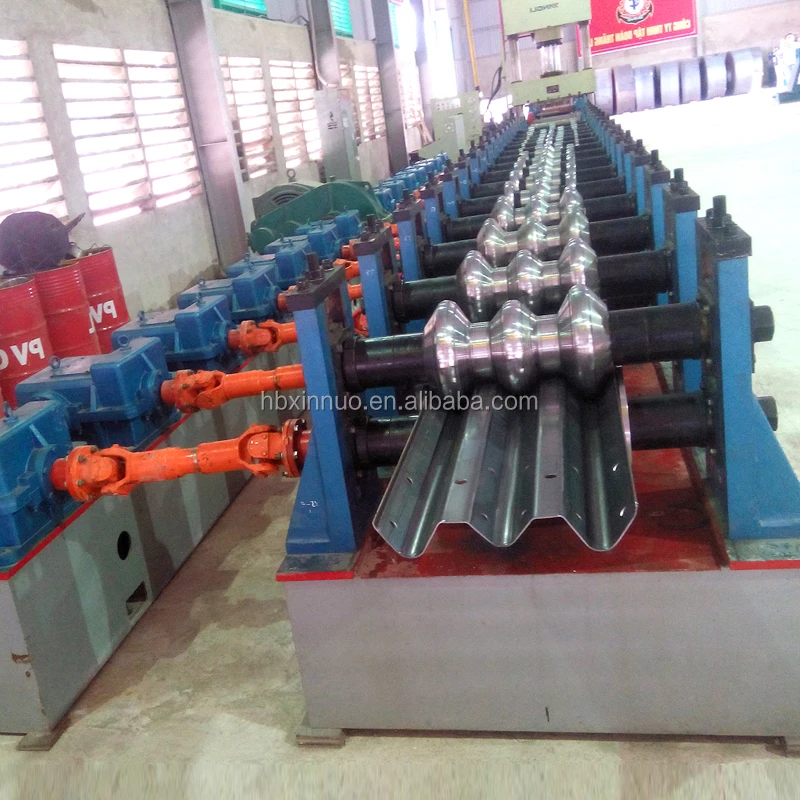

highway guardrail machine end wing manufacturing cold roll forming machine
Inquire Now#### **Description**
The highway guardrail machine end wing manufacturing cold roll forming machine is a state-of-the-art equipment designed for the production of end wings for highway guardrails. This machine utilizes advanced cold roll forming technology to ensure precision and efficiency in the manufacturing process. It is ideal for companies looking to enhance their production capabilities with a reliable and high-performance solution. The machine is equipped with a powerful motor and hydraulic systems that streamline operations, making it suitable for various manufacturing environments.
#### **Specifications**
| Parameter | Value |
|---|---|
| Main Motor Power | 18.5KW |
| Hydraulic Station Power | 11KW |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-50.8 |
| Roller Station | 16 |
| Yield Strength | 32MPa |
| Diameter of Principal Axis | 95MM |
| Material of Roller | 45# steel hard chrome plating |
| Processing Speed | 8m/min |
| Thickness | 0.3-4mm |
| Installation Dimension (L*W*H) | 10.5*1.4*1.2M |
| Material of Blade | Cr12 |
| Total Weight | 10T |
| Equipment Parts Includes | 5T decoiler, roll forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter |
#### **Additional Information**
The machine operates through a streamlined workflow process that includes Decoiler, Roll Forming, PLC System, Hydraulic System, Cutting, and Output Table. This ensures efficient production while maintaining high standards of quality.
