highway guardrail machine end wing manufacturing cold roll forming machine
Inquire Now#### **Description**

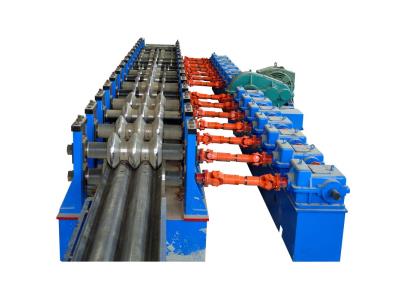

The highway guardrail machine end wing manufacturing cold roll forming machine is a state-of-the-art solution designed for efficient production of end wings for highway guardrails. This machine utilizes advanced cold roll forming technology, ensuring precision and quality in the manufacturing process. With a robust build and a range of technical parameters tailored to user specifications, it is ideal for manufacturers seeking to enhance their capabilities in highway safety infrastructure. The machine features a powerful main motor and hydraulic system, ensuring high efficiency and reliability for continuous operation.
#### **Specifications**
| Feature | Specification |
|---|---|
| Main Motor Power | 18.5KW |
| Hydraulic Station Power | 11KW |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-50.8 |
| Roller Station | 16 |
| Yield Strength | 32MPa |
| Diameter of Principal Axis | 95MM |
| Material of Roller | 45# Steel Hard Chrome Plating |
| Processing Speed | 8m/min |
| Thickness | 0.3-4mm |
| Installation Dimension (L*W*H) | 10.5*1.4*1.2M |
| Material of Blade | Cr12 |
| Total Weight | 10T |
| Equipment Parts | 5T Decoiler, Roll Forming Machine, Hydraulic Cutter, Hydraulic Station, Electric Controlling System, Counter |
#### **Additional Information**

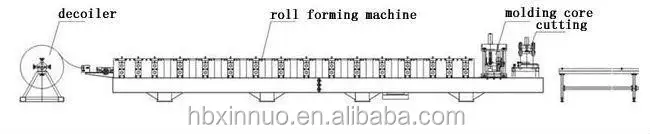

The workflow of the machine includes the following steps: Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table.
