highway guardrail machine end wing manufacturing cold roll forming machine
Inquire NowDescription
The highway guardrail machine end wing manufacturing cold roll forming machine is a state-of-the-art equipment designed to produce high-quality guardrail components with precision and efficiency. This machine is engineered to meet the rigorous demands of the highway safety industry, ensuring that end wings for guardrails are manufactured with optimal durability and strength. It features advanced technology that allows for seamless operation and adaptability to various production needs, making it a vital addition for manufacturers in the sector.
Specifications
| Parameter | Value |
|---|---|
| Main motor power | 18.5KW |
| Hydraulic station power | 11KW |
| Hydraulic oil pump | CB-E310 |
| Sprocket | P-50.8 |
| Roller station | 16 |
| Yield strength | 32MPa |
| Diameter of principal axis | 95MM |
| Material of roller | 45# steel hard chrome plating |
| Processing speed | 8m/min |
| Thickness | 0.3-4mm |
| Installation dimension (L*W*H) | 10.5*1.4*1.2M |
| Material of blade | Cr12 |
| Total weight | 10T |
| Equipment parts includes | 5T decoiler, roll forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter |
Additional Information
The workflow of the machine includes the following steps: Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table. This streamlined process ensures high efficiency and productivity, making it an excellent choice for manufacturers focused on quality and speed.

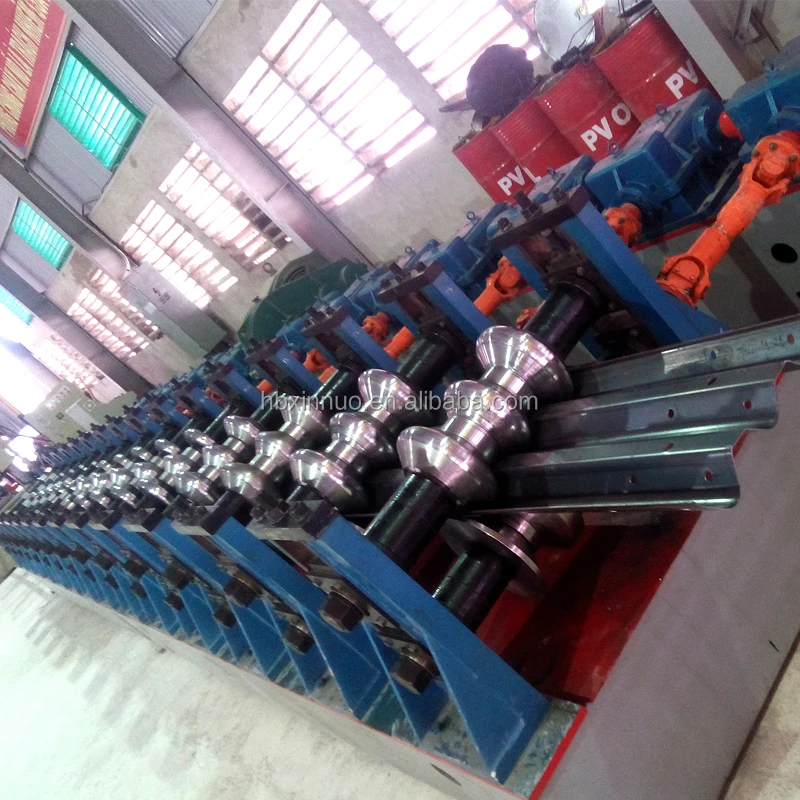

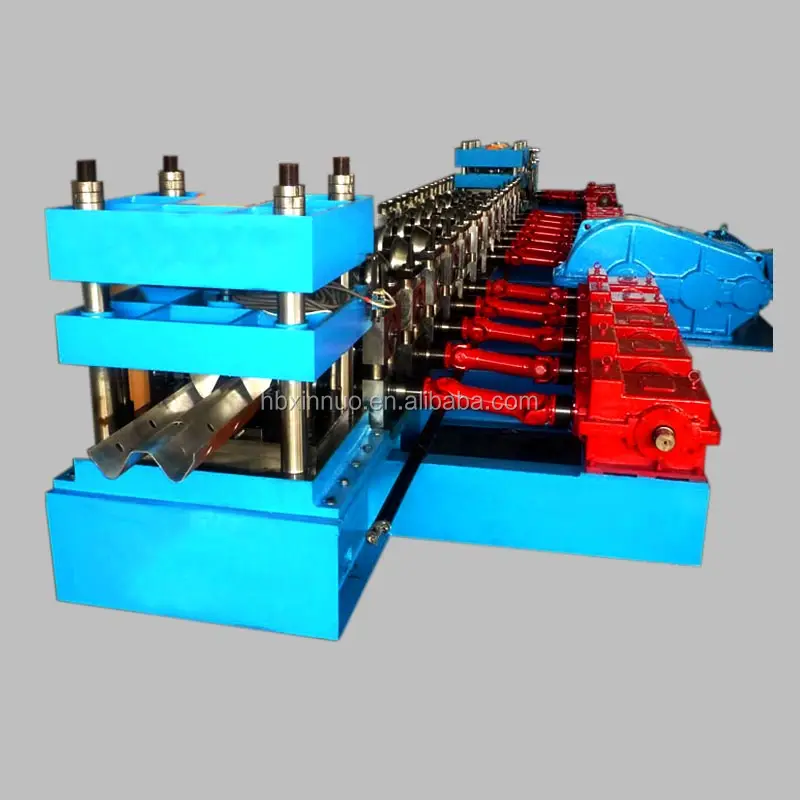

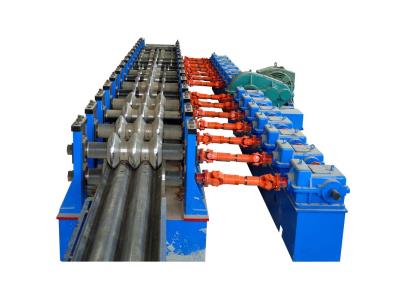

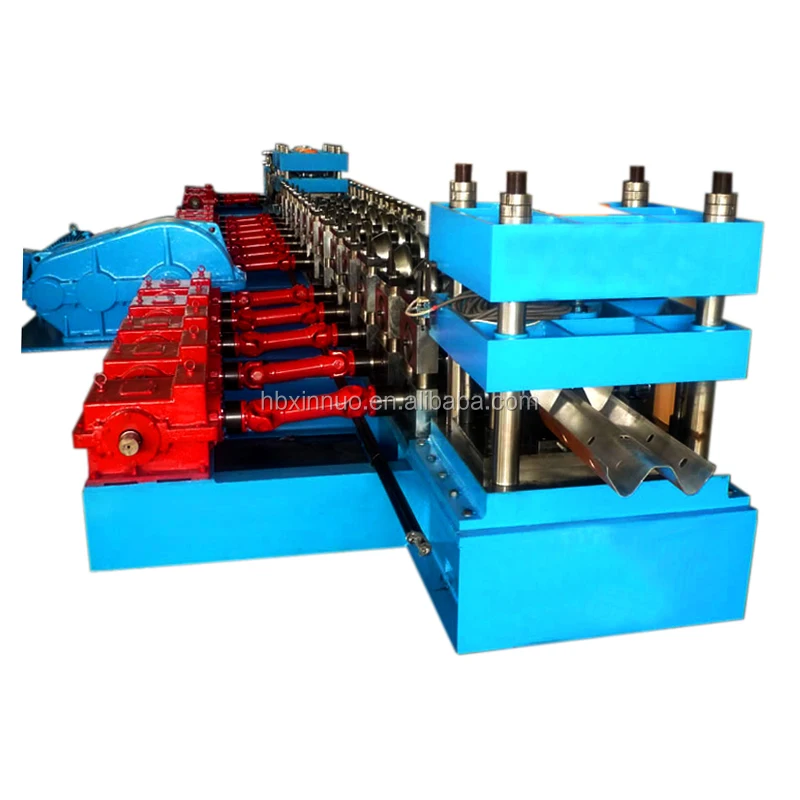

Product Images
