The Highway Guardrail Mini HX26/36 is an advanced hydraulic highway guardrail installation mini pile driver, designed for efficiency in solar power station construction. Powered by a Weichai Power engine delivering 36.8 kW (about 50 horsepower, National III) or a Faw Xichai Engine with 33 kW (National II), this robust machine promises reliable performance. Its innovative design features a pure aluminum radiator that integrates both water and oil systems, ensuring optimal operation.
Built with a Hefei Changyuan hydraulic gear pump, the mini pile driver utilizes a double chain drive complemented by a clutch for towing capabilities. The hydraulic folding longitudinal guide rail, along with double cylinder hydraulic adjustment on slopes, enhances its versatility and ease of use. Additionally, the horizontal guard rail is crafted from imported wear-resisting steel plate, reinforced with a wear-resisting alloy ring for durability.

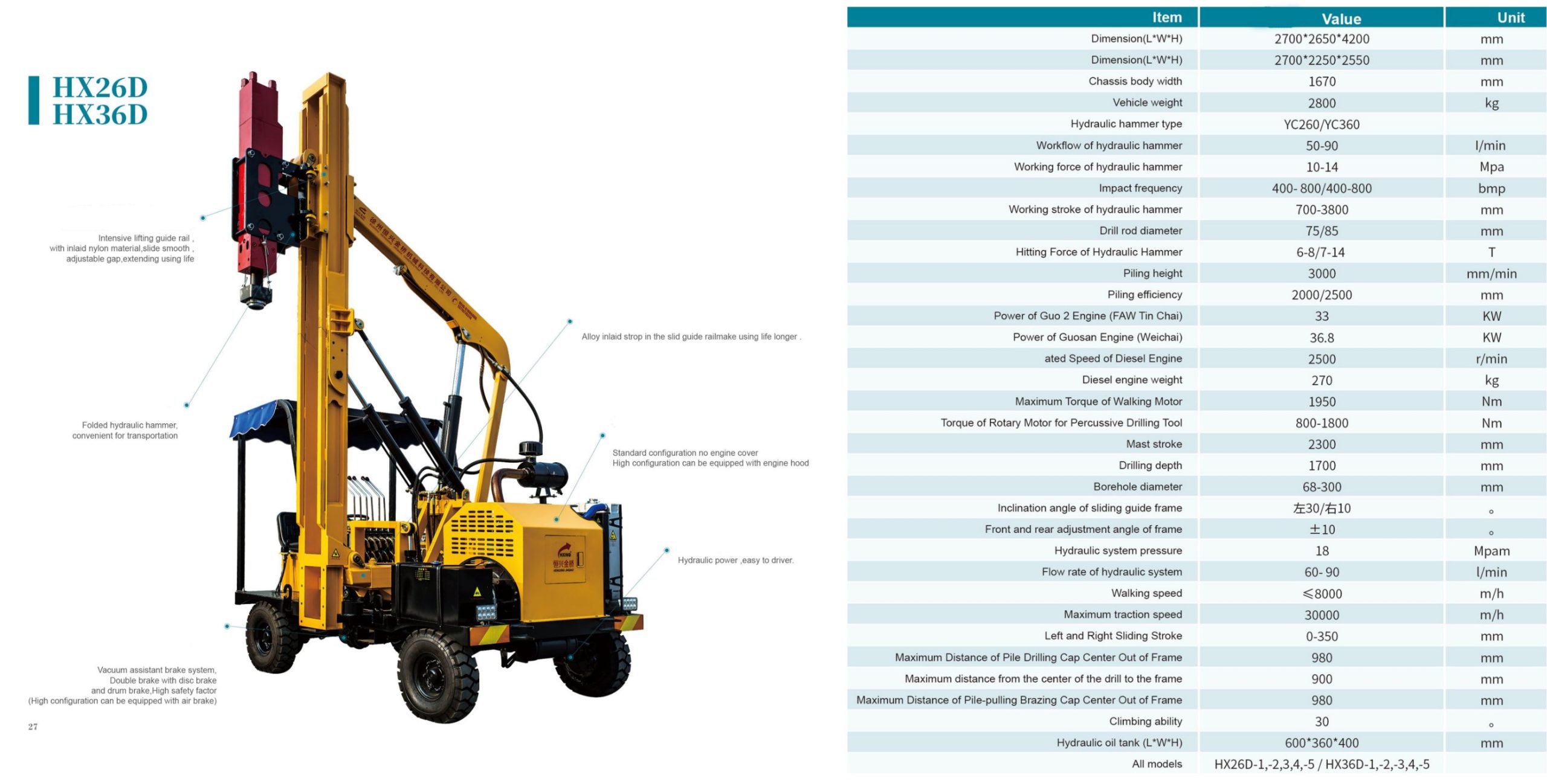

Specifications
| Attribute | Details |
|---|---|
| Engine Type | Weichai Power engine (36.8 kW) / Faw Xichai Engine (33 kW) |
| Power | About 50 horsepower (National III) / 33 kW (National II) |
| Radiator | Pure aluminum radiator (water and oil integration) |
| Hydraulic Pump | Hefei Changyuan Hydraulic gear pump |
| Drive | Double chain drive with clutch for towing |
| Adjustments | Hydraulic folding longitudinal guide rail, double cylinder hydraulic adjustment on slope |
| Guard Rail Material | Imported wear-resisting steel plate |
| Reinforcement | Wear-resisting alloy ring |
Additional Information
- Best choice for solar power station construction.
- 1-year warranty on the main machine (excluding hammer); all broken accessories can be exchanged for new ones during the warranty period.
- Installation and operation videos provided.
- Lead time: 3 days; shipping method: by sea.
- Payment terms: T/T or L/C at sight.
