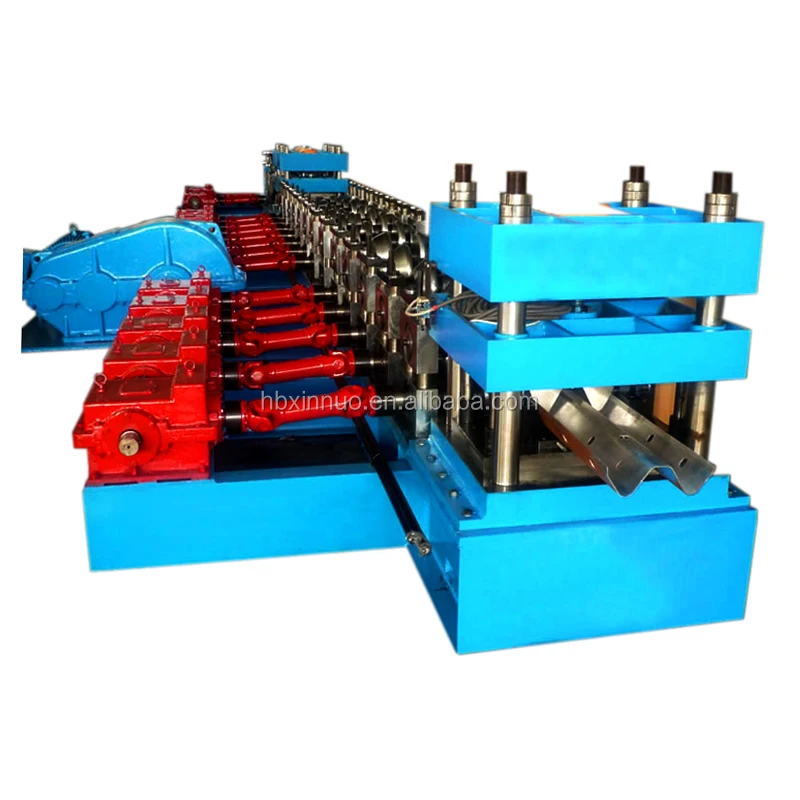

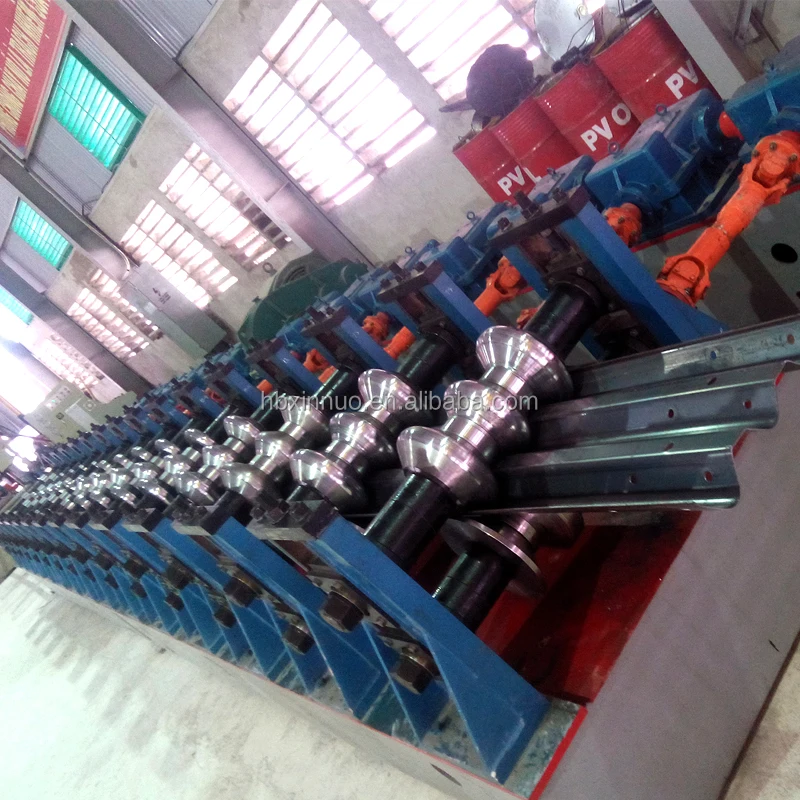

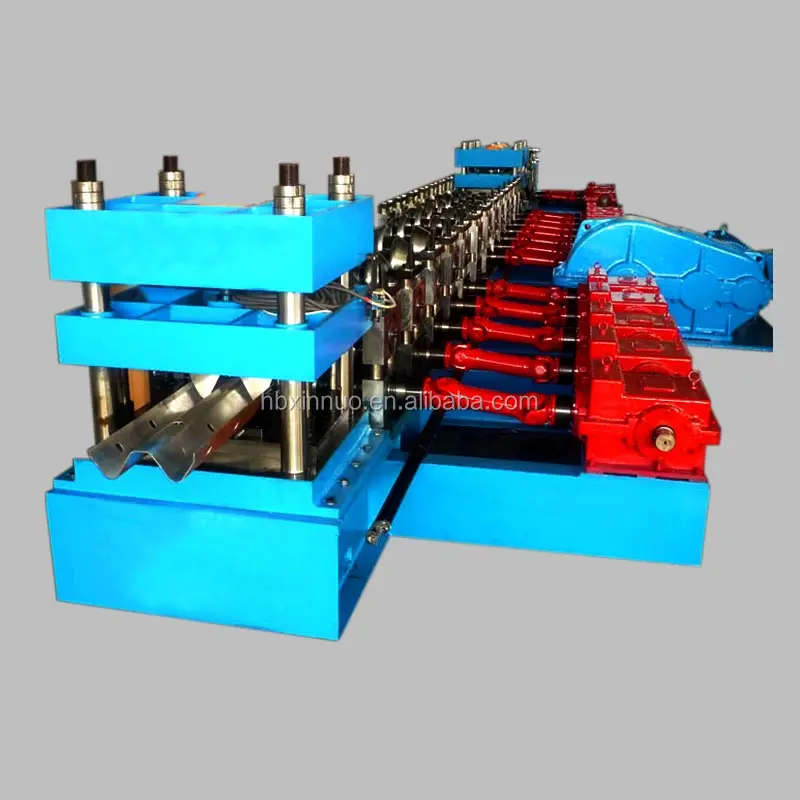

highway guardrial roll forming machine roll forming profile steel machine roof sheet roll

Inquire Now

Highway Guardrail Roll Forming Machine is a state-of-the-art solution for efficiently producing high-quality guardrail profiles. Designed for the production of various steel profiles, the machine boasts exceptional durability and precision, making it an essential tool for manufacturers in the construction and road safety industries. With advanced technology, this machine ensures consistent performance and reliability, enabling users to meet production demands effectively.

Specifications

No. Specification Details
1 Main motor power 18.5KW
2 Hydraulic station power 11KW
3 Hydraulic oil pump CB-E310
4 Sprocket P-50.8
5 Roller station 16
6 Yield strength 32MPa
7 Diameter of principal axis 95MM
8 Material of roller 45# steel hard chrome plating
9 Processing speed 8m/min
10 Thickness 0.3-4mm
11 Installation dimension (L*W*H) 10.5*1.4*1.2M
12 Material of blade Cr12
13 Total weight 10T
14 Equipment parts includes 5T decoiler, roll forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter.

Product Workflow

Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table

Product Overviews

Product Overview 1

Product Overview 2

Product Overview 3

Product Overview 4

Product Overview 5
