highway guardrial roll forming machine roll forming profile steel machine roof sheet roll

Inquire Now

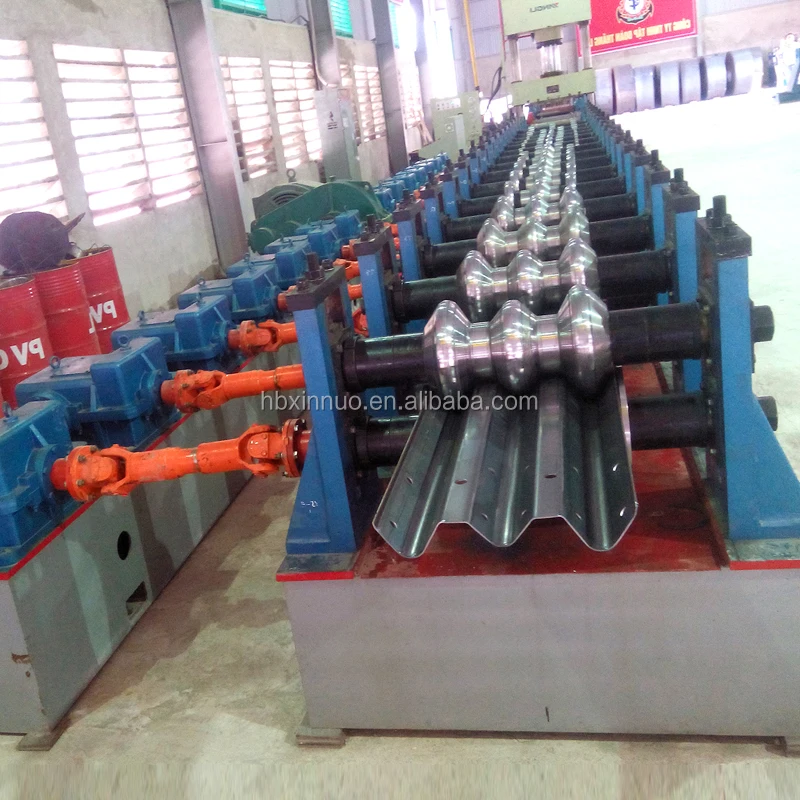

Highway Guardrail Roll Forming Machine is a state-of-the-art equipment designed for manufacturing highway guardrails and roof sheets. Built with precision engineering, this machine efficiently produces high-quality steel profiles with a focus on durability and performance. The roll forming process ensures that each product meets stringent quality standards, making it ideal for road safety applications. The machine is equipped with advanced technology to facilitate smooth operation and maintain high production speeds. Its robust design allows it to handle various steel materials, ensuring versatility in production.

Specifications

Parameter Specification
Main Motor Power 18.5 kW
Hydraulic Station Power 11 kW
Hydraulic Oil Pump CB-E310
Sprocket P-50.8
Roller Station 16
Yield Strength 32 MPa
Diameter of Principal Axis 95 mm
Material of Roller 45# Steel Hard Chrome Plating
Processing Speed 8 m/min
Thickness 0.3 – 4 mm
Installation Dimensions (L*W*H) 10.5 * 1.4 * 1.2 m
Material of Blade Cr12
Total Weight 10 t
Equipment Parts Includes 5T decoiler, roll forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter.

Additional Information

The workflow of this machine includes the following steps: Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table. This streamlined process ensures efficient manufacturing and high productivity.
