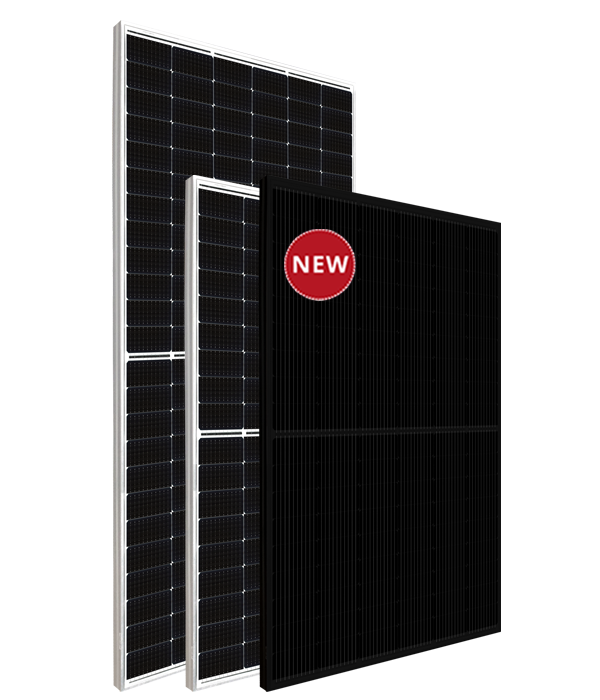

HiKu6 High Power Mono PERC Solar Module
Inquire NowDescription
The HiKu6 High Power Mono PERC Solar Module is engineered to deliver exceptional performance with its advanced dual-cell technology. Designed for efficiency, it features a compact form factor with dimensions of 1722 x 1134 x 30 mm for the CS6R model and 2261 x 1134 x 35 mm for the CS6W model, yielding power outputs ranging from 400 to 555 W. With a wafer size of 182 mm and a module efficiency of up to 21.6%, this module promises a significant energy yield throughout its lifetime, boasting a 2.7% increase in energy production compared to standard models.
Key features include higher wattage capabilities, reduced balance of system (BOS) costs, and lower levelized cost of energy (LCOE). The module is designed with comprehensive LID/LeTID mitigation technology, ensuring up to 50% lower degradation over time. Enhanced reliability is achieved through compatibility with mainstream trackers and improved shading tolerance, making it an ideal choice for utility-scale power plants.
Specifications
| Attribute | Details |
|---|---|
| Cell Type | Mono-crystalline |
| Dimensions | 2261 x 1134 x 35 mm (89.0 x 44.6 x 1.38 in) |
| Weight | 27.8 kg (61.3 lbs) |
| Max. System Voltage | 1500V (IEC/UL) or 1000V (IEC/UL) |
| Operating Temperature | -40°C ~ +85°C |
| Module Fire Performance | CLASS C (IEC 61730) |
| Power Tolerance | 0 ~ +10 W |
| Front / Back Glass | 3.2 mm tempered glass |
| Frame | Anodized aluminium alloy, crossbar enhanced |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4 mm² (IEC) |
Additional Information
For optimal performance, the HiKu6 solar module is equipped with optimized cable lengths to reduce energy loss. It is available in configurable lengths for customized installations. The module’s connection can be made using T4 series or MC4-EVO2 connectors, ensuring compatibility and ease of installation.
