HoldPeak HP-7200A 2000 Counts Digital Clamp Multimeter AC Current Voltag Current NCV
Inquire NowDescription

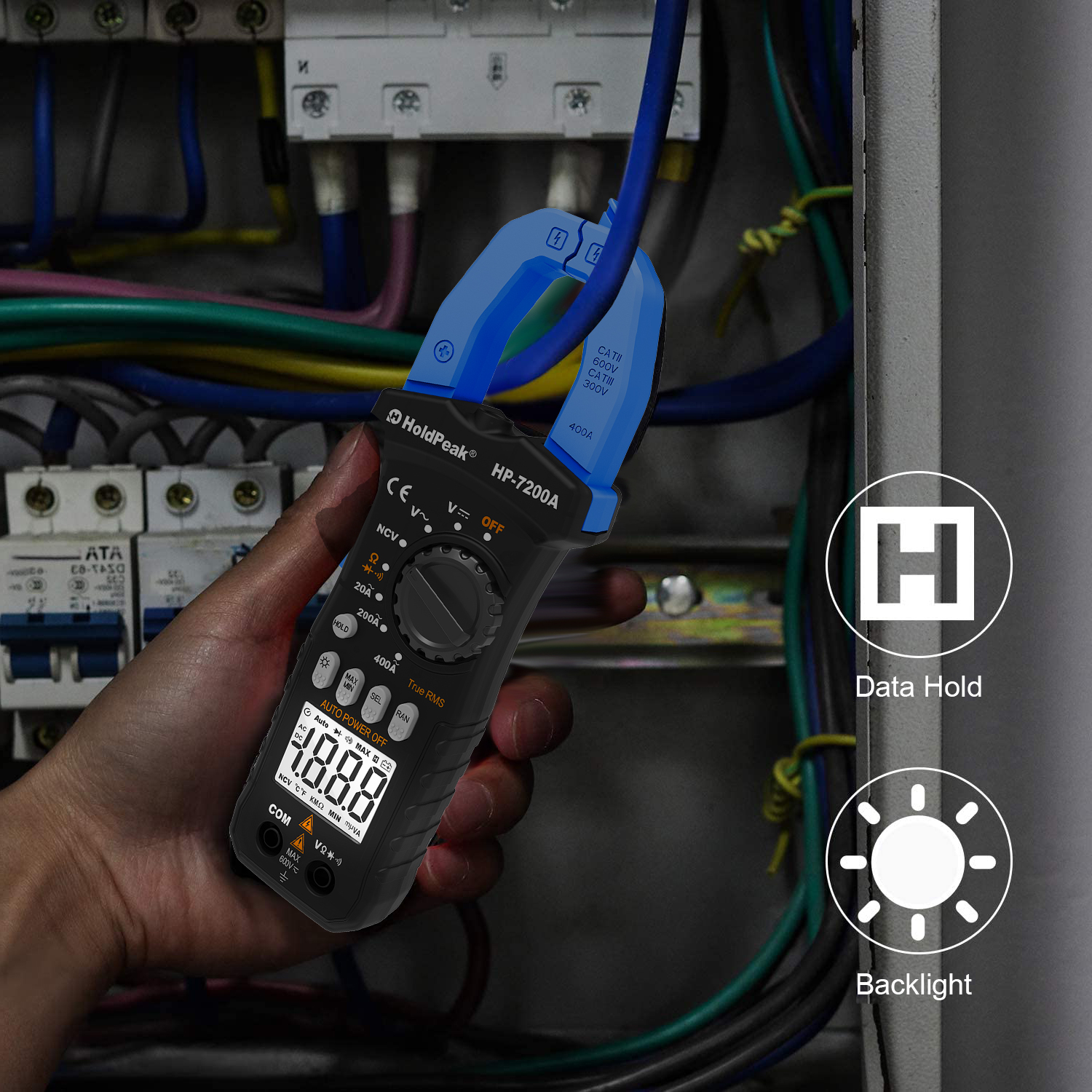

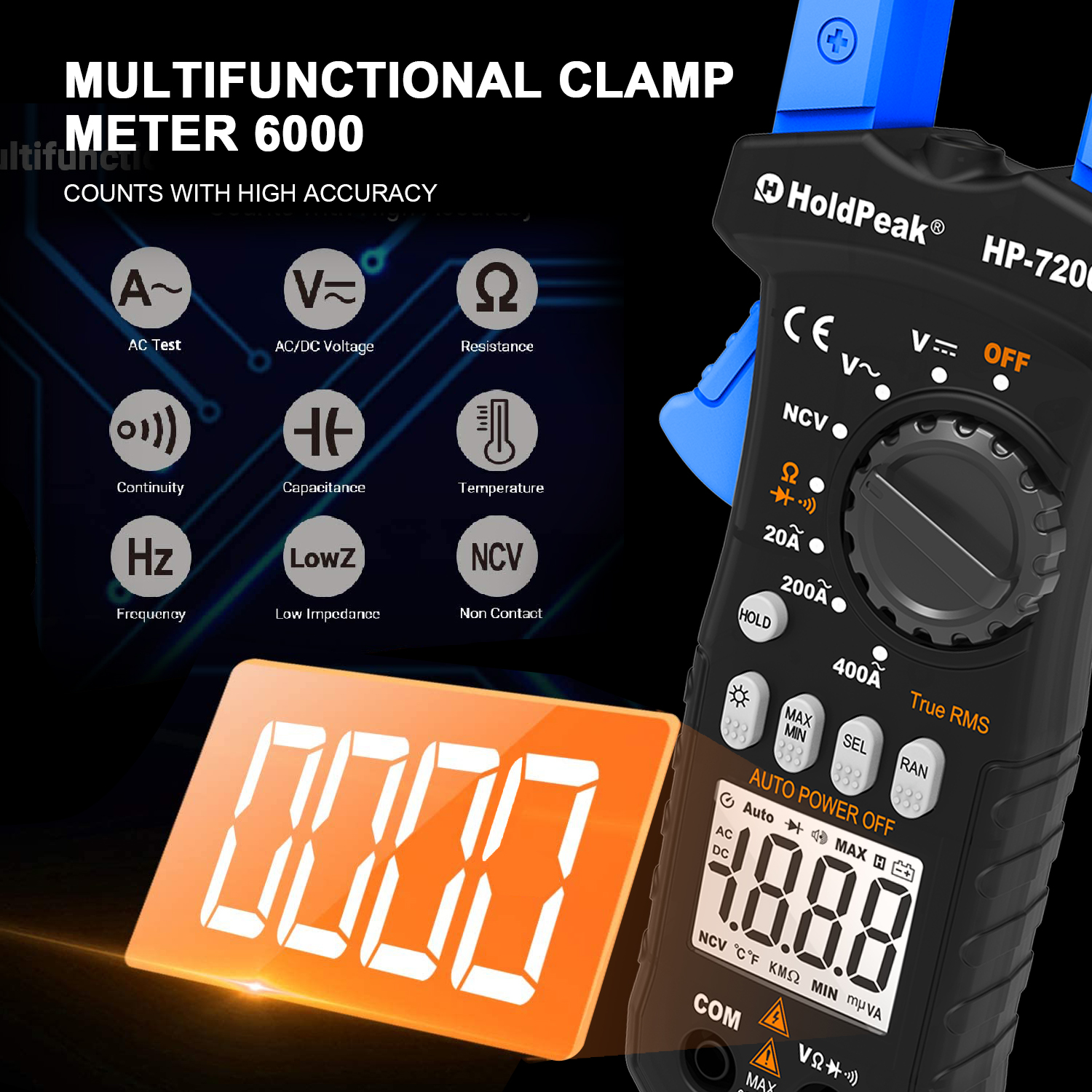

The HoldPeak HP-7200A is a versatile digital clamp multimeter designed for both professionals and DIY enthusiasts. With its ability to measure AC current, voltage, and resistance, this mini multimeter is an essential tool for electrical diagnostics and testing. The HP-7200A features a robust design with a jaw caliber of 26mm, allowing it to easily clamp around wires and conductors. Its advanced features, including auto NCV (non-contact voltage detection), data hold, and a backlight display, make it user-friendly and efficient for a variety of electrical tasks.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | HoldPeak |
| Model Number | HP-7200A |
| Measuring Voltage Range | 2V-300V |
| Measuring Resistance Range | 200Ω-20MΩ |
| Display Type | Digital Only |
| DC Voltage | 200mV-600V |
| AC Voltage | 2V-300V |
| DC Current | No |
| AC Current | 20A~400A |
| Resistance | 200Ω-20MΩ |
| Capacitance | No |
| Temperature | No |
| Frequency | No |
| Duty | No |
| Display | 2000 Counts |
| Jaw Caliber | 26mm |
| DIY Supplies | ELECTRICAL |
| Origin | CN(Origin) |
Additional Information
For optimal usage, ensure that the multimeter is calibrated correctly before each use. This device features an auto power-off function to conserve battery life, making it perfect for fieldwork.
