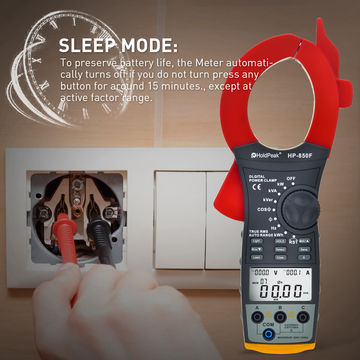

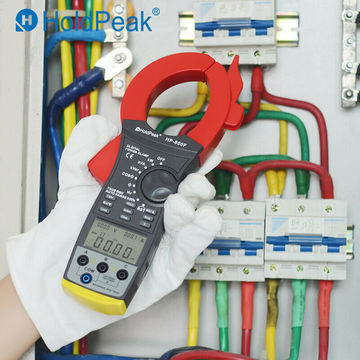

Holdpeak HP-850F Intelligent Digital Three-Phase Power Clamp Table Data
Inquire NowDescription
The HoldPeak HP-850F Intelligent Digital Three-Phase Power Clamp Meter is a high-quality tool designed for precision measurements in various settings, including fields, laboratories, shops, and home applications. With its advanced digital LCD display, this clamp meter provides an array of functionalities to measure AC/DC voltage, resistance, and perform audible continuity tests. Engineered for efficiency and user-friendliness, the HP-850F features automatic ranging, ensuring accurate readings across a broad spectrum of electrical parameters.
Specifications
| Feature | Details |
|---|---|
| Brand Name | HoldPeak |
| Model Number | HP-850F |
| Measuring Current Range | 40A~1000A |
| Measuring Voltage Range | 15V~600V |
| Dimensions | 275 x 120 x 33 mm |
| Weight | Approx. 601g |
| Display | 9999 |
| Range Select | Auto Ranging |
| Active Power | 0.01KW~600KW |
| Apparent Power | 0.01KWA~600KWA |
Additional Information
- AC Voltage + Frequency Measurement
- AC Current + AC Voltage Measurement
- Active Power + Phase Angle Measurement
- Apparent Power + Reactive Power Measurement
- Power Factor + Phase Angle Measurement
- Active Energy + Time Measurement
- Phase Angle + Voltage + Current
- Frequency + Voltage + Current
- Active Energy + Active Power + Time Phase Sequence Detection
